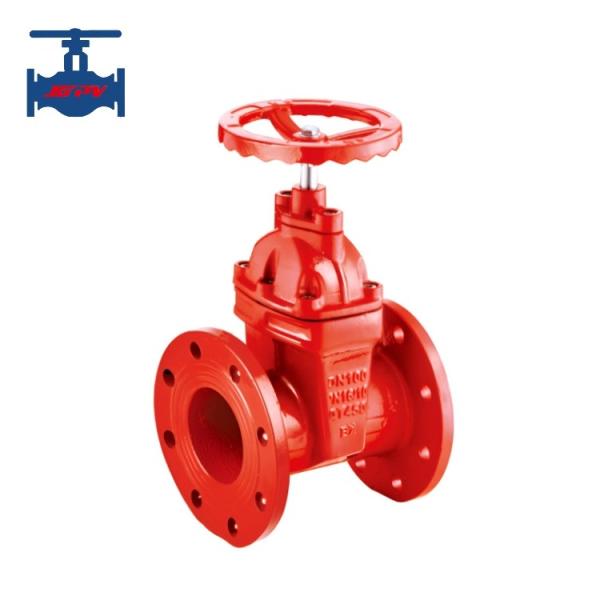

Non Rising Stem Resilient Seated Gate Valve Ductile Iron For Fire Fighting
Non Rising Stem Resilient Seated Gate Valve Ductile Iron For Fire Fighting
Specifications
Brand Name :
JGPV
Model Number :
Z45X-JGPV
Place of Origin :
China
MOQ :
1 Set
Price :
USD29.9/Set - USD1299.9/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set per month
Delivery Time :
One week
Packaging Details :
Plywood box safety packing
Standard or Non-standard :
Standard
Application :
General
Product features :
Fire fighting pipeline valve
Purpose :
Water pipeline opening and closing
Working temperature :
Normal temperature
Pressure application :
Normal pressure
Manufacturing craft :
Casting
Body material :
Ductile iron
Test standard :
Strength test and sealing test and client requirement
Quality warranty :
18 months
Description

Ductile Iron Non-Rising Stem Resilient Seated Gate Valve For Fire Fighting Use

Product introduction:

Resilient seat sealed gate valve is a type of soft sealed gate valve, which is an industrial valve of elastic gate valve. Its opening and closing component is the gate, and the direction of the gate's movement is perpendicular to the direction of the fluid. The gate valve can only be fully open and fully closed, and cannot be adjusted or throttled.

Soft sealed gate valve is a replacement product of traditional gate valve, which utilizes the compensation effect of elastic gate plate to produce slight deformation and achieve good sealing effect. This valve has significant advantages such as lightweight switch, reliable sealing, good elastic memory, and long service life. It can be widely used in fluid pipelines such as tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy systems, etc.

Product technical paramters:

Diameter nominal DN (mm) 40～600
Pressure nominal PN (MPa) 1.0～2.5
Test standard Strength test (MPa) 1.5 times of pressure nominal
Sealing test (MPa) 1.1 times of pressure nominal
Main Components Body Ductile iron
Bonnet Ductile iron
Stem 2Cr13
O type ring NBR
Seal NBR
Gland Ductile iron
Disc Ductile iron wrapped by NBR
Medium suitable Water
Working temperature 0℃～80℃
Connection type Flange

Product features:

1.High quality rubber is adopted for the internal and external encapsulation of valve, and the connection between rubber and valve is reliable and not easy to fall off;

2.As three "O"-shaped rings are designed on valve rod, the friction resistance of switch can be reduced and water leakage can be decreased significantly;

3.Corrosion resistance.
