Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe
Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe
Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe
Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe
Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe
Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe
Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe
Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe
Specifications
Brand Name :
BHY
Model Number :
SFM0206P
Certification :
ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T,
Supply Ability :
1000 sets/year
Delivery Time :
30-45 work days
Packaging Details :
Aluminum case, wooden case or metal packing case
Model :
SFM0206P
Drive Mode :
Pneumatic
Material :
High-strength aeronautical aluminum
Business Parters :
CNPC, SINOPEC, CNOOC etc.
Certificates :
CU-TR, CE, ISO14001,ISO18001,ISO9001
Beveling tools :
Clip-type, ordinary beveling tools
Application Range (O.D.) :
2" - 6" (60.3-168.3mm)
Wall Th. :
≤30mm
Description

Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe

Product Introduction

SFM series machines are available to cut, bevel, counterbore, drill and mill pipes from 2 inch - 84 inch O.D. (50-2133.6mm) on all diameter of carbon steel, stainless steel, and various types of alloy pipes. They are widely used in nuclear power, thermal power, petroleum, chemical plant, natural gas, boiler plant, pharmaceutical factory and other areas.

Product Features

■ Split frame technology, easy to install in the pipeline;

■ Out-mounted, clamping by multipoint jaws;

■ Cold cutting, don’t influence the pipe’s material;

■ Auto feed, cut and bevel the pipe at the same time, cost-effective;

■ Three types of drive motors: electric, pneumatic and hydraulic;

■ Can process material: carbon steel, alloy steel, stainless steel etc.

■ Precise cutting and beveling tools with high efficiency and long service life.

Specifications

Model SFM0206P
Drive Mode Pneumatic
Air Requirements 2-3m³/min
Application Range (O.D.) 2"-6"
Wall Thickness ≤30mm
Net Weight 35kg
Feed Method Star wheel system
Feed 0.08mm/r
All standard accessories included

Beveling type

Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe

Models

Model

Processing

range (in)

Max wall

thickness (mm)

 Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric
SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic
SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.

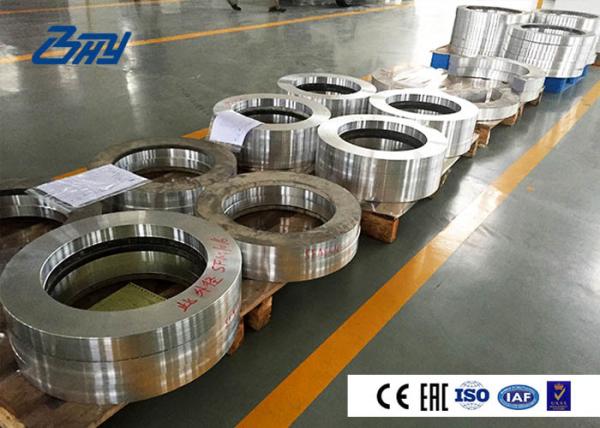

Manufacture

Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For PipeSplit OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe

Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe

Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For PipeSplit OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe

Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe

Split OD - Mounted Pneumatic Cold Cutting Machine , Portable Cold Cutters For Pipe

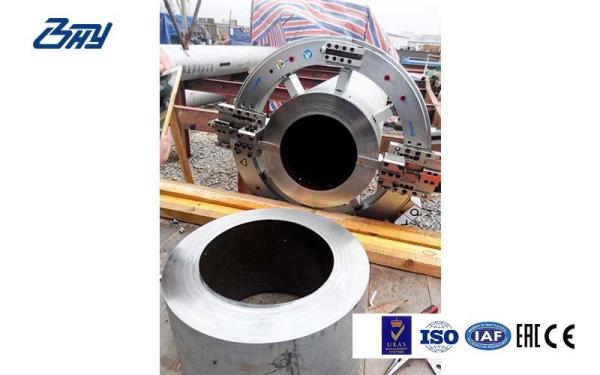

Working On Site
