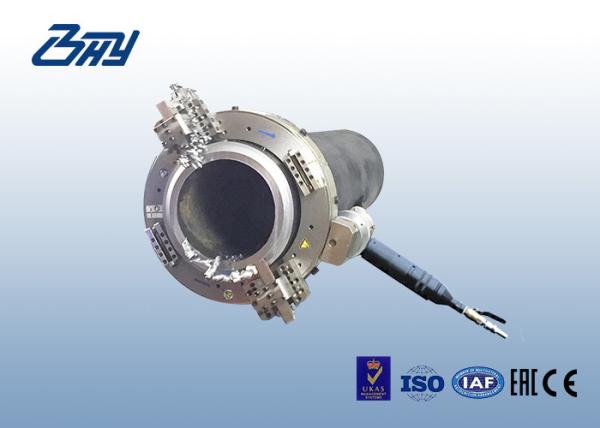

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
Specifications
Brand Name :
BHY
Model Number :
SFM0612P
Certification :
ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin :
Suzhou, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/year
Delivery Time :
15-30 work days
Packaging Details :
Aluminum case, wooden case or metal packing case
Model :
SFM0612P Stainless Steel Pipe Beveling Machine
Working Range :
6"-12"(168.3-323.9mm)
Drive Mode :
Pneumatic
Feed :
0.08mm/r
Package :
Aluminum alloy, metal packing case or wooden box
Brand :
Bohyar
Application :
Nuclear power, thermal power, chemical plant, natural gas, boiler plant, pharmaceutical factory
Description

6in - 12in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System

Pipe Beveling Machine Introduction

This machine, pipe cutting and bevelling machine adopts the planet gear decelerator to moderate, the awl gear wheel transmission of arc tooth rotates the round ring tooth to enclose, the main frame Can separated it for two; Cut and bevel machine is suitable for the tube to cut off; Knife rest slippery platform the knife moves automatically, can finish cutting, slope mouth meanwhile; It is simple to operate, it is safe and reliable

Pipe Beveling Machine Application

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Pipe Beveling Machine Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Pipe Beveling Machine Specification

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz

■ Feed mode: Star wheel, automatically

■ Feed rate: Fixed@0.08mm per circle

■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

SFM Tools

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

Models Dimension

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Model

A (mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

G(mm)

SFM0206

176

70

122

176

225

253

164

SFM0408

228

70

122

176

225

253

164

SFM0612

332

70

122

176

225

253

164

SFM0814

364

70

122

176

225

253

164

SFM1218

468

70

122

176

225

253

164

SFM1420

518

70

122

176

225

253

164

SFM1824

622

102

98

176

235

253

174

SFM2026

674

102

98

176

235

253

174

SFM2430

776

102

98

176

235

253

174

SFM2632

826

102

98

176

235

253

174

SFM3036

928

102

98

176

235

253

174

SFM3238

1006

102

98

176

235

253

174

SFM3642

1082

102

98

176

235

253

174

SFM4248

1236

102

98

176

235

253

174

SFM3648

1296

140

220

276

235

253

174

SFM4860

1600

140

220

276

235

253

174

SFM6072

1905

140

220

276

235

253

174

SFM7284

2210

140

220

276

235

253

174

Manufacture

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame

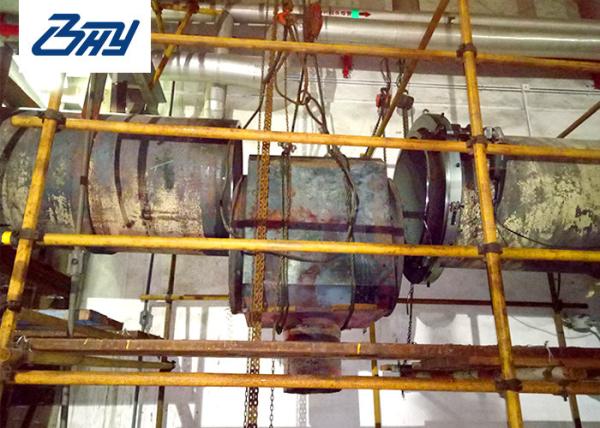

Working on site

6in - 12 in Pneumatic Stainless Steel Pipe Beveling Machine Adjustable Bearing System Split Frame
