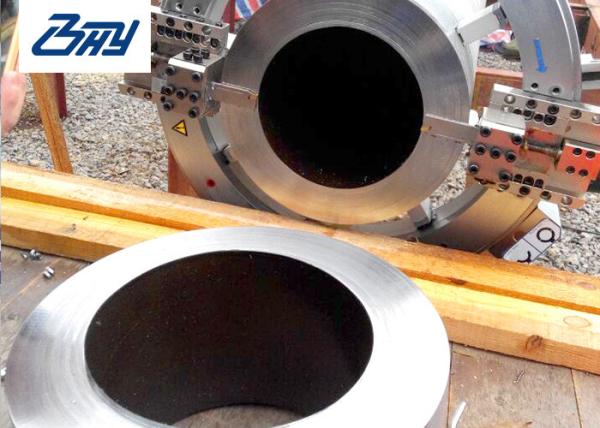

12in - 18in Portable Pipe Cutting And Beveling Machine For Oil , Natural gas

Portable Pipe Cutting And Beveling Machine characters

1) The light makes the machine is a perfect tool with a small clearance of radial.

2) The simple design reduces the complexity by 40% and improves the compatibility.

3) The Cold Pipe Cutting And Beveling Machine can cut the pipe with 600MM diameter.

4) Adjustable pillow is combined with reinforced bottom pillow. They improve the dependability and serviceability.

5) Fix the system and button up the pipe easily.

6) The slid platform of blade adapter is high strength. The life of it is long. The accuracy is high.

Portable Pipe Cutting And Beveling Machine Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Portable Pipe Cutting And Beveling Machine Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Portable Pipe Cutting And Beveling Machine Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz

■ Feed mode: Star wheel, automatically

■ Feed rate: Fixed@0.08mm per circle

■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

SFM Tools

Models Dimension

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Manufacture

Working on site

■ Project: chemical plant repaire

■ Pipe material: 5CrMoR+00Cr19Ni10

■ Pipe O.D.: 1219mm, 350mm

■ Pipe thickness: 59mm, 30mm
