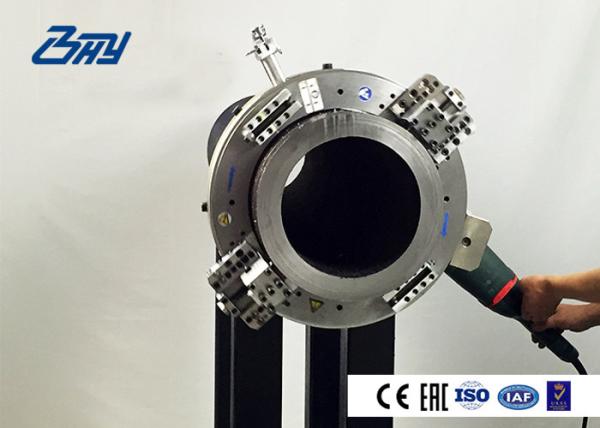

6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
Specifications
Brand Name :
BHY
Model Number :
SFM0206
Certification :
ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin :
Suzhou, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T,
Supply Ability :
1000 sets/year
Delivery Time :
5 work days
Packaging Details :
Aluminum case, wooden case or metal packing case
Name :
Portable Pipe Cold Cutting and Beveling Machine
Model :
SFM 0206
Working range :
2" - 6"(60.3-168.3mm)
Drive Mode :
Electric
Net weight :
35KG
Feed Method :
Star wheel system
Business parters :
CNPC, SINOPEC, CNOOC etc.
Material :
high-strength aeronautical aluminum
Description

6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal

Cold Pipe Cutting Beveling Machine Features

  1. Cold Cutting and Beveling improves safety
  2. Cutting and Beveling simultaneous
  3. Split Frame: easy mounted on pipeline
  4. Tools feed automatically
  5. Fast, Precision, On-site Beveling
  6. Minimal Axial and Radial clearance
  7. Light weight and compact design
  8. Easy set-up & Operation

Pipe Cutting And Beveling Machine Basic Info.

Model SFM0206
Drive Mode Electric
Electric Requirements 220V/AV, 50/60 Hz
Application Range (O.D.) 2" - 6"(60.3-168.3mm)
Wall Thickness ≤35mm
Net Weight 35kg
Feed Method Star wheel system
Feed 0.08mm/r
Cutting and beveling time 7.72min(Wall thickness:10mm)

Cold Pipe Cutting Beveling Machine Dimension

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Model

A(mm)

B(mm)

C(mm)

D (mm)

E (mm)

F (mm)

G

(mm)

SFM0206

176

70

122

176

225

253

164

SFM0408

228

70

122

176

225

253

164

SFM0612

332

70

122

176

225

253

164

SFM0814

364

70

122

176

225

253

164

SFM1016

416

70

122

176

225

253

164

SFM1218

468

70

122

176

225

253

164

SFM1420

518

70

122

176

225

253

164

SFM1824

622

102

98

176

235

253

174

SFM2026

674

102

98

176

235

253

174

SFM2430

776

102

98

176

235

253

174

SFM2632

826

102

98

176

235

253

174

SFM3036

928

102

98

176

235

253

174

SFM3238

1006

102

98

176

235

253

174

SFM3642

1082

102

98

176

235

253

174

SFM4248

1236

102

98

176

235

253

174

SFM3648

1296

140

220

276

235

253

174

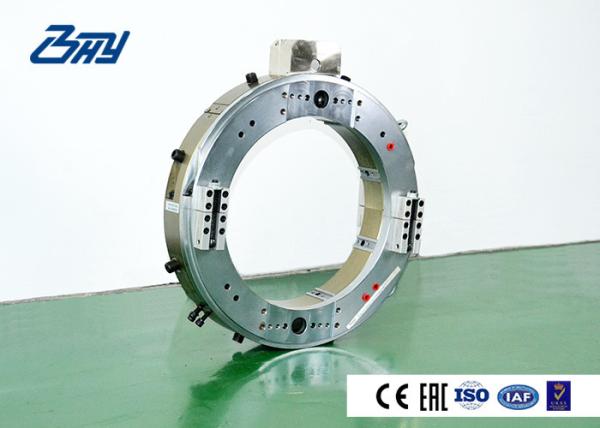

Cold Pipe Cutting Beveling Machine Manufacture

6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal

6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal

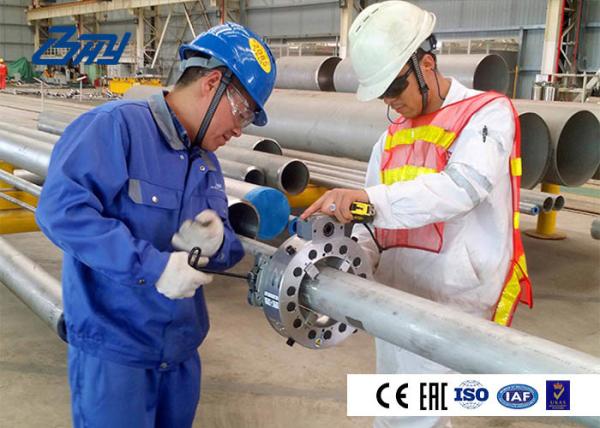

Cold Pipe Cutting Beveling Machine Working On Site

6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal
