Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Specifications
Brand Name :
BHY
Model Number :
SFM3036E
Certification :
ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/year
Delivery Time :
30-45 work days
Packaging Details :
Aluminum case, wooden case or metal packing case
Name :
Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
Application Range :
30" - 36"(762-914.4mm)
Drive Mode :
Electric
Feed :
0.08mm/r
Motor :
Metabo
Business parters :
CNPC, SINOPEC, CNOOC etc.
Material :
High-strength aeronautical aluminum
Wall Th. :
≤100mm
Net Weight :
159kg
Description

Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe

Cold Pipe Cutting Beveling Machine Introduction

Each pipe cutting beveling machine within the Hydraulic series of clamshells is engineered to operate safely and accurately even in the most demanding environments and critical applications. The rugged fixed base, steel pinion gear and high bearing count within each machine result in a rugged combination ready to perform when called upon.

Cold Pipe Cutting Beveling Machine Basic Info.

Model SFM3036E
Drive Mode Electric
Electric Requirements 220V/AV
Application Range (O.D.) 30" - 36"
Wall Thickness ≤100mm
Net Weight 159kg
Feed Method Star wheel system
Feed 0.08mm/r
All standard accessories included

Cold Pipe Cutting Beveling Machine Bevel Type

We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.

We have several bevel type: v-shaped, y-shaped, compound shaped, compound j-shaped as well as j-shaped. Customized tools can be provided for processing bevels of other angles.

Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe

Cold Pipe Cutting Beveling Machine Features

■ Split frame technology, easy to install in the pipeline;

■ Out-mounted, clamping by multipoint jaws;

■ Cold cutting, don’t influence the pipe’s material;

■ Auto feed, cut and bevel the pipe at the same time, cost-effective;

■ Three types of drive motors: electric, pneumatic and hydraulic;

■ Can process material: carbon steel, alloy steel, stainless steel etc.

■ Precise cutting and beveling tools with high efficiency and long service life.

Models Dimension
Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model A (mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm)
SFM0206 176 70 122 176 225 253 164
SFM0408 228 70 122 176 225 253 164
SFM0612 332 70 122 176 225 253 164
SFM0814 364 70 122 176 225 253 164
SFM1218 468 70 122 176 225 253 164
SFM1420 518 70 122 176 225 253 164
SFM1824 622 102 98 176 235 253 174
SFM2026 674 102 98 176 235 253 174
SFM2430 776 102 98 176 235 253 174
SFM2632 826 102 98 176 235 253 174
SFM3036 928 102 98 176 235 253 174
SFM3238 1006 102 98 176 235 253 174
SFM3642 1082 102 98 176 235 253 174
SFM4248 1236 102 98 176 235 253 174
SFM3648 1296 140 220 276 235 253 174
SFM4860 1600 140 220 276 235 253 174
SFM6072 1905 140 220 276 235 253 174
SFM7284 2210 140 220 276 235 253 174

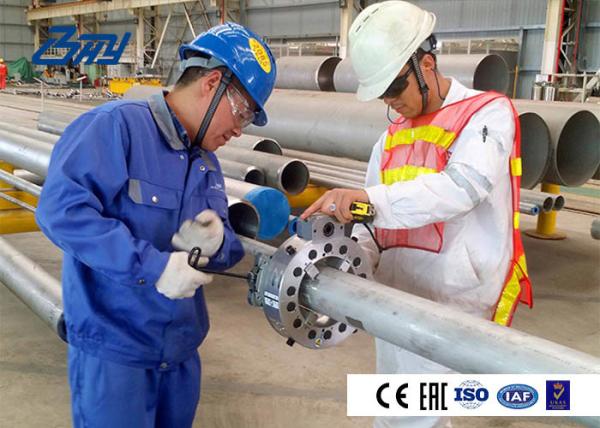

Working on site

■ Project: oil pipe underwater

■ Pipe material: X65+inconel 625

■ Pripe O.D. : 610 mm

■ Pipe thickness: 19+3 mm

Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe
