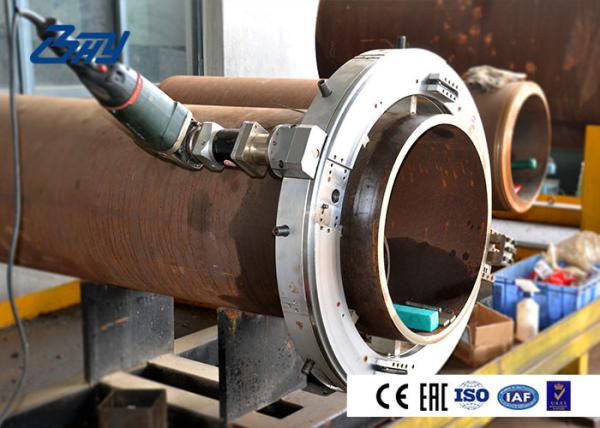

36in - 42in Split Frame Pipe Cutting And Beveling Tool For Onsite Construction

Pipe Cutting And Beveling Tool Type

Electric:

Electric:
Convenient power supply
Stable Performance
Popular choice
Electric requirement:220-240V 1PH 50/60HZ
Carbon brush Motor:1.43KW,1.7KW,2.4KW
Brushless Motor: 1.5KW,2.0KW,3.0KW
Double motor for big model or heavy duty

Pneumatic:

Explosion Proof
Stable Performance
Easy to maintenance
Air requirement:1500-2000L/min @0.63-0.8Mpa
Power:2HP,3HP,4HP
Double motor for big model or heavy duty

Hydraulic:

Powerful drive, High efficiency
Stable Performance, Low noise, Anti-explosion
Ideal for heavy wall thickness & large size pipe
Hydraulic requirement:28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated Pressure:13MPa
Rated flow:28L/min
Max.Torque:380NM

Pipe Cutting And Beveling Tool Basic Info.

Pipe Cutting And Beveling Tool Application

The SFM Series of Pipe Cutting and Beveling Machines are widely used in long-distance transport pipeline, power plant, nuclear power, petroleum, chemical engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline installation engineering, rush-repair work, etc. Our products play an important role in these fields.

Bevel Type

Pipe Cutting And Beveling Tool Features

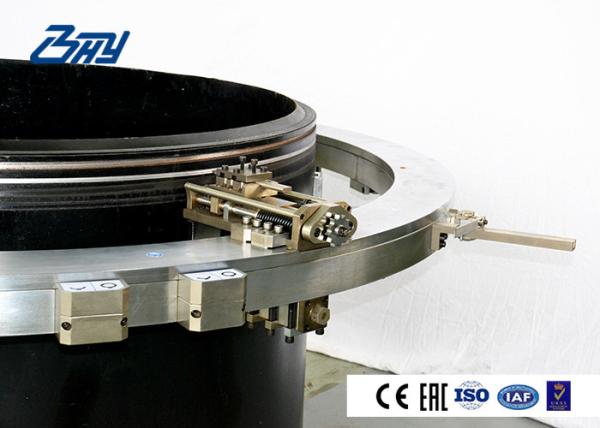

■ Split frame technology, easy to install in the pipeline;

■ Out-mounted, clamping by multipoint jaws;

■ Cold cutting, don’t influence the pipe’s material;

■ Auto feed, cut and bevel the pipe at the same time, cost-effective;

■ Three types of drive motors: electric, pneumatic and hydraulic;

■ Can process material: carbon steel, alloy steel, stainless steel etc.

■ Precise cutting and beveling tools with high efficiency and long service life.

Models Dimension

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Disassembly

■ Remove the driving device (pneumatic, electric or hydraulic) from the split frame machine;

■ Withdraw the tool slide; disassembly tool slide is not necessarily needed for storage of the machine;

■ Remove foreign matters from the machine such as metal debris and excess cooling agent;

■ Separate the machine into two parts, and check whether there is any metal debris on the bearing guiderail;

■ Drip few drops of rail lubricant on a felt wiper before storing the machine.

Report on Comparison of Product Advantages

Working on site
