Specifications
Brand Name :
BHY
Model Number :
SFM2836E
Certification :
ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T,
Supply Ability :
1000 sets/year
Delivery Time :
30-45 work days
Packaging Details :
Aluminum case, wooden case or metal packing case
Model :
SFM2836E
Drive Mode :
Electric
Application :
Nuclear power, thermal power, chemical plant, natural gas, boiler plant, pharmaceutical factory
Tool slide :
Spring,thick-wall,drilling&beveling tool slides
Structure :
Split frame structure
HS :
8461909000
Application Range :
28" - 36" (711.2-914.4mm)
Wall Th. :
≤100mm
Description

Electric Portable Pipe Cutting And Beveling Machine Quick Installation

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.

Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Product Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

Electric Portable Pipe Cutting And Beveling Machine Split Frame Quick Installation

Models

Model

Processing

range (in)

Max wall

thickness (mm)

 Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric
SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic
SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.


Dimension

Electric Portable Pipe Cutting And Beveling Machine Split Frame Quick Installation

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model A(mm) B(mm) C(mm) D (mm) E (mm) F (mm)

G

(mm)
SFM0206 176 70 122 176 225 253 164
SFM0408 228 70 122 176 225 253 164
SFM0612 332 70 122 176 225 253 164
SFM0814 364 70 122 176 225 253 164
SFM1016 416 70 122 176 225 253 164
SFM1218 468 70 122 176 225 253 164
SFM1420 518 70 122 176 225 253 164
SFM1824 622 102 98 176 235 253 174
SFM2026 674 102 98 176 235 253 174
SFM2430 776 102 98 176 235 253 174
SFM2632 826 102 98 176 235 253 174
SFM3036 928 102 98 176 235 253 174
SFM3238 1006 102 98 176 235 253 174
SFM3642 1082 102 98 176 235 253 174
SFM4248 1236 102 98 176 235 253 174
SFM3648 1296 140 220 276 235 253 174
SFM4860 1600 140 220 276 235 253 174
SFM6072 1905 140 220 276 235 253 174
SFM7284 2210 140 220 276 235 253 174

Manufacture

Electric Portable Pipe Cutting And Beveling Machine Split Frame Quick InstallationElectric Portable Pipe Cutting And Beveling Machine Split Frame Quick Installation

Electric Portable Pipe Cutting And Beveling Machine Split Frame Quick Installation

Electric Portable Pipe Cutting And Beveling Machine Split Frame Quick InstallationElectric Portable Pipe Cutting And Beveling Machine Split Frame Quick Installation

Electric Portable Pipe Cutting And Beveling Machine Split Frame Quick Installation

Electric Portable Pipe Cutting And Beveling Machine Split Frame Quick Installation

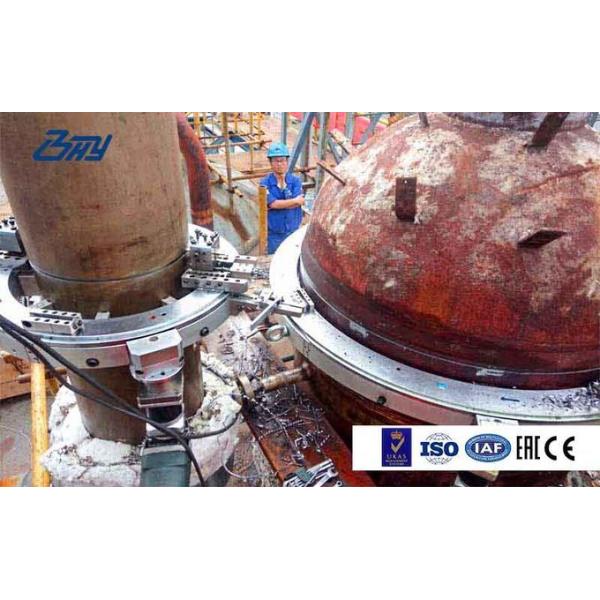

Working On Site

Electric Portable Pipe Cutting And Beveling Machine Split Frame Quick Installation
