Specifications
Brand Name :
ZHICHENG
Model Number :
C2F
Place of Origin :
Henan, China
Price :
$35.60/sets 1-99 sets
Warranty :
1 year
Customized support :
ODM, OEM
Technics :
Casting Forging
Connection :
Flange
Shape :
Equal
Head Code :
round
Nominal size :
DN25 - DN3000mm
Working pressure :
From pn10 to pn25
Flange drilling :
DIN, ANSI, BS, ISO, JIS,EN 1092
Material of flange :
Galvanized carbon steel ,Stainless steel 304,316 etc.
Drawing :
Offer
Applicable media :
Water
Export countries :
Canada, America, Australia, Chile, Malaysia, Philippine etc
Product Certificate :
ISO9001, WRAS
Brand :
Runtaida
Product name :
Flange connection disassembly joint Expansion joint
Description

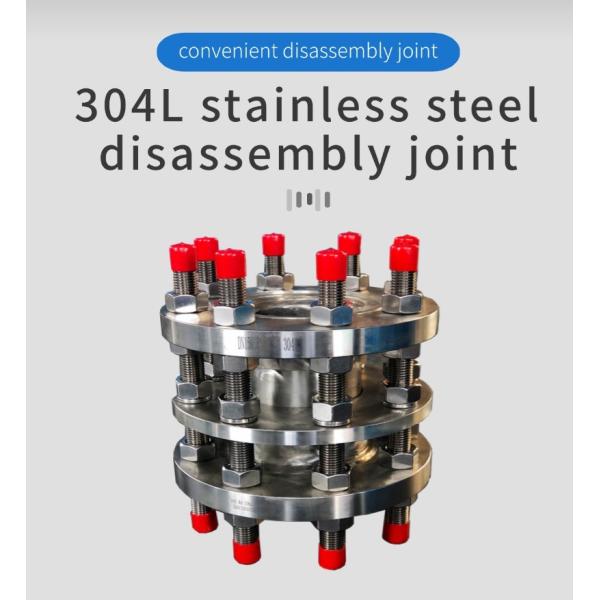

304, 316 stainless steel double flange disassembly joint

Video description



Product Description

The dismantling joint is a special type of piping fitting designed to accommodate

thermal expansion, contraction, and minor misalignments in piping systems while

providing safe and controlled range of motion. These joints are commonly used

in water, wastewater, and industrial applications.


Specification

No.
Name
Quantity
Material
1
Valve
1
QT450-10,Q235A,304,316etc.
2
Gasket
1
NBR
3
Follower
1
QT450-10,Q235A,304,316etc.
4
limited short pipe
1
Q235A,304,316etc.
5
stud
n
Q235A,35#,304,316etc.
6
nut
Tn
Q235A,20#,304,316etc.


Installation Instructions

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint
Key Features:
1. Double Flange Connection:
• Equipped with flanges on both ends for easy installation and secure connection to
pipes, valves, or equipment.
2. Limit Rods or Tie Bars:
• Includes rods or bars that control the joint’s expansion and contraction within a
pre-determined range, protecting the system from excessive movement and damage.
3. Flexibility:
• Allows axial movement (expansion or compression), lateral displacement, and sometimes
angular deflection, depending on the design.
4. Material Construction:
• Typically made from ductile iron, carbon steel, stainless steel, or composite materials. The
seals or gaskets are often made of elastomers like EPDM, NBR, or PTFE to ensure a
leak-proof connection.
5. Corrosion Resistance:
• Coated with epoxy, rubber lining, or other protective layers to withstand harsh environmental
conditions.

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint

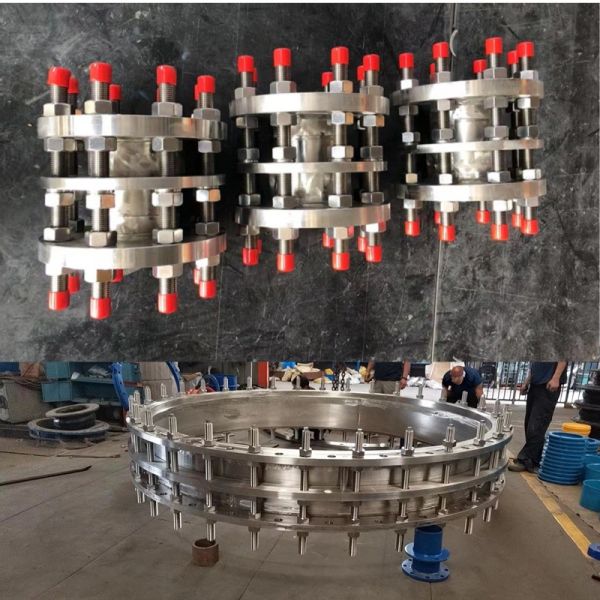

Product Exhibition

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint

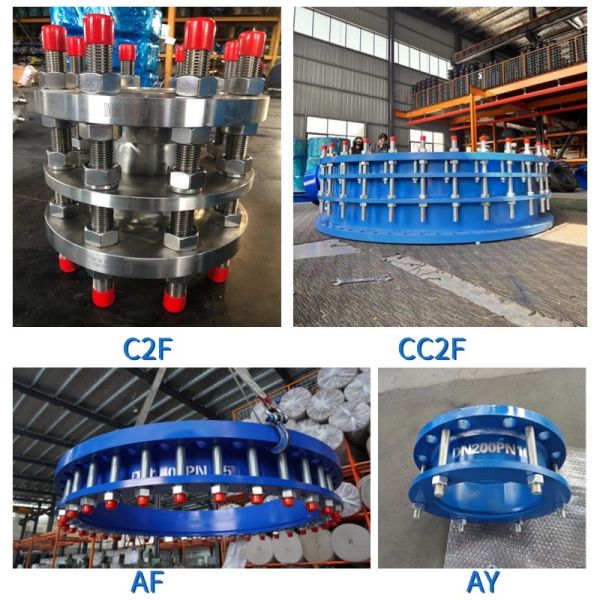

Dismantling joints Product Series

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint

Crackdown detection

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint
Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint
Technological process
The dismanting joint is suitable for pipelines with flanges on both sides. When installing,
the installation length of both ends
of the product and flanges can be adjusted. The diagonal fund-raising can tighten the
bolt of the pressure cap evenly, making it
an integral whole with a certain displacement. It is convenient to install and repair,
and it can be adjusted according to the size of the site.
Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint
Company Profile
Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete,
with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification
and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure that the
delivered products meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses,
double flange disassembly joints, flange adapters

Why Choose Us

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint

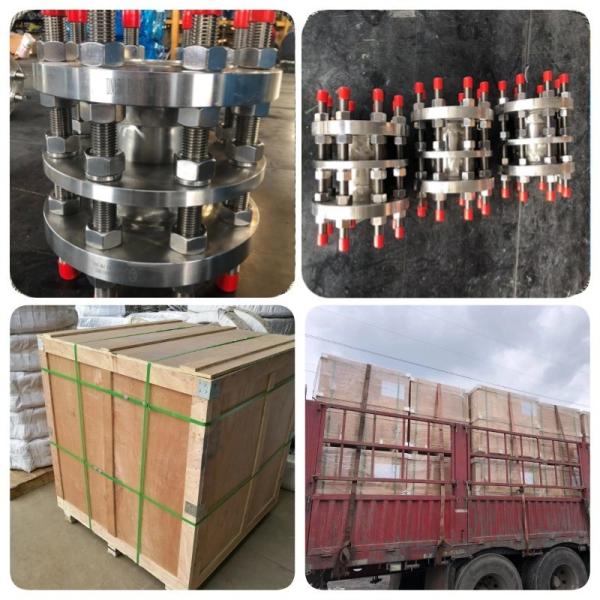

Packing & Delivery

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint

Pipe Fitting Double Flange Flexible Coupling Carbon Steel Dismantling Joint 304, 316 stainless steel double flange disassembly joint
Packing: Inner plastic film packing, outer
standard export wooden case packing.

Shipping: Courier company transport, air freight and sea transport. It depends on
your actual order details and quantity.
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according
to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
