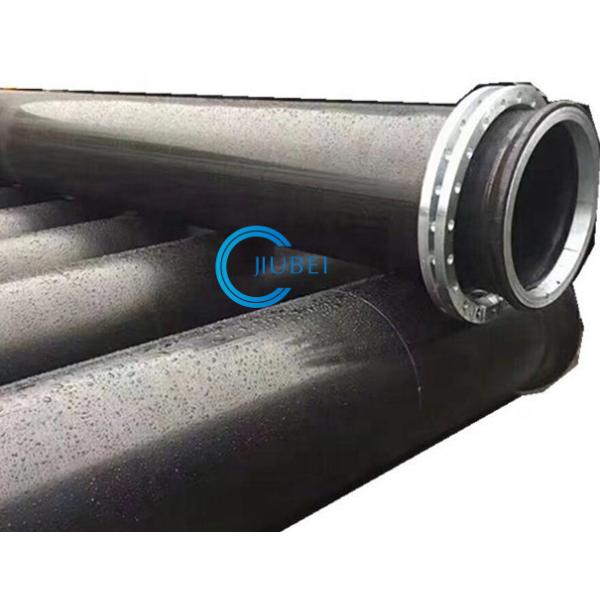

Flanged Dredging HDPE Pipe With Stub End River Dredging Fine Sand 500mm
Flanged Dredging HDPE Pipe With Stub End River Dredging Fine Sand 500mm
Flanged Dredging HDPE Pipe With Stub End River Dredging Fine Sand 500mm
Flanged Dredging HDPE Pipe With Stub End River Dredging Fine Sand 500mm
Specifications
Brand Name :
Jiubei
Model Number :
DN100~700
Certification :
ISO
Place of Origin :
China
MOQ :
100m
Price :
usd50-500/m
Payment Terms :
L/C, T/T
Supply Ability :
10000m/month
Delivery Time :
7working days
Packaging Details :
Standard sea worthy packaging
Name :
Flanged dredging HDPE pipe with stub end for river dredging fine sand
Material :
PE 100
Connection :
Galvanised bolts nuts and washers
Accessories :
HDPE STUB END AND STEEL BACK RING
LENGTH :
CUSTOMIZED
MOQ :
100m
Description

Flanged dredging HDPE pipe with stub end for river dredging fine sand introduction

As dredging becomes more & Most popular today, HDPE pipes used to be the ideal option for transporting pressurized liquids containing a mixture of water and inerts such as clay, silt, sand, gravel and bulky solids. HDPE dredge pipes are made of high-density polyethylene and can be manufactured in a variety of sizes. The dredger pipes are manufactured and welded with two HDPE flange adapters and two steel flanges, also called "HDPE flanged pipes",
, the two pipes of which can be easily connected together by flanges and covered with floats to float over sea dredged pipes, which is preferred for agricultural applications, mud dredging, mining projects. HDPE dredge pipes are used with polyurethane (foam) filled floats.Some models are to be used with rubber hoses for river or sea dredging.

Dimension of HDPE dredging pipe:

Outside Diameter(mm)

 Wall thickness(mm)
SDR26 SDR21 SDR17 SDR13.6 SDR11
0.4Mpa 0.6Mpa 0.8Mpa 1.0Mpa 1.25Mpa
110 4.2 5.3 6.6 8.1 10.0
125 4.8 6.0 7.4 9.2 11.4
160 6.2 7.7 9.5 11.8 14.6
180 6.9 8.6 10.7 13.3 16.4
200 7.7 9.6 11.9 14.7 18.2
225 8.6 10.8 13.4 16.6 20.5
250 9.6 11.9 14.8 18.4 22.7
280 10.7 13.4 16.6 20.6 25.4
315 12.1 15.0 18.7 23.2 28.6
355 13.6 16.9 21.1 26.1 32.2
400 15.3 19.1 23.7 29.4 36.3
450 17.2 21.5 26.7 33.1 40.9
500 19.1 23.9 29.7 36.8 45.4
560 21.4 26.7 33.2 41.2 50.8
630 24.1 30.0 37.4 46.3 57.2
710 27.2 33.9 42.1 52.2
800 30.6 38.1 47.4 58.9
900 34.4 42.9 53.3 66.2
1000 39.2 47.7 59.3 73.6
1200 45.9 57.2 70.6
1400 53.9 66.7 82.4
1600 61.6 76.2 94.2
