SDR26 High Density PE HDPE Dredge Pipe Floater Water Mud Sand Gas Dredging Mining
SDR26 High Density PE HDPE Dredge Pipe Floater Water Mud Sand Gas Dredging Mining
SDR26 High Density PE HDPE Dredge Pipe Floater Water Mud Sand Gas Dredging Mining
SDR26 High Density PE HDPE Dredge Pipe Floater Water Mud Sand Gas Dredging Mining
SDR26 High Density PE HDPE Dredge Pipe Floater Water Mud Sand Gas Dredging Mining
SDR26 High Density PE HDPE Dredge Pipe Floater Water Mud Sand Gas Dredging Mining
Specifications
Brand Name :
Jiubei
Model Number :
DN100~700
Certification :
ISO
Place of Origin :
China
MOQ :
100m
Price :
usd50-500/m
Payment Terms :
L/C, T/T
Supply Ability :
10000m/month
Delivery Time :
7working days
Packaging Details :
Standard sea worthy packaging
Name :
PE100 dredging HDPE pipe for sand/slurry discharging
Material :
PE 100
Connection :
Galvanised bolts nuts and washers
Accessories :
HDPE STUB END AND STEEL BACK RING
LENGTH :
CUSTOMIZED
MOQ :
100m
Description

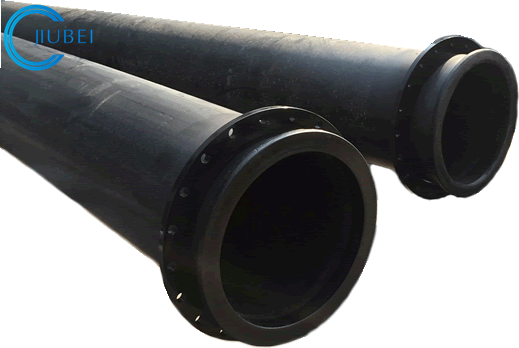

Floating Water Mud Sand Gas Dredging Mining High Density PE HDPE Pipe

HDPE dredging pipes are made of high density polyethylene fillers and are manufactured in various sizes for use mainly in the sea to transport sand and sea mud. There are two types of Kuzeyboru HDPE dredge pipes; Double Flanged HDPE Pipe is manufactured as Single Flanged HDPE Pipe.

Dredge Pipe
HDPE dredgers are used in many projects around the world such as: The dredging pipes are welded with two HDPE flared sockets and two steel pipe connecting flanges and capped with buoys - floating clamps to keep them afloat. HDPE
dredging pipes are easy to transport, install and use for any dredging or drainage work .Dredge tubes are preferred for mobile mud dredging and mining purposes. Kuzeyboru that makes your work easier.

Dimension of HDPE dredging pipe:

Outside Diameter(mm)

 Wall thickness(mm)
SDR26 SDR21 SDR17 SDR13.6 SDR11
0.4Mpa 0.6Mpa 0.8Mpa 1.0Mpa 1.25Mpa
110 4.2 5.3 6.6 8.1 10.0
125 4.8 6.0 7.4 9.2 11.4
160 6.2 7.7 9.5 11.8 14.6
180 6.9 8.6 10.7 13.3 16.4
200 7.7 9.6 11.9 14.7 18.2
225 8.6 10.8 13.4 16.6 20.5
250 9.6 11.9 14.8 18.4 22.7
280 10.7 13.4 16.6 20.6 25.4
315 12.1 15.0 18.7 23.2 28.6
355 13.6 16.9 21.1 26.1 32.2
400 15.3 19.1 23.7 29.4 36.3
450 17.2 21.5 26.7 33.1 40.9
500 19.1 23.9 29.7 36.8 45.4
560 21.4 26.7 33.2 41.2 50.8
630 24.1 30.0 37.4 46.3 57.2
710 27.2 33.9 42.1 52.2
800 30.6 38.1 47.4 58.9
900 34.4 42.9 53.3 66.2
1000 39.2 47.7 59.3 73.6
1200 45.9 57.2 70.6
1400 53.9 66.7 82.4
1600 61.6 76.2 94.2
