10 Inch 9 Inch Cement Rubber Discharge Hose Replacement Flexible Water Industrial
10 Inch 9 Inch Cement Rubber Discharge Hose Replacement Flexible Water Industrial
10 Inch 9 Inch Cement Rubber Discharge Hose Replacement Flexible Water Industrial
10 Inch 9 Inch Cement Rubber Discharge Hose Replacement Flexible Water Industrial
10 Inch 9 Inch Cement Rubber Discharge Hose Replacement Flexible Water Industrial
10 Inch 9 Inch Cement Rubber Discharge Hose Replacement Flexible Water Industrial
10 Inch 9 Inch Cement Rubber Discharge Hose Replacement Flexible Water Industrial
10 Inch 9 Inch Cement Rubber Discharge Hose Replacement Flexible Water Industrial
Specifications
Brand Name :
JiuBei
Certification :
ISO
Place of Origin :
China
MOQ :
1unit
Price :
usd50-500/unit
Supply Ability :
300units/month
Delivery Time :
7working days
Packaging Details :
Standard sea worthy packaging
Name :
Rubber discharge hose
Material :
NBR with coil cloth reinforced
Length :
1m~10m
Connection :
Steel flange
Working pressure :
1~2.5Mpa
Bursting pressure :
3~7.5Mpa
Description

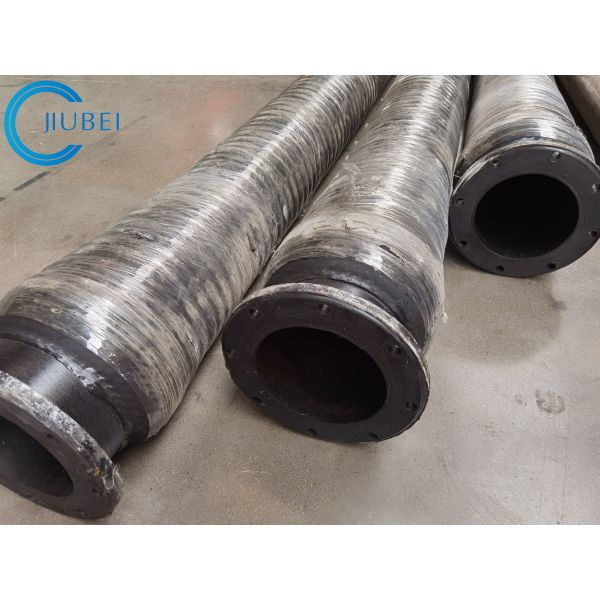

High Pressure Flexible Water Rubber Discharge Industrial Hose

applications

1. Used for mud piping from badge.

2. Widely used for suction or discharge of mud, water, oil, air and driven in industry, agriculture, factory, mining and building etc.

materials

Tube: Smooth NR/synthetic rubber, usually color is black

Reinforcement: one or more layers of spiral fabric reinforcement, steel wire spiral layer,

Cover: Oil, abrasion and weather resistant wrapped synthetic rubber.

structure

1. The inner rubber liner is made of wear-resistant natural rubber and synthetic rubber

2. The reinforcement layer is made of high-strength rubber dipped chemical fiber and reinforced by spiral metal wire.

3. The rubber cover is made of natural rubber and synthetic rubber.

4. The surface of the hose takes the form of corrugated

Construction:

Inner layer Black,wear and corrosion resistant rubber
Reinforcement High tensile spiral fabric reinforcements, steel wire spiral layer
Cover Black,wear and corrosion resistant rubber

Inner layer: NR,BR and SBR compound

synthetic rubber;

Reinforcement: high tensile strength fabrics

with helix steel wire；

Cover:NR+CR；

Ideal working temperature: -20 to 70℃；

Safety factor: 5:1

Dimension:

I.D W.P. B.P. Length Reference Thickness
mm Tolerance(mm) bar bar m mm
300 ±2 4~12 36 1~3 34~37
450 ±2 4~12 36 1~3 34~37
560 ±3 4~12 36 2~3 40~45
600 ±3 4~12 36 2~3 40~45
700 ±3 8~15 45 2~3 40~45
800 ±4 12~25 55 2~3 50~52
900 ±4 15~25 75 2~3 55~58
1000 ±5 20~25 75 3~5 75
1100 ±5 25~30 80 3~5 90
Customer made acceptable.
