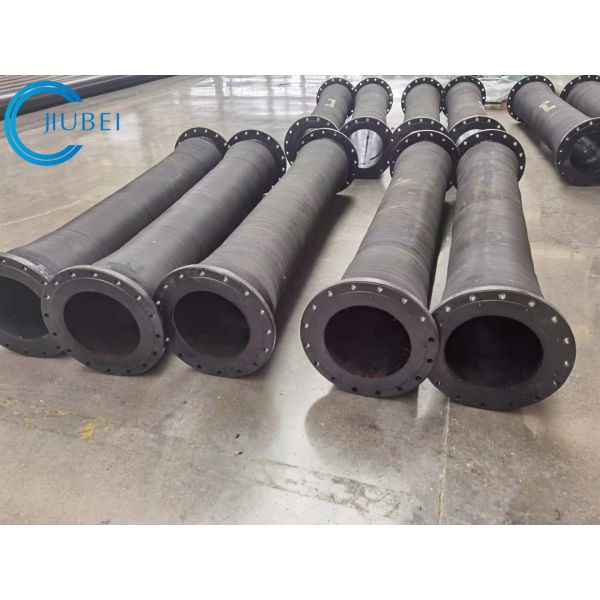

6 Inch 15 Inch Flexible Rubber Discharge Hose Pipe Industrial Hydraulic Rubber Suction
6 Inch 15 Inch Flexible Rubber Discharge Hose Pipe Industrial Hydraulic Rubber Suction
6 Inch 15 Inch Flexible Rubber Discharge Hose Pipe Industrial Hydraulic Rubber Suction
6 Inch 15 Inch Flexible Rubber Discharge Hose Pipe Industrial Hydraulic Rubber Suction
6 Inch 15 Inch Flexible Rubber Discharge Hose Pipe Industrial Hydraulic Rubber Suction
6 Inch 15 Inch Flexible Rubber Discharge Hose Pipe Industrial Hydraulic Rubber Suction
Specifications
Brand Name :
JiuBei
Certification :
ISO
Place of Origin :
China
MOQ :
1unit
Price :
usd50-500/unit
Supply Ability :
300units/month
Delivery Time :
7working days
Packaging Details :
Standard sea worthy packaging
Name :
Rubber discharge hose
Material :
NBR with coil cloth reinforced
Length :
1m~10m
Connection :
Steel flange
Working pressure :
1~2.5Mpa
Bursting pressure :
3~7.5Mpa
Description

Industrial Hydraulic Rubber Suction Discharge Flexible Hose

PRODUCT DETAILS

The river and coast subsidence is not a new phenomenon in Vietnam, and serves to carry the dredging of seaports

Out levees and coastal embankments, 75 Rubber A member Company Limited has produced and distributed the slurry rubber hose.

1. Characteristics of hose

* Length of hose: 2-12 meters

* Metal joints

* Specialized in dredging waterways

* Compatible with all types of industrial pumps

* High durability, impact resistance, water pressure, limited distortion

* Suitable for high and low terrain, corner and zigzag.

2. Classification and structure of rubber hose

Hose products include delivery and suction hose used for dredging waterway.

Structure of drain hose:

* The rubber lining is made of high abrasion resistant rubber;

* The lamination polyamite coating with perfect durability adheres firmly to the spring layer to help the hose withstand the

work pressure, impact;

* Cover rubber layer is made of materials resistant to salt-water and impact-resistant work environments.

suction hose:

* The rubber lining is made of high abrasion resistant rubber;

* The lamination polyamite coating and steel ring adheres firmly to help the hose withstand the working pressure, deformation

* Cover rubber layer is made of materials resistant to salt-water and impact-resistant work environments.

Construction:

Inner layer Black,wear and corrosion resistant rubber
Reinforcement High tensile spiral fabric reinforcements, steel wire spiral layer
Cover Black,wear and corrosion resistant rubber

Inner layer: NR,BR and SBR compound

synthetic rubber;

Reinforcement: high tensile strength fabrics

with helix steel wire；

Cover:NR+CR；

Ideal working temperature: -20 to 70℃；

Safety factor: 5:1

Dimension:

I.D W.P. B.P. Length Reference Thickness
mm Tolerance(mm) bar bar m mm
300 ±2 4~12 36 1~3 34~37
450 ±2 4~12 36 1~3 34~37
560 ±3 4~12 36 2~3 40~45
600 ±3 4~12 36 2~3 40~45
700 ±3 8~15 45 2~3 40~45
800 ±4 12~25 55 2~3 50~52
900 ±4 15~25 75 2~3 55~58
1000 ±5 20~25 75 3~5 75
1100 ±5 25~30 80 3~5 90
Customer made acceptable.
