PE/PP/PVC/PPR Pipe Extrusion Line Plastic Tube Production Line Plastic Extrusion Machinery
PE/PP/PVC/PPR Pipe Extrusion Line Plastic Tube Production Line Plastic Extrusion Machinery
Specifications
Brand Name :
wangyuan
Model Number :
pe pipe line
Certification :
SGS
Place of Origin :
China
MOQ :
1
Price :
19999-28777usd
Payment Terms :
L/C T/T
Supply Ability :
5 set per month
Delivery Time :
50days
Packaging Details :
film
Name :
PE Pipe Equipment
Application :
Plastic pipe Extrusion Machine
extruder model :
Water Pipe extruder
extruder :
high speed single screw extruder
mould :
three layers pipe mould
pipe :
HDPE Water Pipe Conduit Pipe Extrusion Line
motor :
80KW
Warranty :
1 Year
Description

Plastic PVC/UPVC/HDPE/PPR/LDPE Agricultural Drip Irrigation Hose/Electric Conduit /Garden Hose/Sewage Drainage Tube Pipe Manufacturing Extrusion Making Machine

Plastic PE/PP/PPR/HDPE/LDPE Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine

Product Description

Factory Price PE HDPE LDPE PPR Plastic Water Gas Oil Supply Pipe Tube Extrusion Production Line Single Screw Extruder Pipe Making Machine

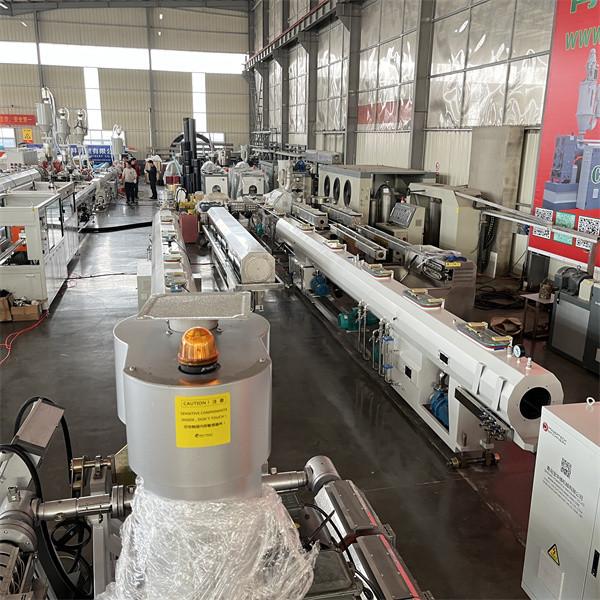

PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet/laser printer, etc. to achieve the production and manufacture of high-grade tubing.

This plastic PPR pipe extrusion machinery adopts high efficiency single screw extruder, equipped with the PLC controlling system. It can ensure the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PP-R, PE-RT, PB pipe.
This line consists of main loader,hopper dryer,extruder,mould,vacuum calibration tank,haul-off machine,cutter machine,stacker.And there are pipe crushers,belling machine,high speed mixer,weighing system,etc. for you to choose.
which has reasonable design, unique structure, stable performance, easy operation and maintenance, constant production capacity, warmly welcomed by customers.

Feature:
1,The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.

2,Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

4,Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

Application:
The line is mainly used for producing PP-R pipe also used for producing PE-RT, PB, and PE-X resin pipe.

Product Description

PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet/laser printer, etc. to achieve the production and manufacture of high-grade tubing.

Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

PE Pipe Extrusion Machine Features:
1. The optimum spiral bush highly improves the output of the pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high-quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of an extruder
6. Advanced PLC operation system realizes synchronization and high-quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer a stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
