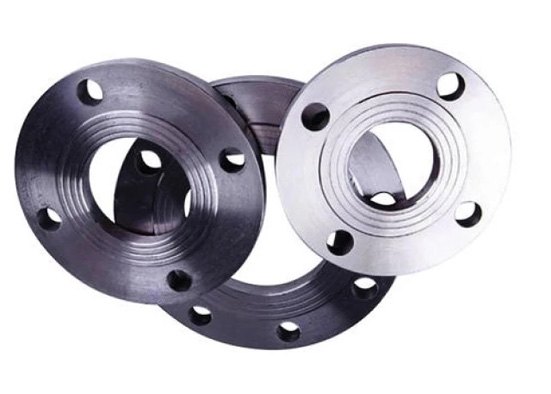

Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange
Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange
Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange
Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange
Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange
Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange
Specifications
Brand Name :
ZeXu
Model Number :
1/2"-24"
Certification :
CE,API
Place of Origin :
Hebei,China
MOQ :
1 pieces
Price :
$6.00 - $52.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per week
Delivery Time :
Shipped in 5-10 days after payment
Packaging Details :
wooden case
Standard :
ANSI, BS, DIN, GB, ISO, JIS, JPI, ASME
Pressure :
Class150/300/600/900/1500/2500
Materail :
Stainless steel
Specific model :
1/2"-24"
Color :
Sliver
MOQ :
1 pieces
Standard or Nonstandard :
Standard
Description

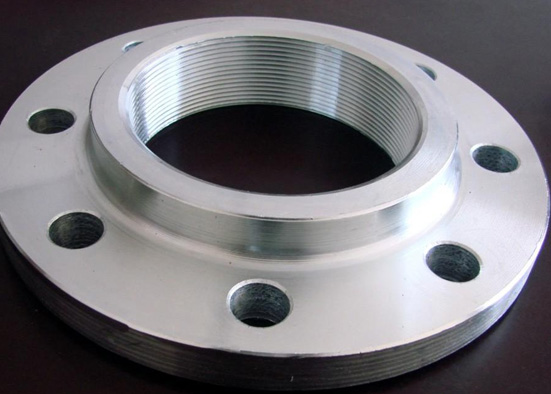

Forged Flange ASME B 16.5 Stainless Steel Threaded Flange

Threaded flange refers to a kind of flange connected with pipe by thread. When designing, it can be handled as loose flange.The advantage is that there is no need for welding, and the additional torque generated on the cylinder or pipeline when the flange is deformed is small. The disadvantage is that the flange thickness is large and the cost is high. Suitable for the connection of high-pressure pipelines.

Precautions for use

Threaded flange is a kind of non-welded flange by processing the inner hole of the flange into pipe thread and matching with threaded pipe to realize connection. Compared with the flat welding flange or the butt welding flange, the threaded flange has the characteristics of convenient installation and maintenance, and can be used on some pipelines that are not allowed to be welded on site. The alloy steel flange has enough strength, but it is not easy to weld, or the welding performance is not good, you can also choose the threaded flange. However, when the temperature of the pipeline changes sharply or the temperature is higher than 260℃ and lower than -45℃, it is recommended not to use threaded flanges to avoid leakage.

Product name
Forged Flange ASME B 16.5 Stainless Steel Threaded Flange
Usage
Used for the connection of all kinds of pipelineto convey the water, steam, air, gas and oil
Package
Wooden cases/pallets
Standard
ANSI
ANSI B16.5 ASME B16.47 series A/B
DIN
DIN
GOST
GOST 12820-80 12820-81
EN
EN1092-1:2002
JIS
JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210
BS
BS4504 BS10 Table D/E
Material
ANSI
F 304/L, F316/L F317L,F347H,F321,F904L,F310S ,F51/60 F53,F44,A105,A105N Alloy Steel: WHPY45/52/65/80 Alloy Steel: WHPY45/52/65/80
DIN
CS RST37.2;S235JR SS 304/304L,316/316L
GOST
CS CT20;16MN;SS 304/304L,316/316L
EN
CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
JIS
SS400,SF440 SS 304/304L, 316/316L
BS
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316
Pressure
ANSI
Class 150, 300, 600, 900, 1500 2500lbs
DIN
PN6,PN10,PN16,PN25,PN40,PN64,PN100
GOST
PN6,PN10,PN16,PN25
EN
PN6,PN10,PN16,PN25,PN40,PN64,PN100
JIS
1K,2K,5K,10K,16K,20K,30K,40K
BS
PN6,PN10,PN16,PN25,PN40,PN64,PN100
Size
ANSI
1/2″ – 60″
DIN
DN15-DN2000
GOST
DN15-DN1600
EN
DN15-DN2000
JIS
15A-1500A
BS
DN15-DN2000


Sliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe FlangeSliver 2500LB PN100 JIS 40K ASME B16.5 Steel Pipe Flange
