Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost
Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost
Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost
Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost
Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost
Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost
Specifications
Brand Name :
ZeXu
Model Number :
Bellow
Certification :
CE,API
Place of Origin :
Hebei,China
MOQ :
1 pieces
Price :
$48.00 - $98.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per week
Delivery Time :
5-20 work days
Packaging Details :
According to customer requirements
Product Quality :
reliable
Product Structure :
compact
Working Temperature :
-10°-300°
Application :
chemical, metallurgy
Surface :
clean and non-invasive
Model Specification :
DN32-DN1000
Color :
Customer request
Description

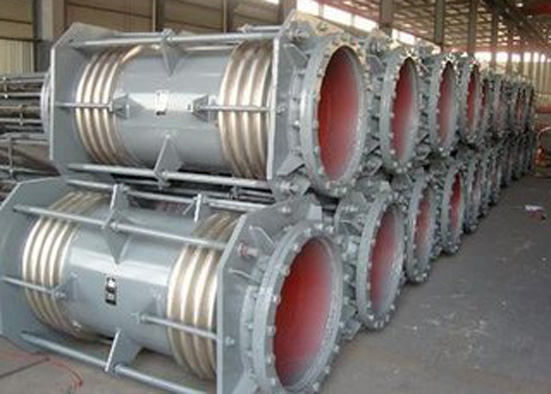

Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost

The large tie rod transverse corrugated compensator (pipe expansion joint, metal corrugated expander) can compensate the transverse and angular displacement of the curved pipe section.

Large tie rod transverse corrugated compensator use

The large tie rod corrugated compensator has the advantages of large compensation, turbid steel, no medium pressure thrust, safety and no leakage, and low cost. It has been widely used in recent years.

The structure and working principle of the big tie rod

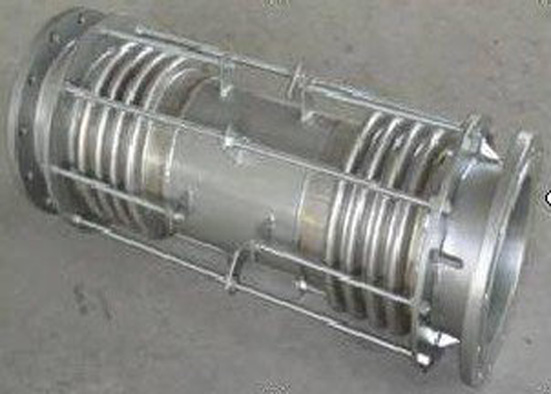

The big tie rod corrugated compensator (also known as the compound tie rod) is a flexible component composed of two bellows, end pipes, short plates and tie rods, which can absorb the single plane or Multi-plane lateral displacement. The long pull rod can withstand the internal pressure thrust and the external force of other accessories. The bolts at both ends of the pull rod have been adjusted before leaving the factory. The large pull rod is loose before installation. After the compensator is deformed, the large pull rod can limit the amount of deformation and protect The role of bellows.

Connection datas of expansion joints piping
Nominal diameter (mm) Quantity of ripple Pressure level Effective area of corrugated tube(cm2)

Maximum

external

diameter

(mm)
0.25 0.6 1.0 1.6 2.5

Axial compensation

(mm)

Stiffness

(N/mm)

Axial compensation

(mm)

 Length(mm)

Toughness

(N/mm)
32 8 25/21 22/26 20/26 18/63 16 225
32 16 50/11 46/14 41/14 36/32 16 225
40 8 25/28 22/44 20/44 18/89 15/98 23 244
40 16 50/14 46/22 41/22 36/45 31/47 23 244
50 8 25/30 22/51 20/70 18/70 15/106 37 259
50 16 50/16 46/26 41/35 36/35 31/55 37 259
65 8 33/28 30/35 26/44 22/55 15/138 55 270
65 12 42/16 38/22 38/32 34/40 31/70 55 270
80 8 40/20 36/26 34/33 28/41 19/68 81 284
80 10 53/14 49/17 49/21 43/26 29/50 81 284
100 6 45/47 45/60 40/75 35/93 25/54 121 304
100 10 76/26 74/32 64/40 57/50 38/33 121 304
125 5 48/38 42/47 38/59 34/74 29/117 180 334
125 9 85/23 77/29 66/36 58/45 49/63 180 334
150 5 49/42 44/50 40/62 34/78 29/92 257 364
150 8 79/34 71/43 64/51 54/59 50/56 257 364
200 4 52/49 46/55 42/68 38/78 29/97 479 442
200 6 73/31 65/44 59/52 53/58 46/65 479 442
250 4 72/30 65/34 59/42 52/45 34/111 769 507
250 6 108/16 97/21 87/35 79/39 48/78 769 507
300 4 72/51 65/55 59/59 52/65 47/55 1105 562
300 6 108/32 97/35 87/37 79/41 71/47 1105 562
350 4 72/58 65/62 59/67 52/74 47/71 1307 622
350 6 108/38 87/41 87/44 79/48 71/45 1307 622
400 4 72/54 65/68 59/62 52/68 47/81 1611 700
400 6 108/36 97/39 87/43 79/47 71/47 1611 700
450 4 108/32 97/35 87/37 79/41 47/75 1972 760
450 6 162/20 145/22 131/23 118/25 71/52 1972 760
500 4 108/59 97/64 87/68 79/75 71/45 2445 835
500 6 162/34 145/37 131/39 118/43 106/28 2445 835
600 4 108/74 97/80 87/85 79/94 71/82 3534 980
600 6 162/42 145/45 131/49 118/53 106/48 3534 980
700 4 108/67 97/72 87/77 79/85 71/103 4717 1110
700 6 162/42 145/45 131/49 118/53 106/60 4717 1110
800 4 120/88 108/95 102/102 94/112 71/95 5822 1265
800 6 183/67 164/72 156/77 144/85 106/60 5822 1265
900 4 120/84 108/90 102/97 94/107 82/123 7620 1186
900 6 183/60 164/65 156/69 144/76 125/93 7620 1186
1000 4 120/91 108/98 102/105 94/116 82/117 9043 1286
1000 6 183/59 164/65 156/71 144/81 125/84 9043 1286

Large Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low CostLarge Tie Rod Compensator Is Safe And Leak-Free, Large Compensation Amount, Low Cost
