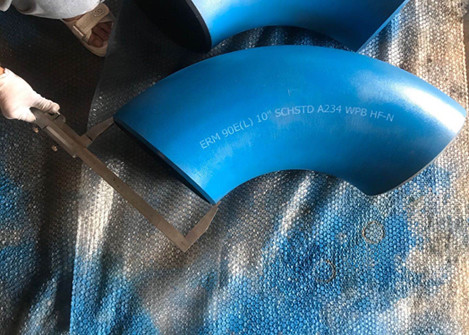

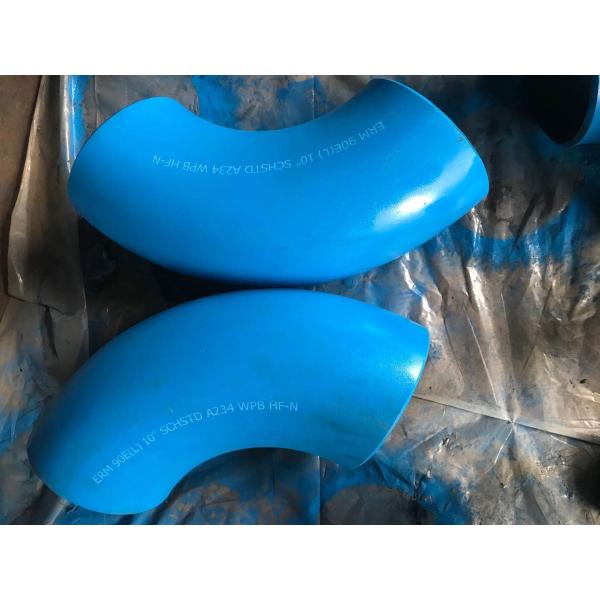

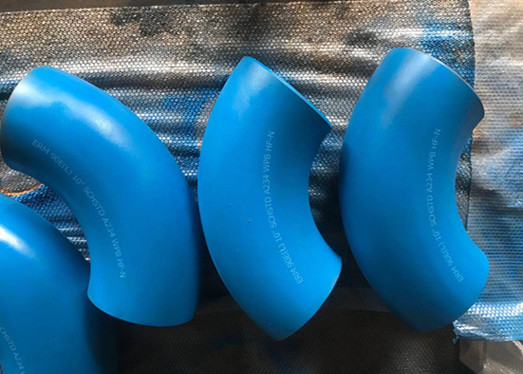

ANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe Elbow
ANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe Elbow
ANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe Elbow
ANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe Elbow
ANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe Elbow
ANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe Elbow
Specifications
Brand Name :
zexu
Model Number :
1"-80"
Certification :
CE API ISO9001
Place of Origin :
Hebei china
MOQ :
1pcs
Price :
20-27000USD
Payment Terms :
T/T
Supply Ability :
30000ton/Year
Delivery Time :
5work days
Packaging Details :
Export wooden boxes and pallets or according to customer requirements
Material :
Carbon steel
Standard :
ANSI B16.9
Shape :
Equal
Connection :
Welding
Color :
black or varnished
Size :
1/8"~6",DN10-200
Surface treatment :
black painting, anti-rust oil, sand blast
Production process :
seamless, welded
Description

Forged Elbow Butt Pipe Fittings Carbon Steel Butt Pipe Fittings 90 Degree Elbow Seamless

The basic process of carbon steel elbows is: firstly weld a polygonal ring shell with a polygonal cross section or a polygonal sector shell with closed ends. After the interior is filled with pressure medium, internal pressure is applied, and the cross section is cross-sectioned under internal pressure. From a polygon to a circle, it eventually becomes a circular ring shell. According to needs, a circular ring shell can be cut into 4 90° elbows or 6 60° elbows or other specifications of elbows. This process is suitable for manufacturing any elbow whose pitch diameter to inner diameter ratio is greater than 1.5 Large size elbows are an ideal method for manufacturing large carbon steel elbows.


The advantages of the carbon steel elbow manufacturing process are mainly manifested in the following aspects:


(1) Tube blanks are not needed as raw materials, which can save tube-making equipment and mold costs, and can obtain arbitrarily large diameter and relatively thin carbon steel elbows.
(2) The blank is a flat plate or a developable curved surface, so the blanking is simple, the accuracy is easy to ensure, and the assembly and welding are convenient.
(3) Due to the above two reasons, the manufacturing cycle can be shortened, and the production cost is greatly reduced. Because it does not require any special equipment, it is especially suitable for on-site processing of large carbon steel elbows.
(4) Carbon steel elbows are suitable for pipeline series in oil, natural gas, chemical, hydropower, construction and boiler industries.

Product name:
 Forged Elbow Butt Pipe Fittings Carbon Steel Butt Pipe Fittings 90 Degree Elbow Seamless
keyword:
Elbows,Pipe Elbow,45 Degree Elbow Fittings,Stainless Steel Pipe Fitting,Steel Elbow,Carbon Steel Elbow,Fitting,90 Degree
Elbow,Steel Fitting
Place of Origin:
HeBei, China
Model Number:
Elbow(45deg, 60deg,90deg and 180deg/LR and SR)
steel:
Material:stainless steel: A403 WP304, A403 WP304L,A403 WP316, A403 WP316L, A403 WP321Carbon steel: A234WPB, A420 WPL6Alloy steel:
WP11, WP22, WP12, WP5, WP9, WP91
Stainless steel: A182 F304, A182F304L,A182 F316, A182 F316L, A182 F321, A182 317H, A182316Ti, F53,F51 Carbon steel: A105,
A350LF2Alloy steel: A182 F11, A182F22, A182F12,A182 F5, A182F91, A182 F9
Connection:
Welding
Shape:
round
Head Code:
round
Surface:
Black painting or color painting for carbon steel and alloy steel fittings.
Usage:
Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
Standard:
ANSI B16.9, MSS SP 75, EN10253-2, JIS B2313
Packing:
carton box or wooden case
MOQ:
1 Piece
Type
Long radius 90 Deg Elbow,ELBO 90DEG LR SMLS, long radious elbow(LR elbow), seamless elbow,
butt welding elbow, carbon steel elbow(CS elbow), mild steel elbow(MS elbow), alloy steel elbow(AS elbow),
stainless steel elbow(SS elbow), ( 15deg, 30deg, 45deg, 90deg, 180deg)
Size:
NPS1/2”-120”(DN15-3000)
Wall Thickness
SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP…….
Material
carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8……
alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80……
stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310…..
Standard
ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 /GB-12459/GB-T13401 etc…
we can also produce according to drawing by customers.

ANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe ElbowANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe ElbowANSI B16.9 A420 Carbon Steel 1 Inch 90 Degree Pipe Elbow
