MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings
MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings
MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings
MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings
MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings
MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings
Specifications
Brand Name :
zexu
Model Number :
1/8"-4"
Certification :
CE API ISO9001
Place of Origin :
Hebei china
MOQ :
1pcs
Price :
20-27000USD
Payment Terms :
T/T
Supply Ability :
30000ton/Year
Delivery Time :
5work days
Packaging Details :
Wooden box
Material :
Stainless Steel
Thread Type :
NPT BSP BSPT
Technics :
Forged, FORGED
Shape :
Equal
Head Code :
round
Color :
silver
Connection :
Welding
Application :
Industry
Description

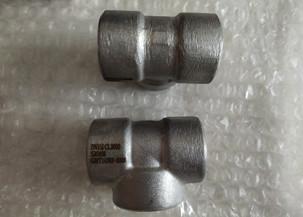

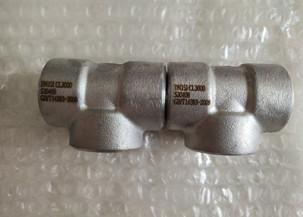

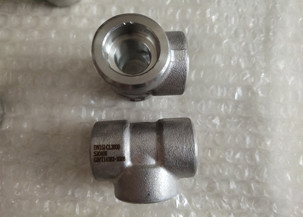

MSS SP-83 Socket Thread Equal Diameter Pipe Fittings Tee CL3000 Nuclear Power

The socket tee is mainly a high-pressure tee pipe connection fitting that is formed from round steel or steel ingots by die-forging blanks and then processed by a lathe.

DETAILED INFORMATION AS PER THE FOLLOWING FORM

Type Socket Welded Fittings
Size 1/2"~8" DN15~DN200
Pressure 1500#,3000#,6000#
Standards ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material

Carbon steel: ASTM/ASME A105
Alloy steel: ASTM/ASME A335 F5, F9, F11, F12,F22, F91

Stainless steel: ASTM/ASME A403 F304-304L,F316-316L,F321
High performance: ASTM/ASME A860 F42-46-52-60-65-70
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Packing wooden case, pallet or as customers' requirement
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Min order 10 pieces
Delivery time 7 after receipt of advanced payment
Certification API, ISO9001:2000
Delivery Term FOB(30% down payment in advance, the balance before shipment)
CIF or C&F(30% in advance , the balance against with the copy of B/L)

3000 lbs FORGED TEE ASME B16.11 Forged threaded tee
Nominal diameter Center to end A End outer diameter H Body wall thicknessG min Full thread length L min Effective thread length Ltmin
DN NPT 90° 45° 3000lbs
6 1/8 21 17 22 3.18 6.4 6.7
8 1/4 25 19 25 3.3 8.1 10.2
10 3/8 28 22 33 3.51 9.1 10.4
15 1/2 33 25 38 4.09 10.9 13.6
20 3/4 38 28 46 4.32 12.7 13.9
25 1 44 33 56 4.98 14.7 17.3
32 1.1/4 51 35 62 5.28 17 18
40 1.1/2 60 43 75 5.56 17.8 18.4
50 2 64 44 84 7.14 19 19.2
65 2.1/2 83 52 102 7.65 23.6 28.9
80 3 95 64 121 8.84 25.9 30.5
100 4 114 79 152 11.18 27.7 33

MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe FittingsMSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe FittingsMSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings
