ASME B16.11 PN16 3000LB Forged Steel Threaded Fittings
ASME B16.11 PN16 3000LB Forged Steel Threaded Fittings
ASME B16.11 PN16 3000LB Forged Steel Threaded Fittings
ASME B16.11 PN16 3000LB Forged Steel Threaded Fittings
ASME B16.11 PN16 3000LB Forged Steel Threaded Fittings
ASME B16.11 PN16 3000LB Forged Steel Threaded Fittings
Specifications
Brand Name :
ZeXu
Model Number :
Forged Threaded 90degree TH Elbow
Certification :
CE,API
Place of Origin :
Hebei,China
MOQ :
1 pieces
Price :
$12-$32
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per week
Delivery Time :
3-7 work days
Packaging Details :
Wooden Boxes
Connection :
thread/socket welding
Shape :
Other
Warranty :
3 years
standard :
ASME B16.11
Pressure :
PN10/PN16
Color :
as picture
Material :
Stainless Steel
Description

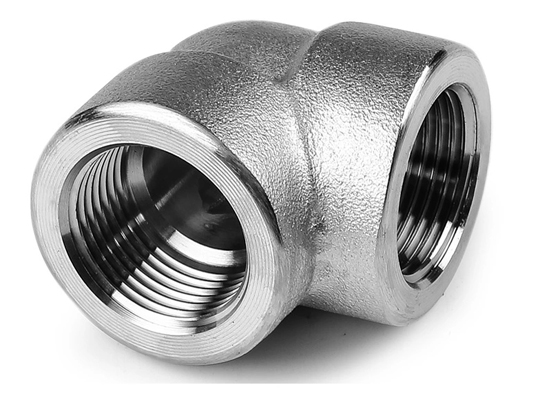

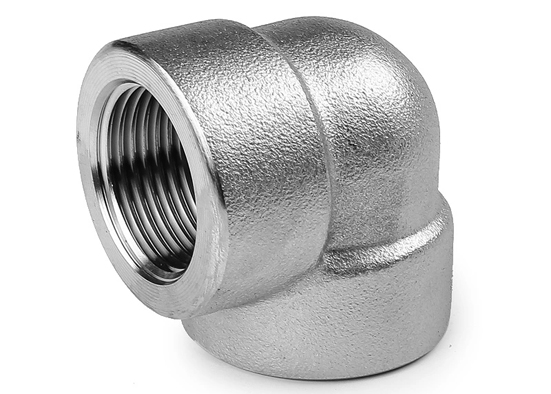

Stainless Steel B16.11 Forged Fitting Threaded 90 Degree Elbow/ 3000LB 6000LB 9000LB

Threaded elbows (also known as threaded elbows) are pipe fittings that change the direction of the pipeline in the pipeline system. According to the angle, there are 45° and 90°, and other abnormal angle elbows such as 60° are also included according to engineering needs. The materials of threaded elbows include cast iron, stainless steel, alloy steel, forgeable cast iron, carbon steel, non-ferrous metals and plastics.

Product Features


The threaded elbow consists of a screw port, a bent part, etc., and is characterized by a threaded groove on the screw port. In a pipeline system, the threaded elbow is a pipe fitting that changes the direction of the pipeline.

The pressure of threaded elbows: 2000LB, 3000LB, 6000LB threaded elbows, the main manufacturing standards generally include GB/T14383, ASME B16.11, BS 3799

Nominal Diameter

 Center to End

Outside Diameter

Wall Thickness

Length of Thread
A

Threaded elbow, threaded tee,

Threaded cross

Dmin

Threaded elbow, threaded tee,

Threaded cross

Cmin

90° Elbow Tee Cross

45°Elbow
DN NPS

2000

LB

3000

LB

6000

LB

2000

LB

3000

LB

6000

LB

2000

LB

3000

LB

6000

LB

2000

LB

3000

LB

6000

LB

 NPT Rc
Sch80 Sch160 XXS Sch80 Sch160 XXS Sch80 Sch160 XXS Sch80 Sch160 XXS
6 1/8 21 21 25 17 17 19 22 22 25 3.0 3.0 6.5 6.5 6.5
8 1/4 21 25 29 17 19 22 22 25 33 3.0 3.5 6.5 8.0 10.0
10 3/8 25 29 33 19 22 25 25 33 38 3.0 3.5 7.0 9.0 10.5
15 1/2 29 33 38 22 25 29 33 38 46 3.0 4.0 8.0 11.0 13.5
20 3/4 33 38 44 25 29 33 38 46 56 3.0 4.5 8.5 12.5 14.0
25 1 38 44 51 29 33 35 46 56 62 3.5 5.0 10.0 14.5 17.5
32 1.1/4 44 51 60 33 35 43 56 62 75 4.0 5.5 10.5 17.0 18.0
40 1.1/2 51 60 64 35 43 44 62 75 84 4.0 5.5 11.0 18.0 18.5
50 2 60 64 83 43 45 52 75 84 102 4.5 7.0 12.0 19.0 19.0
65 2.1/2 76 83 95 52 52 64 92 102 121 5.5 7.5 15.5 23.5 29.0
80 3 86 96 106 64 64 79 110 121 146 6.0 9.0 16.5 26.0 30.0
100 4 106 114 114 79 79 79 146 152 152 6.5 11.0 18.5 27.5 33.0

ASME B16.11 PN16 3000LB Forged Steel Threaded FittingsASME B16.11 PN16 3000LB Forged Steel Threaded Fittings
