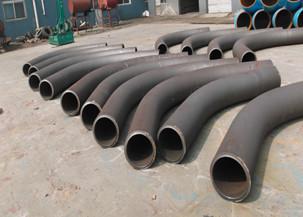

90deg 10 SCH40 ASME B 16.9 5D Pipe Fittings Bends , Pipe 90 Degree Bend
90deg 10 SCH40 ASME B 16.9 5D Pipe Fittings Bends , Pipe 90 Degree Bend
90deg 10 SCH40 ASME B 16.9 5D Pipe Fittings Bends , Pipe 90 Degree Bend
90deg 10 SCH40 ASME B 16.9 5D Pipe Fittings Bends , Pipe 90 Degree Bend
90deg 10 SCH40 ASME B 16.9 5D Pipe Fittings Bends , Pipe 90 Degree Bend
90deg 10 SCH40 ASME B 16.9 5D Pipe Fittings Bends , Pipe 90 Degree Bend
Specifications
Brand Name :
Ze Xu
Model Number :
1/2"-48"
Certification :
CE API
Place of Origin :
Cangzhou, China
MOQ :
Quantity(Pieces) 1 - 200 >200
Price :
$50.00
Payment Terms :
L/C, T/T
Supply Ability :
1500 Piece/Pieces per Month 90 ELBOW SMLS , 3'' x6.0mm ASTM A335 P5
Delivery Time :
3-5 days
Packaging Details :
Standard export packaging (outside the plywood box, inside the plastic cloth box)
Connection :
Welding
Size :
1/2"-48"
Radius :
1d 1.5D 3D 5D 7D
Bending Angle :
15deg,30deg,45deg,90deg
Wallthickness :
Sch10-Xxs
Transport Package :
Bulking
Technics :
Pushing
Shipping Port :
Xin Gang Port
Straight Length :
According to The Clients′ Requirement
Description

Supply Carbon Steel Pipe Fitting 90deg WPB-S Dia 10" SCH.40 ASME B 16.93D/5D Pipe Bend/Elbow Manufacturer

Supply carbon Steel Fitting 90deg 3D/5D Pipe Bend/Elbow Manufacturer


1.Standard:ANSI B16.9
2.Material: A234-WPB.A420-WPL6.A234-WP11.A234-WP5,API5LX60,X65,X70
3.BENDING RADIUS:R=3D,5D,10D

MATERIAL:A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.
BENDING RADIUS (R):R=3D,4D,5D,6D,7D,8D,9D,10D.
BENDING ANGLE (θ):15degree,30degree,45degree,60degree,90degree,135degree&180degree,and also could manufacture according the angles given by the clients.
STRAIGHT LENGTH (L):The length between two ends general from 300mm-1500mm, and also can product according to the clients' requirement to product.
OUTER DIAMETER (D): D≤1800mm
WALL THICKNESS (T):T≤120mm
END BEVEL: according to the bevel of welding pipe fittings construction
WEIGHT:WEIGHT (Kg)=[0.0433(D-T)TRθ]/100000+L(the weight of two ends straight bend)
The bend is used to change the direction of run of pipe.its advantage is can match long distance transition requirements,so it is commonly that bends dimension according to customer design. usually,the bends consist of 3D,5D,7D even 12D series.

Product Name
45' 5D Long Radius Elbow BW SA234 GR. WPB-S Dia 10" SCH.40 ASME B 16.9
Material
45' 5D Long Radius Elbow BW SA234 GR. WPB-S
Size
Size 1/4" to 48" Outside Diameter 13.7 mm to 1219 mm
Standard
ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640DIN 2605 DIN2615 DIN2616 DIN2617 GB 12459-90 GB/T13401-92 GB/T21635 GB/T21634 JIS B2311 JISB2312 JISB2313 JISB2316 ISO 3419-1981 ISO5251-1981
Certificates
API5L, ISO 9001:2008,SGS, BV,CCIC
Wall thickness
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Surface Treatment
black paint, varnish, oil, galvanized, anti corrosion coatings
Marking
wooden case & pallet
Pipe Ends
Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)
Pipe Length
1. Single Random Length and double Random Length.
2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length
3. fixed length(5.8m, 6m, 12m)
Packaging
Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.
Test
Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.
Application
liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe.
Advantages
1.Reasonable price with excellent quality
2.Abundant stock and prompt delivery
3.Rich supply and export experience, sincere service
4.Reliable forwarder, 2-hour away from port.

90deg 10
