Welded 72'' ASME B16.9 Stainless Steel Pipe Fittings Tees
Welded 72'' ASME B16.9 Stainless Steel Pipe Fittings Tees
Welded 72'' ASME B16.9 Stainless Steel Pipe Fittings Tees
Welded 72'' ASME B16.9 Stainless Steel Pipe Fittings Tees
Welded 72'' ASME B16.9 Stainless Steel Pipe Fittings Tees
Welded 72'' ASME B16.9 Stainless Steel Pipe Fittings Tees
Specifications
Brand Name :
ZeXu
Model Number :
1/2"-72"
Certification :
API,CE
Place of Origin :
Hebei,China
MOQ :
1 pieces
Price :
USD $20.00 - $38.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per week
Delivery Time :
3-15 work days
Packaging Details :
Wooden Case or Pallet
Materail :
Stainless Steel
Wall Thickness :
SCH10S- STD
Standard :
ANSI B16.9
Surface Treatment :
Rolling Sand
Model NO. :
1/2"-72"
Technics :
Welded
Shipment Term :
by Sea or by Air
Description

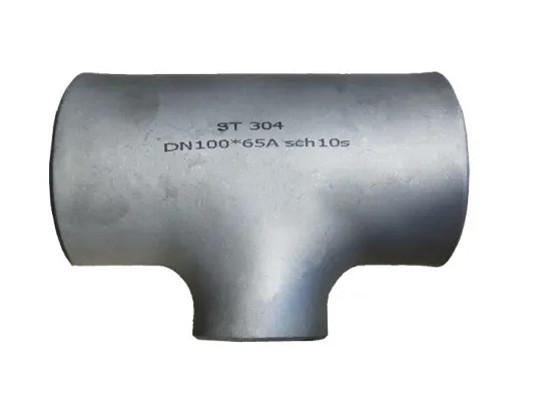

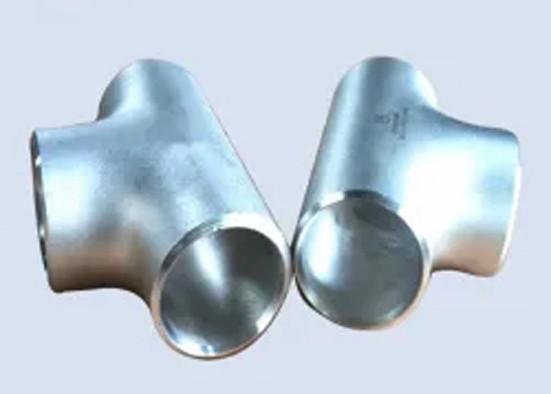

ASME B16.9 Stainless Steel Pipe Fitting Reducing Tee Pipe Fittings Tee

Tee is also called pipe tee or tee pipe, tee joint, etc. Mainly used to change the direction of the fluid, used at the branch pipe of the main pipeline. Can be classified according to pipe diameter. Generally made of carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon leaching, pvc and other materials.

Divided by pipe diameter

The ends of the equal diameter three links are all the same size;
The connecting size of the main pipe of the reducing tee is the same, while the connecting size of the branch pipe is smaller than that of the main pipe.

Divided by material

Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon leaching, pvc, etc.

Divided by production method

Topping, pressing, forging, casting, etc.

NOMINAL PIPE SIZE OUTSIDE DIAMETER CENTER TO END LENGTH
Inch. OD C M
1/2 21.3 25 25
3/4 26.7 29 29
1 33.4 38 38
1 1/4 42.2 48 48
1 1/2 48.3 57 57
2 60.3 64 64
2 1/2 73 76 76
3 88.9 86 86
3 1/2 101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
10 273.1 216 216
12 323.9 254 254
14 355.6 279 279
16 406.4 305 305
18 457.2 343 343
20 508 381 381
22 559 419 419
24 610 432 432
26 660 495 495
28 711 521 521
30 762 559 559
32 813 597 597
34 864 635 635
36 914 673 673
38 965 711 711
40 1016 749 749
42 1067 762 711
44 1118 813 762
46 1168 851 800
48 1219 889 838

Welded 72'' ASME B16.9 Stainless Steel Pipe Fittings Tees
