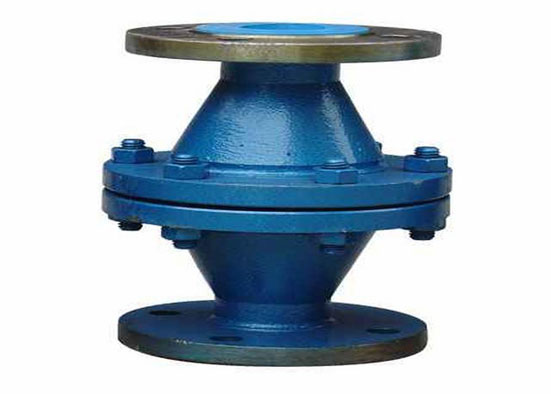

304/316 Stainless Flanged Explosion Proof Steel Flame Arrester
304/316 Stainless Flanged Explosion Proof Steel Flame Arrester
304/316 Stainless Flanged Explosion Proof Steel Flame Arrester
304/316 Stainless Flanged Explosion Proof Steel Flame Arrester
304/316 Stainless Flanged Explosion Proof Steel Flame Arrester
304/316 Stainless Flanged Explosion Proof Steel Flame Arrester
Specifications
Brand Name :
Ze Xu
Model Number :
3/4”-24”
Certification :
API/ISO
Place of Origin :
Yanshan, Hebei, China
MOQ :
1 piece
Price :
It's $50 each
Payment Terms :
T/T
Supply Ability :
10000 pieces per week
Delivery Time :
3-10 working days
Packaging Details :
Wooden box, pallet or according to customer requirements
Application :
Pipeline
Material: :
304/316 Stainless steel
Temperature of Media :
Normal Temperature
Pressure :
:Low Pressure, 1.6 mpa
Power: :
Hydraulic
Media :
Gas
Port Size :
20~600
Seal material :
PTFE
Description

304/316 Stainless Steel Flanged Explosion Proof Flame Arrester Power Plant Accessories

The flame arrester is a very important fitting for the pipe line and storage tank. All of flame arresters are operate on the same principle: removing the heat from the flame as it attempts to travel through narrow passages with walls of metal or other heat-conductive material. For instance, most of the manufacturers are make the flame arresters with the layers of metal ribbons with crimped corrugations.

Flame arresters are used in many industries, such as refining, pharmaceutical, chemical, petrochemical, pulp and paper, oil exploration and production, sewage treatment, landfills, mining, power generation, and bulk liquids transportation. In some cases, the flames involve exothermic (heat-producing) reactions other than oxidation. Processes which generate the combustible or reactive gases include blending, reacting, separation, mixing, drilling, and digesting. These processes involve numerous equipment configurations and gas mixtures.The flame arrester will do great help to protect the pipe line and storage tanks..304/316 Stainless Flanged Explosion Proof Steel Flame Arrester

PRODUCT SPECIFICATIONS

Model PZHQ-B Explosion Group BS 5501: IIA, IIB, IIC
Size DN15 - DN600 GB81-59; PN0.6-PN2.5;FF/RF Temperature

CS: -30℃ ~ + 350℃

SS : -80℃ ~ + 480℃
Body Material A3 304 304L 316 316L Jonit Type Flange / Threaded / Butt Welding
Trim Material 304 304L 316 316L Flanges HG GB SH HGJ JB ANSI JIS
Bolt / Nut 20# 304 304L 316 316L Manufacture Inspection GB5908-86 SY7511-87
Diaphragm (P/V) NBR PTFE Metal Gasket Coating

CS : Paint

SS : natural color

304/316 Stainless Flanged Explosion Proof Steel Flame Arrester

304/316 Stainless Flanged Explosion Proof Steel Flame Arrester
