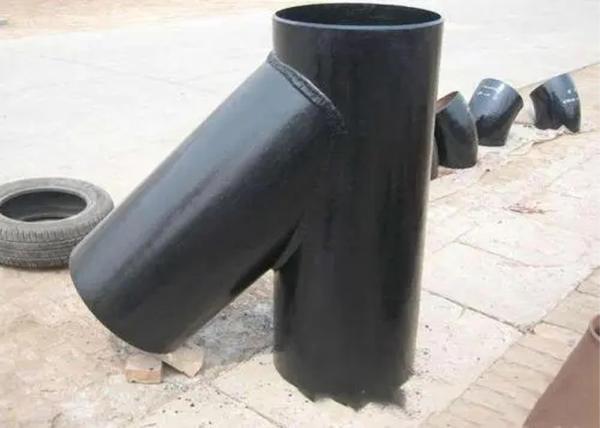

Pipe Fitting Tees, A106B 30° Y-Shaped Tees, Oblique Tees, Special-Shaped Tees Can Be Made According To Drawings

The three links are pipe fittings and pipe connectors. Also called three-way pipe fittings or three-way pipe fittings, three-way joints, used in the branch pipe of the main pipeline.

Tee has equal diameter and reducing diameter. The connecting ends of equal diameter tee are all the same size; the main pipe connecting size of reducing tee is the same, while the connecting size of branch pipe is smaller than that of main pipe. Tee is a pipe fitting used at the branch of the pipeline. For the manufacture of tee joints with seamless pipes, the currently commonly used processes include hydraulic bulging and hot press forming.

Hot press forming: Tee hot press forming is to flatten a tube blank larger than the diameter of the tee to the size of the tee diameter, and open a hole in the stretched branch tube; the tube blank is heated and placed in the forming mold. A punching die for stretching the branch pipe is installed in the tube blank; the tube blank is radially compressed under the action of pressure. During the radial compression, the metal flows in the direction of the branch tube and forms a branch tube under the stretching of the punching die. The whole process is formed by the radial compression of the tube blank and the stretching process of the branch tube. Different from the hydraulic bulging tee, the metal of the hot-pressed tee branch is compensated by the radial movement of the tube blank, so it is also called the radial compensation process.

Our company specializes in producing: national standard tees, non-standard tees, special-shaped tees, American standard tees, German standard tees, etc.; various carbon steel materials of straight seam seamless tees, straight seam tees, thick-walled tees Pass.

In addition: Our factory can design and produce all kinds of difficult tee pipe fittings, any angle of the same diameter oblique tee, and different diameter oblique tee. The materials are: 10#, 20#, A3, Q235A, 20g, 20G, 16Mn, ASTM, A234, etc.

Professional production: seamless elbows, butt-welded Y-shaped tee elbows, hot-pressed elbows, seamless steel pipes, elbows, tees, flat welding flanges, butt welding flanges, flanges, etc.

Fulfilling standards: It can be designed and produced in accordance with ANSI, JIS, DIN, GB, SHJ, HGJ and other standards, and can be designed and produced according to customer needs.

Application areas: widely used in petroleum, chemical, nuclear power plants, food production, construction, shipbuilding, papermaking, medicine and other occupations.

We are willing to cooperate sincerely with guests and friends from all over the world, and work together to create a better future, common development and brilliance together! .... Y type tee
