Purge Test 12Cr1MoV Steam Blowing Target Plate Device High Pressure Shaft Aluminum
Purge Test 12Cr1MoV Steam Blowing Target Plate Device High Pressure Shaft Aluminum
Purge Test 12Cr1MoV Steam Blowing Target Plate Device High Pressure Shaft Aluminum
Purge Test 12Cr1MoV Steam Blowing Target Plate Device High Pressure Shaft Aluminum
Purge Test 12Cr1MoV Steam Blowing Target Plate Device High Pressure Shaft Aluminum
Purge Test 12Cr1MoV Steam Blowing Target Plate Device High Pressure Shaft Aluminum
Specifications
Brand Name :
Ze Xu
Model Number :
based on customer's needs
Certification :
ISO9000
Place of Origin :
Yanshan, Hebei, China
MOQ :
1Pcs
Price :
USD 10 per piece
Payment Terms :
T/T
Supply Ability :
100,0000 tons per month
Delivery Time :
3-7 Working day
Packaging Details :

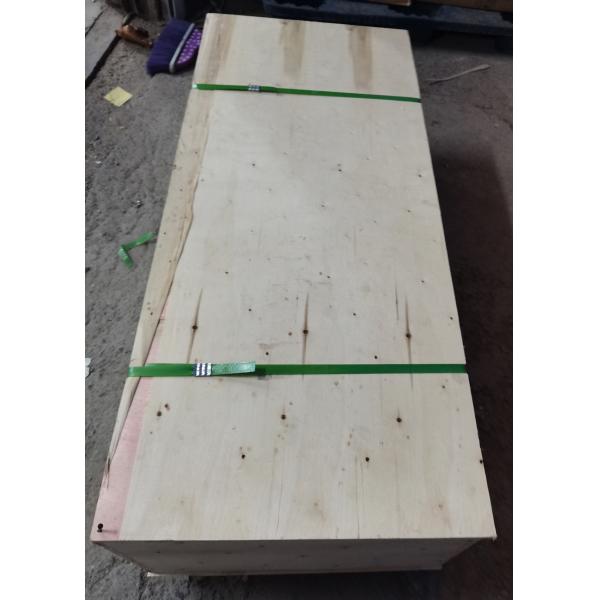

Wooden box, pallet or according to customer requirements
Target shaft material :
alloy, carbon steel
Alias :
target device
pressure :
low and medium pressure, high pressure
use :
Purge test of power plant and petroleum pipeline
Target thickness: :
5mm 6mm 8mm 10mm 12mm
Target board material :
aluminum, copper, carbon steel
Description

Purge Test 12Cr1MoV Target Plate Device High Pressure Target Plate Shaft Aluminum Target Plate

The working principle of the target board:

The target plate device is a device used to fix the target plate. The target plate is a metal plate that is manufactured according to the material and size and is used to inspect the torch.

The target plate is installed in the temporary exhaust pipe (or at the exhaust port) at the end of the purged pipe. The material of the target plate can be made of aluminum plate. Its width is about 8% of the inner diameter of the exhaust pipe and the length runs through the pipe. For the inner diameter, under the premise of ensuring the blowpipe coefficient, the target board should be replaced twice for inspection. The particle size of the impact spot on the target board is not more than 0.8mm, and the visible spot is not more than 8 points, and the purging is considered qualified.

Target board material: The material of the internal target of the target board is aluminum plate, and the material of the outer shell is 12Cr1MoV. Other materials can be determined according to customer requirements.
Target board specification parameters: According to the specifications and dimensions provided by the customer, the target board interface (flange connection or flangeless connection)

Purge Test 12Cr1MoV Steam Blowing Target Plate Device High Pressure Shaft Aluminum

Purge Test 12Cr1MoV Steam Blowing Target Plate Device High Pressure Shaft Aluminum
