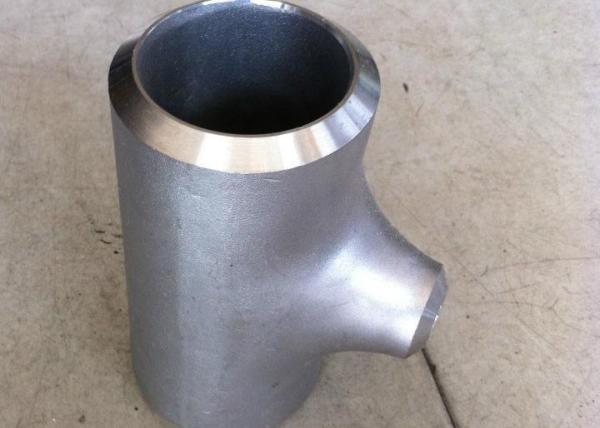

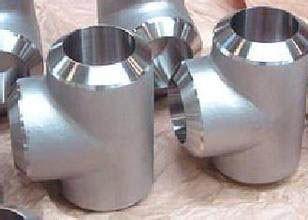

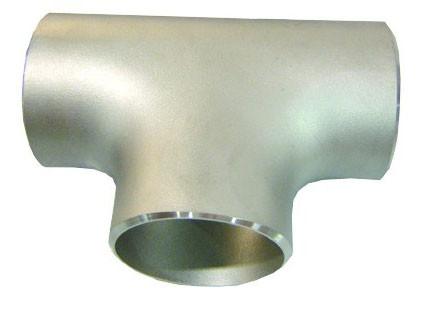

150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347
150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347
150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347
150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347
150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347
150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347
150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347
150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347
Specifications
Brand Name :
Ze Xu
Model Number :
3/4”-64”
Certification :
API、ISO
Place of Origin :
Yanshan, Hebei, China
MOQ :
1 PCS
Price :
USD 10 per piece
Payment Terms :
T/T
Supply Ability :
10,000 pieces per month
Delivery Time :
3-10 working days
Packaging Details :
Wooden box, pallet or according to customer requirements
Connection :
Welding
Shape :
Equal
Head Code :
round
Size :
1/2'' ~ 48'' Sch5S~XXS
Grade :
WP321/347/304/316/321/Nikel alloy
Pressure :
150-2500LBS
Type :
Butt Welded
Usage :
Pipe conection
Description

ASME B16.5 WP321 / 347 150 # Stainless Steel Pipe Fitting Equal Tee

product description
Tee is also called pipe tee or tee pipe, tee joint and so on. Mainly used to change the direction of the fluid, used at the branch pipe of the main pipeline. It can be classified according to the size of the pipe. Generally made of carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon leaching, pvc and other materials.
Tee is a kind of chemical pipe fitting with three openings, namely one inlet and two outlets; or two inlets and one outlet. There are T-shaped and Y-shaped, with equal diameter nozzles and reducing nozzles, which are used for Where three identical or different pipelines converge. The main function of the tee is to change the direction of the fluid.
The hydraulic bulging of the tee is a forming process in which the branch pipe is expanded by the axial compensation of the metal material. The process is to use a special hydraulic press to inject liquid into the tube blank with the same diameter as the tee, and to squeeze the tube blank through the synchronous centering movement of the two horizontal side cylinders of the hydraulic press. The volume of the tube blank becomes smaller after being squeezed. The pressure of the liquid increases as the volume of the tube becomes smaller. When the pressure required for the expansion of the three-way branch tube is reached, the metal material flows along the inner cavity of the mold under the dual action of the side cylinder and the liquid pressure in the tube blank to expand the branch tube.

150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347150 # Stainless Steel Equal Tee Pipe Fitting Asme B16.9 Wp321 / 347

BUTT-WELDING PIPE FITTINGS DETAILS
MATERIAL Carbon Steel :
ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn,
DIN St37, St45.8, St52.4,St.35.8,St.35.8.
Stainless Steel:
1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti
00Cr17Ni14Mo2 304 304L 316 316L
Alloy Steel:
16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,
A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70
STANDARD ASTM / JIS / DIN / BS / GB/GOST
MODEL 1.Tee(Straight and Reducing) 2.180 DEG Return

3. Elbow (45/90/180 DEG)

4. 4.Cap
5. Reducer(Concentric and Eccentric)
TYPE Seam Or Seamless
ELBOW DEGREE 45 degree, 90 degree, 180 degree
SURFACE Black Paint, Anti Rust Oil, Hot-Dipped Galvanize
WALL THICKNESS SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60,
SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM
SIZE 1/2"-48"(Dn15-Dn1200)
CONNECTION Welding
SHAPE Equal, Reducing
CERTIFICATE ISO9001
APPLICATION Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
RELATED PRODUCTS 1. Carbon steel nipples and sockets 2. Flanges
3. Malleable iron pipe fittings 4. Pipes
5. High-pressure fittings 6. Valves
7. P.T.F.E .thread seal tape 8. Brass fittings
9. Ductile iron pipe fittings 10. Copper fittings
11. Sanitary fittings, etc,. 12. Grooved fittings
Customers’ drawings or designs are available.
PACKAGE 1> 1/2" - 2" in cartons.
2>Above 2" in wooden cases.
Big size is workable by pallets.
DELIVERY DETAILS According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
