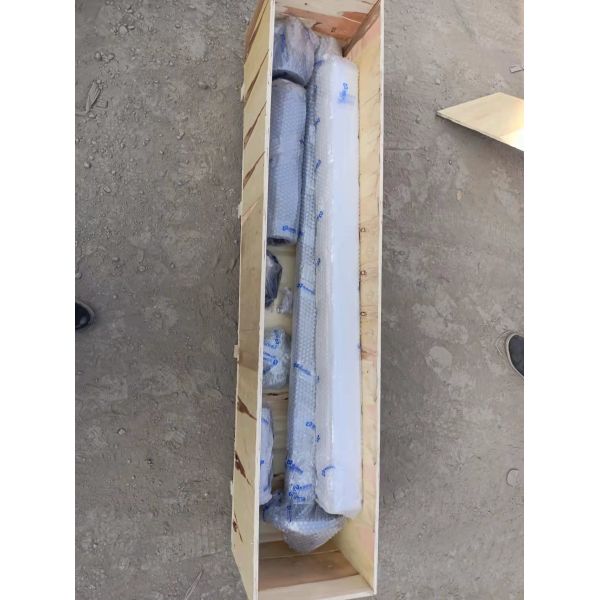

New High-Pressure Steam Purging Target Plate Device, Target Plate Axis, Target Plate Holder, Test Device

The commonly used target plate device has flange type, straight shaft type, tandem shaft type and frame type. The type is internal test target plate, and the frame type is external test target plate.

The target board is used to place the target board. Pay attention to the structure and technology of the target board, and have enough strength. Its structure should be simple, good sealing, flexible operation, and the exchange of the target board should be safe and convenient.

After the installation of all equipment in thermal power plants, it is generally necessary to blow pipes through the boiler to purge the pipes with steam. The purpose is to remove the debris left in the equipment and pipes during the manufacturing, transportation and installation of the equipment and pipes, and to prevent the boiler from overheating during operation. The blower and reheater block and break the pipe, and at the same time prevent debris from entering the steam turbine to cause damage to the blades and valves. Therefore, the boiler and the steam turbine need to be tested for trial operation before the safe operation of the boiler and the steam turbine. More valued equipment.

The working principle of the target board:

The target plate device is a device used to fix the target plate. The target plate is a metal plate that is manufactured according to the material and size and is used to inspect the torch.

The target plate is installed in the temporary exhaust pipe (or at the exhaust port) at the end of the purged pipe. The material of the target plate can be made of aluminum plate. Its width is about 8% of the inner diameter of the exhaust pipe and the length runs through the pipe. For the inner diameter, under the premise of ensuring the blowpipe coefficient, the target board should be replaced twice in succession. The particle size of the impact spot on the target board is not more than 0.8mm, and the visible spot is not more than 8 points, and the blowing is considered qualified.

Target board material:

The material of the internal target of the target board is aluminum plate, and the material of the outer shell is 12Cr1MoV. Other materials can be determined according to customer requirements.

Target board specification parameters:

According to the specifications and dimensions provided by the customer, the target board interface (flange connection or flangeless connection)
