Specifications
Brand Name :
DEYE
Model Number :
DY-BFV-1001
Certification :
ISO9001:2015 PED
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD2-USD20000 each
Payment Terms :
T/T, L/C, D/P
Supply Ability :
1000pcs one month
Delivery Time :
20 days for usual order, 7 days for stocked items
Packaging Details :
carton box+ ply wooden cases or carton+ Pallets
Design Standard :
API609 BS5155 AWWA C504
Face to Face :
EN558 Series 14, EN558 Series 13, ISO5752-13. ISO5752-14, AWWAC504
Material :
GGG40 GGG50 WCB STAINLESS STEEL
Seal :
Replaceable EPDM, NBR, PTFE, VITON
Pressure :
PN6, PN10, PN16, PN20, PN25, 125PSI, 150PSI, 225PSI , CL150LBS
Test Standard :
API598 EN12226-1
Description

Series No. BFV-1001

Double Eccentric flanged butterfly valves, the axis of the valve stem deviates from the center of the butterfly plate and the center of the body. The effect of double eccentricity enables the butterfly plate to quickly detach from the seat after the valve is opened, which greatly eliminates unnecessary excessive squeezing and scraping between the butterfly plate and the valve seat, reduces the opening resistance, reduces wear and improve Seat life.

Quick Detail

Design standard: API 609. /BS5155

Face to face: EN558 Series 13/14, ISO5752 Series 13/14, AWWAC504

Bi-direction Seal,

Renewable seat Design

Mode of operation: Gearbox.

Test and inspection: API 598. EN1226

Product Range

Available Body Material: Ductile Iron , Carbon steel, Stainless steel, Alloy steel.

Available Body Seat Ring: SS304, SS316, STL, Duplex SS 2205/2507, Bronze

Optional Disc Seat Ring: EPDM, NBR, PTFE, Teflon. Neoprene

Optional End connection: Wafer, Lug, Flanged.

Face to face: EN558 Series 13/14, long type or short type

Normal diameter: 4"~96" (DN100~DN2400).

Pressure range: 150PSI/225PSI (PN10, PN16, PN25).

Available Operation: Gearbox, Electric, pneumatic actuator

Working temperature: -46℃~+200℃.

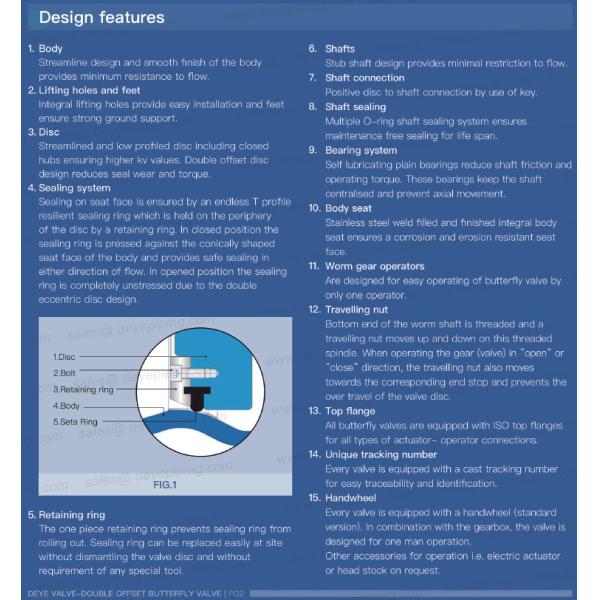

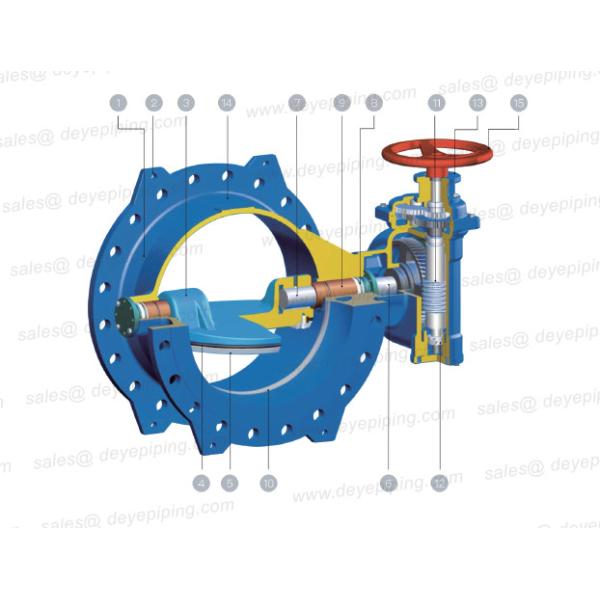

Construction of Double Eccentric Butterfly valves

GGG40 GGG50 Wras Ductile Iron Double Eccentric Butterfly Valve With PN10 PN16 PN20 PN25

GGG40 GGG50 Wras Ductile Iron Double Eccentric Butterfly Valve With PN10 PN16 PN20 PN25

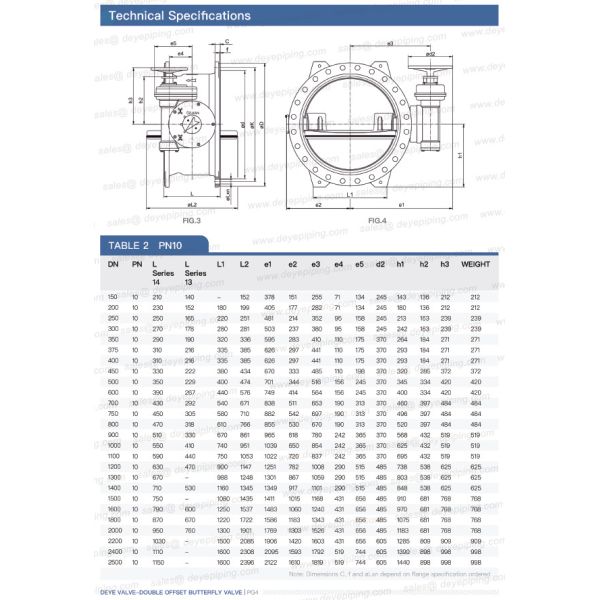

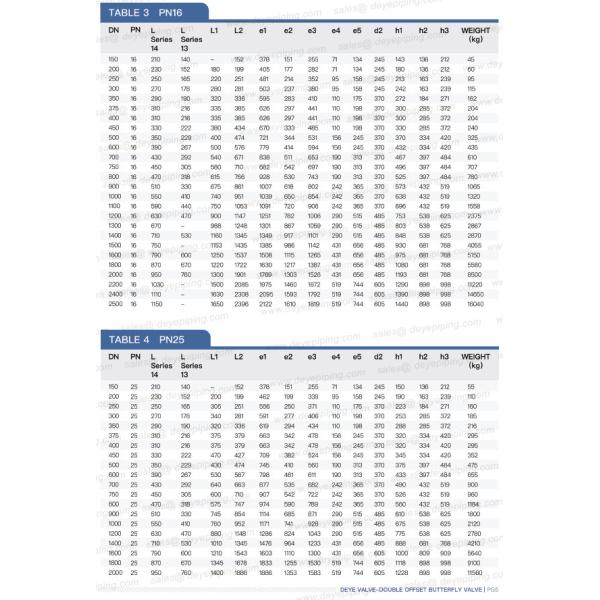

Dimension List of the double offset butterfly valve

GGG40 GGG50 Wras Ductile Iron Double Eccentric Butterfly Valve With PN10 PN16 PN20 PN25GGG40 GGG50 Wras Ductile Iron Double Eccentric Butterfly Valve With PN10 PN16 PN20 PN25

Application:

The double eccentric butterfly valve uses an eccentric structure design, which is widely used in the fluid piping system of water supply and drainage, sewage, portable water, drinking water, construction, textile, papermaking, hydropower, metallurgy, energy and other projects for regulation and interception.

GGG40 GGG50 Wras Ductile Iron Double Eccentric Butterfly Valve With PN10 PN16 PN20 PN25
