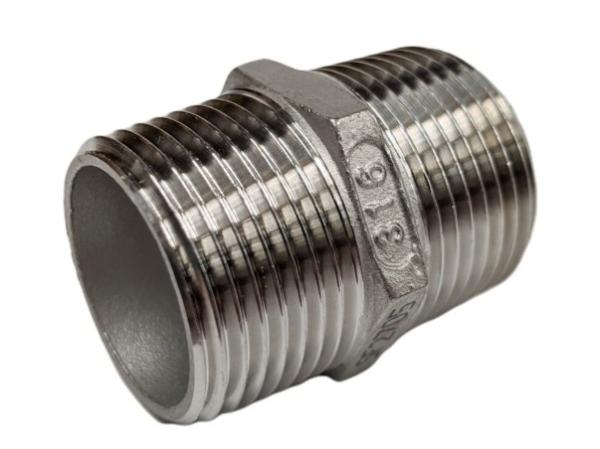

Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Specifications
Brand Name :
DEYE
Model Number :
STH-TH-7
Certification :
ISO9001:2015 PED
Place of Origin :
China
MOQ :
10pcs
Price :
USD0.5-USD50 for each pc
Payment Terms :
T/T, L/C, D/P
Supply Ability :
1000000PCS one month
Delivery Time :
7 days for stock items
Packaging Details :
Cartons+Ply-wooden cases, Pallets
Thread :
DIN 2999, ISO 7/1, ISO 228, NPT, BSPT, BSP
Casting :
investment casting
Material :
304/304L, 316/316L
Size :
1/4"-4"
Description

Stainless Steel 150# Screwed Hex Nipple to Connect theaded Pipes

Hexagon nipples are short connecting pieces for pipes with two threadedends. In piping, a nipple is a fitting.consisting of a short piece of pipe.usually provided with a male pipe thread at each end, for connecting two valves or two pipes, Hex nipples connect with female pipes or fittings and connects with NPT ANSI B.20.1 threads or BSPT ends with ISO 7/1, BS21 , DIN2999 standard, which create a tighter seal than straight threads.

Reducing Hex. Nipples means Hex. Nipples with two different size ends for connection, one ends to connect biger size pipes or pipefittings and the other ends to connect smaller sizes Pipefittings

Product Information/Product Description/Basis Information/Specification

Description 　Stainless Steel 150# Screwed Pipe Fittings for Hex Nipple
Product name threaded NPT BSPT 150PSI Elbows, Reducers, Coupling, Plug, Bushing, Union, Tee, cross, caps Stainless Steel Screwed Pipe Fittings Threaded Pipe Fittings
Union, Hex Nipple, bushing, reducer socket, 45 90 degree elbow, Square Head plug, coupling, Y pipe joints tee
Size 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8"
Gasket NBR, FKM
Thread BSPT,BSPP, NPT,PS , DIN
Material stainless steel201,202, stainless steel304, stainless steel 316
Casting Method Investment precision casting, CNC machine
Application Oil, Water, Industrial, Chemical
Test pressure Usually 150PSI
Package pcs/polybag, polybag/carton, cartons/pallet or according to your requirement
Advantages 1.OEM and Customized service can be provided
2. With experience,quality guaranteed
3. Approved by ISO9001:2015
4. With independent open mold capacity, OEM supposed

Technology/ Technical Data Sheets

Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
90° Elbow 90° Street Elbow 45° Elbow
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Tee Cross Hex. Nipple
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Hex. Plug Square Plug Hex. Cap
Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes
Round Cap Coupling (Socket) Half Coupling

SIZE L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12
1/8” 16 18 16 17 25 22 18 17 13 - - -
1/4” 19 19 19 20 30 30 18 21 15 15 25 11
3/8” 24 20 25 24 34 31 19 23 17 17 26 12
1/2” 25.5 20 28 26 37 35 22 24 19 17.5 32 15
3/4” 29.5 23 32 30 43 39 24 25 18 20.5 33 17
1” 36 26 39 36 51 45 27 27 20.5 23.5 38 19
1-1/4” 43.5 30 45 44 59 48 26 34.5 22 25.5 44 22
1-1/2” 46.5 33 49 47 64 50 29.5 35.5 23 26.5 44 23
2” 55.5 38 57 54 74 57 32 36 25.5 28 50 25
2-1/2” 66 45 69 66 90 64 36.5 43 28.5 31 58 29
3” 74 52 - 74 99 70 37.5 46.5 30.5 33 66 33
4” 90 64 - 90 115 79 42 52 38.5 37 72 36

Production Process

Stainless Steel 150# Screwed Hex. Nipples to connect threaded pipes

Common used Material Grade

SS316 Chemical Composition

ASTM A351 CF8M, SS316 Chemical Composition in %

ASTM A351 CF8M, SS316 Chemical Composition in %
　 C Mn P S Si Ni Cr Mo
Min. 　 　 　 　 　 9.0 18.0 2.00
Max. 0.080 1.500 0.040 0.040 1.500 12.0 21.0 3.00

SS316 Mechanical Properties of the Fittings at room temperature

SS316/SS316L Tensile Strength Rm (N/mm2) Upper Yield Point ReH (N/mm2) min. Elongation at rupture A5
(%)
min.		 Hardness Test (HRB)
Min. 485 205 30 　
Max. 　 　 　 80

SS304 Chemical Composition

ASTM A351 CF8, SS304 Chemical Composition in %
　 C Mn P S Si Ni Cr Mo
Min. 　 　 　 　 　 8.0 18.0 　
Max. 0.080 1.500 0.040 0.040 2.000 11.0 21.0 0.50

SS304 Mechanical Properties of the Fittings at room temperature

SS304/SS304L Tensile Strength Rm (N/mm2) Upper Yield Point ReH (N/mm2) min. Elongation at rupture A5
(%)
min.		 Hardness Test (HRB)
Min. 485 205 35 　
Max 　 　 　 　

Application/ Usage:

Threaded pipe fittings are commonly used in Water gas pipes, small diameter water pipes, compressed air pipes and low-pressure steam pipes.
