30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
Specifications
Power :
0.14Kw/50Hz
Max Flow :
440L/min
Max Pressure :
-620mmHg
Warranty :
one year warranty
Place of Origin :
China
Brand Name :
Microvacuum
Certification :
CE
MOQ :
10pcs
Price :
50~100USD
Packaging Details :
carton box
Delivery Time :
7~10 days
Payment Terms :
L/C , T/T
Supply Ability :
5000pcs per month
Description

Product Features:

1. Small size, light weight

2. High efficiency and energy saving.

3. Safety and environment friendly

4. Low noise. low temperature rise, low vibration

5. Outstanding performance at a reasonable price

6. Security without oil, 100% maintenance-free

7. AC 110 V or 220 V

Application:

* Medical suction device, dental equipment

* Various instruments

* Automatic machine assembly

* Vary kinds of machinery.

Specification:

MODEL
 VOLTAGE
 FREQUENCY
 POWER
 AMPERAGE
 PRESSURE
 FLOW
 NOISE
 WEIGHT
UNIT V Hz Kw A mmHg L/min dB Kg
HP-30V 1Φ 50 0.12 1.7 -620 36 50 3.5
110V 60 0.10 1.0 -620 44 50
1Φ 50 0.14 0.9 -620 36 50 3.5
220V 60 0.12 0.6 -620 44 50

Applications:

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V

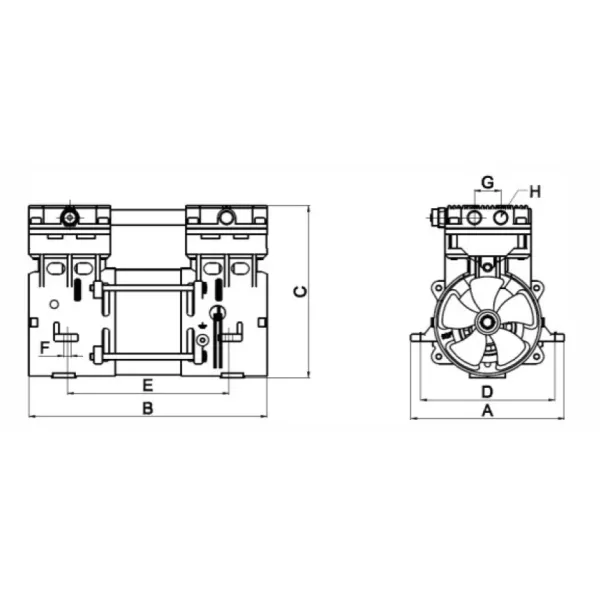

UNIT:mm

MODEL A B C D E F G H
HP-30V 94 179 140.5 94 70 M6 20 NPT1/4"
