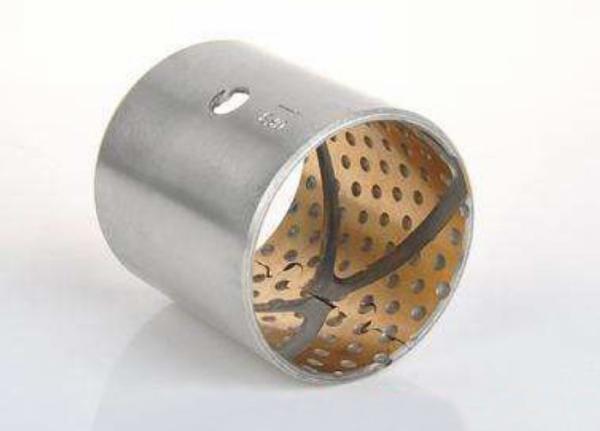

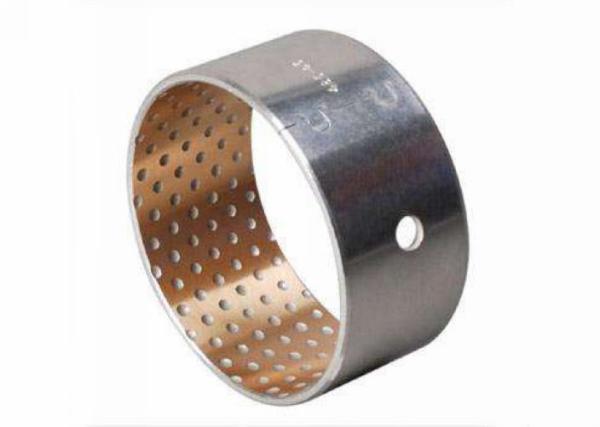

Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets
Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets
Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets
Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets
Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets
Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets
Specifications
MOQ :
negotiated
Payment Terms :
T/T
Delivery Time :
negotiated
Packaging Details :
Cartons or Pallets
Brand Name :
TOB Bimetal Bearings
Certification :
ISO 16949
Place of Origin :
China
Price :
negotiated
Supply Ability :
negotiated
Material :
Low Carbon Steel Wth Tin-Lead-Bronze alloy (CuSn10Pb10)
Types :
Wrapped bushes, Thrust washer and Bushes on connecting rod level of gas engine, etc.
Application :
con-rod of automobile engines, transmission gear-box, construction & agriculture machinery etc.
Alloy Hardness :
HB 60~90
Max. Load :
150N/mm²
Max. Working Temperature :
Grease Lubrication is 150℃, Oil Lubrication is 250℃
Description


Bimetal Bearings , Low Carbon Steel Wth CuSn10Pb10

CuSn10Pb10 Bimetal Bearings is backed with high quality low carbon steel with Tin-Lead-Bronze alloy (CuSn10Pb10) sintered on its surface. To effectively decrease abrasion, CuSn10Pb10 Bimetal Bearings' alloy surface can be machined with ball oil sockets for easier oil storage. When necessary, an anti-erosive coating can be plated on the steel back. CuSn10Pb10 Bimetal Bearings can be applied to conditions of mediate load with mediate or high running velocity and conditions with enormous impact load. In mechanical application, CuSn10Pb10 Bimetal Bearings is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine, etc.


Physical and Mechanical Performance

Performance Index Data Performance Index Data
Max. Load 150N/mm² Mating Axis Hardness ≥53 HRC
Linear Velocity Grease Lubrication 2.5 m/s Roughness Ra=0.13~0.63
Oil Lubrication 5 m/s Max. Working Temperature Grease Lubrication 150℃
Max. PV value Grease Lubrication 2.8N/mm²·m/s Oil Lubrication 250℃
Oil Lubrication 10N/mm²·m/s Friction Coefficient 0.05~0.15
Anti-tensile Strength 185 N/mm² Heat-conducting Coefficient 47 W/(m*k)
Alloy hardness HB 60~90 Heat-expansion Coefficient 18*10^-6k


Alloy Chemical Compositions

Content Cu Pb Sn Zn P Fe Ni Sb Others
Remainder 9-11 9-11 0.5 0.1 0.7 0.5 0.2 0.5




Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets
Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets

Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets
