ISO 16949 Oilless Bushing Plate For Movable Plate And Injection Table
ISO 16949 Oilless Bushing Plate For Movable Plate And Injection Table
ISO 16949 Oilless Bushing Plate For Movable Plate And Injection Table
ISO 16949 Oilless Bushing Plate For Movable Plate And Injection Table
ISO 16949 Oilless Bushing Plate For Movable Plate And Injection Table
ISO 16949 Oilless Bushing Plate For Movable Plate And Injection Table
Specifications
Brand Name :
TOB Cast Bronze Bearing
Certification :
SEA430B,C86300,DIN1709,FIBRO
Place of Origin :
China
MOQ :
negotiated
Price :
negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers
Delivery Time :
negotiated
Packaging Details :
Standard Export Cartons or Pallets
Material :
Tin phosphorus bronze
Characteristics :
Low-maintenance and maintenance-free plain bearings
Description

Bronze Plain Bearings

WE MANUFACTURE SLIDING BEARING FOR COMPREHENSIVE ASSEMBLY FOR RAILWAYS.

Graphite Filled Bronze Bushes Flange Cast Bronze Solid Lubricant Bearings Standard Size Chemical Resistant

We are offering our clients premium quality Graphite Filled Bronze Bushes, which is self-lubricant and maintenance free. Provided bushes are machined out of continuous cast bronze and plugged with solid lubricant plugs. These bushes are an excellent service and wear resistance. Provided bushes used where normal oil and grease lubricants do not work with corrosive liquids and gases and where contamination by conventional lubricants is undesirable. Our provided Graphite Filled Bronze Bushes exhibits an excellent service and wear resistance.

Description

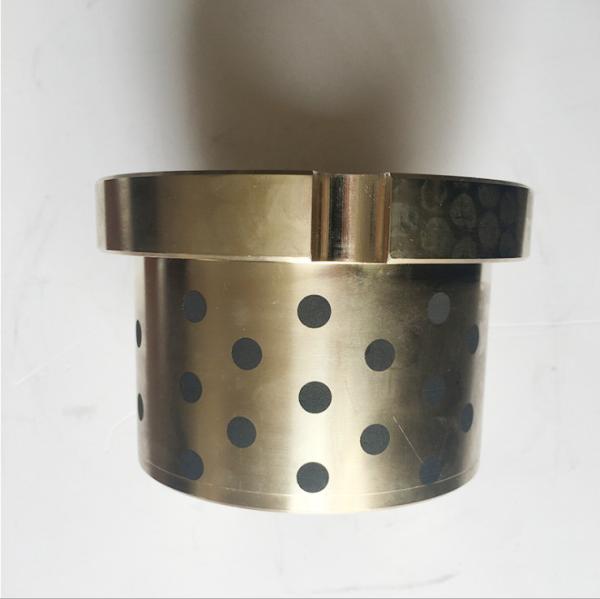

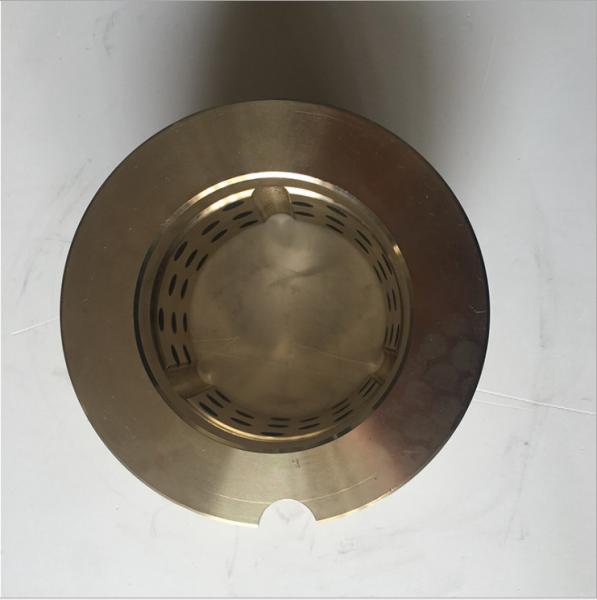

TOB-50 Flange Solid Bronze Metallic Self-lubricating Bearings

Custom low price cast bronze flange bearing graphite bushing

Copper Cast Bronze Bearings / Flanged Bronze Bearings

Cast Bronze Bearing with Graphite Plugs

Characteristics


TOB-50 Flange

1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃

Strusture

TOB-50 Flange material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

Technical Data

Grade 50# 50S1 50S2 50S3 650S5
Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAI10Ni5Fe5 CuSn12 CuZn25AI5Mn4Fe3
Density 8 8.9 7.8 8.9 8
Hardness ≥210 ≥70 ≥150 ≥75 ≥235
Tensile strength ≥750 ≥250 ≥500 ≥270 ≥800
Yield strength ≥450 ≥90 ≥260 ≥150 ≥450
Elongation ≥12 ≥13 ≥10 ≥5 ≥8
Coefficient o linear expansion 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.9×10-5/℃
Max.Temp. -40~+300℃ -40~+400℃ -40~+400℃ -40~+400℃ -40~+300℃
Max.dynamic load 100 60 50 70 120
Max.speed(Dry) 15 10 20 10 15
N/mm²*m/s(Lubrication) 200 60 60 80 200
Compression deformation < 0.01 mm < 0.05mm < 0.04mm < 0.05mm < 0.005mm

Chemical Compositions

Product NO. Chemical Compositions
VSB-50 Cu Zn Al Fe Mn Si Ni Sn Pb
60~66 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2

Bearing forms available in standard dimensions

ISO 16949 Oilless Bushing Plate For Movable Plate And Injection Table

  • Cylindrical bushes

  • Flanged bushes

  • Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Typical Applications

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...

CONSTRUCTION MACHINERY SPECIAL FOR BRONZE GLEITLAGER BEARING

INJECTION MOLDING MACHING FOR BEARING

AUTO INDUSTRY BRONZE GLEITLAGER BUSHINGS
