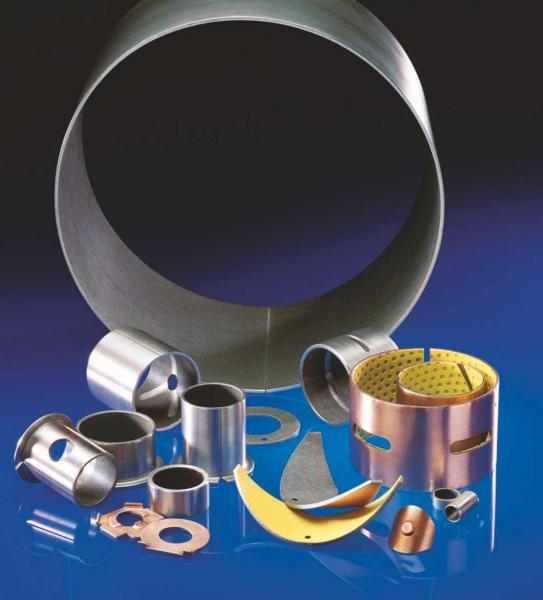

Tin Bronze Lead Bimetal Bearing Bushes High Hardness
Tin Bronze Lead Bimetal Bearing Bushes High Hardness
Tin Bronze Lead Bimetal Bearing Bushes High Hardness
Tin Bronze Lead Bimetal Bearing Bushes High Hardness
Tin Bronze Lead Bimetal Bearing Bushes High Hardness
Tin Bronze Lead Bimetal Bearing Bushes High Hardness
Specifications
Brand Name :
TOB Bimetal Bearings
Certification :
Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Place of Origin :
China
MOQ :
negotiated
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
negotiated
Delivery Time :
negotiated
Packaging Details :
Cartons or Pallets
Material :
JF800, Bimetallic Bearings, Alloy: CuPb10Sn10 / SAE797,Low Carbon Steel Wth Tin-Lead-Bronze Alloy (CuSn10Pb10)
Application :
Industrial - agricultural machinery, earthmoving engineers, textile machinery, pneumatic equipment, mechanical handling and lifting equipment, hydraulic cylinders, road equipment, etc
Size :
IMPERIAL & METRIC SIZES,Standard Size Available
Type :
Cylindrical bushes Thrust washers, Strips Or Special Designs
Packing :
export & import bimetal bushings International carton standard
Description

Tin Bronze Lead Bimetal Bearing Bushes High Hardness

Bushing Bearings - Find The Tuleje Cylindryczne

Bimetal bearing supplier from China, Tuleje cylindryczne, łożyska katalog

SLIDING BEARINGS
  • universal bearing material
  • material: steel-sintered bronze-Pb+PTFE
SLIDING BEARINGS
  • leadfree sliding material
  • material: steel/bronze
SLIDING BEARINGS DUB
  • universal bearing material (on bronze backing material)
  • material: bronze-sintered bronze-Pb+PTFE
SLIDING BEARINGS DEVA.GLIDE
  • canal locks, weirs, offshore
  • material: bronze with solid lubricant pockets
SLIDING BEARINGS MBZ
  • agriculture
  • material: CuSn8 with lubrication indentations
SLIDING BEARINGS DX
  • przeznaczony do pracy ze smarem lub olejem
  • materiał: stal-spiek-POM z kieszonkami smarnymi
SLIDING BEARINGS FOR SPECIAL APPLICATION HX
  • transport industry
  • material: steel-sintered bronze-PTFE+PEEK+fillers

WE ASSIST

IN THE ENGINEERING BIMETAL BEARINGS BUSHING DESIGN PROCESS
AND UNDERTAKE NON-STANDARD PROJECTS


THIN-WALLED BIMETALLIC BEARINGS WITH STEEL-BACKED BEARINGS CHEAP PRICE MANUFACTURER IN CHINA.

Our company has advantages

Tin Bronze Lead Bimetal Bearing Bushes High Hardness

LARGEST SELECTION
OF SLIDING BUSHING MATERIALS IN THE COUNTRY


You can find the largest bimetal bearings Automobile Plain Bushes at viiplus china. Choose from your bushing bearings and order right away.JF bimetal composite bearings with high quality low carbon steel as substrate, the surface of the sinter with low friction properties of copper alloy (CuPb10Sn10 CuPb6Sn6Zn3 CuPb24Sn4, CuPb30) as wear-resisting layer of bearing, can need according to the operating conditions of copper alloy surface processing of various types of oil tank, oil hole, hole, etc., in order to suit to cannot continue to go hard or go occasion.The material can get good bonding strength and best bearing capacity through secondary sintering and secondary extrusion.

BIMETAL BUSHINGS BIMETAL BUSHINGS BIMETAL BUSHINGS BIMETAL BUSHINGS BIMETAL BUSHINGS BIMETAL BUSHINGS
CuPb10Sn10 CuPb24Sn4 CuPb6Sn6Zn3 CuSn10 CuSn6.5P AlSn20Cu
Cu allowance allowance allowance allowance allowance 0.7~1.3
Pb 9.0~11.0 21.0~27.0 2.0~4.0 0.1 0.1 -
Sn 9.0~11.0 3.0~4.5 5.0~7.0 9.0~10.0 6.0~6.8 17.5~22.5
Zn 0.5 0.5 5.0~7.0 0.3 0.3 -
P 0.1 0.1 0.1 0.1 0.1~0.3 -
Fe 0.5 0.7 0.6 0.5 0.6 0.7
Ni 0.5 0.3 0.3 0.5 0.5 0.1
Al - - - - - allowance
Other 0.5 0.5 0.5 0.5 0.5 0.5

Part of the bearing material composition of the structure


Tin Bronze Lead Bimetal Bearing Bushes High Hardness

With carbon steel as matrix, surface sintered bronze powder; It is suitable for rocking motion and rotating motion under high load and low speed. It has the characteristics of low friction coefficient, good wear resistance, long service life and good bite resistance. The surface of copper alloy layer can be processed into various types of oil groove, oil storage pit and oil hole according to the working conditions, so as to be suitable for occasions where refueling is not possible or difficult.

Application


Products are widely used in construction machinery used for supporting wheel shaft sleeve, supporting belt wheel shaft sleeve, tensioning wheel shaft sleeve, automotive balance shaft sleeve, steel plate sleeve, steering knuckle-main shaft sleeve, connecting rod shaft sleeve, valve rocker arm shaft sleeve, camshaft shaft sleeve, differential shaft sleeve, thrust gasket, piston pump side piece, gear pump side piece.

Product Tags:

High Hardness Bimetal Bearing Bushes

CuPb10Sn10 Copper Bimetal Bearing Bushes

Tin Bronze Lead Bimetal Bearing Bushes

Tin Bronze Lead Bimetal Bearing Bushes High Hardness
