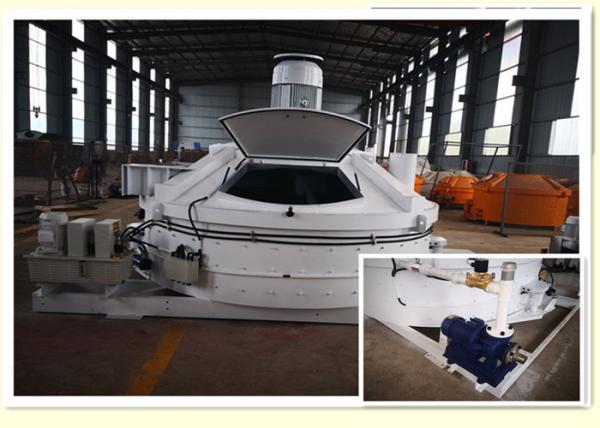

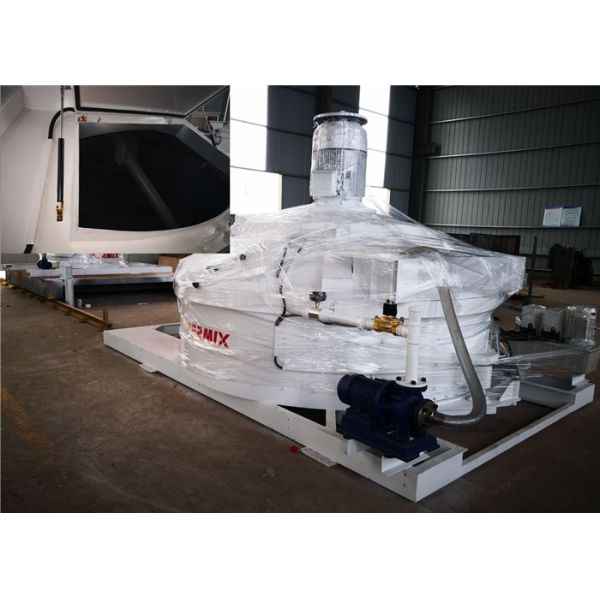

High Velocity Differential Refractory Mixer Machine 1-3min Mixing Time 750L Output
High Velocity Differential Refractory Mixer Machine 1-3min Mixing Time 750L Output
Specifications
Brand Name :
PERMIX
Model Number :
PMC500
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
5-10 units per month
Delivery Time :
5-8 days
Packaging Details :
Export Standard Package
Output capacity :
750L
Input capacity :
1125L
Input weight :
180kgs
Weight :
350kgs
Original :
JIAOZHOU CHINA
Product name :
Refactory Planetary Mixer
Description

High Velocity Differential Of Material Refractory Mixer Machine1-3min Mixing Time

Performance Characteristics

1) Low Energy Consumption, 30% to 50% reduced comparing same capacity mixers!

2) High Homogenization up to 97-99%!

3) Short Mixing Time as 1-3min!

4) Simple Structure, Simple and Convenient Maintenance

5) Flexible Layout, 1-3 unloading doors are optional for different production lines.

6) Compact Structure and Small Space required

Transmission System

The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation. The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.

Maintaining Door

The safety control device ensures that the mixer will not start during maintenance. Large size maintaining door for easy maintenance and cleaning.

Hydraulic Unit

The hydraulic discharging system is equipped with manual door opener, which can be opened manually in case of power failure.

Discharging Door

The limited switch installed, can be convenient to set the size of the door according to the need. At most three discharge doors can be opened.

According to the material situation, different device can be selected to make the stirring speed faster, and the stirring is more uniform, without the phenomenon of stacking.

Technical Data
　 PMC50 PMC
100		 PMC
150		 PMC
250		 PMC
330		 PMC
500		 PMC
750		 PMC
1000		 PMC
1500		 PMC
2000		 PMC
2500		 PMC
3000		 PMC
4000		 PMC
4500
Output capacity(L) 50 100 150 250 330 500 750 1000 1500 2000 2500 3000 4000 4500
Input capacity(L) 75 　 225 375 500 750 1125 1500 2250 3000 3750 4500 6000 6750
Input capacity(kg) 120 　 360 600 800 1200 1800 2400 3600 4800 6000 7200 9600 10800
Diameter of Mixing Tank(mm) 　 　 　 1300 1540 1900 2192 2496 2796 3100 3400 3400 　 　
Mixing Power kw 3 7.5 11 15 18.5 22 30 37 55 75 90 110 160 200
Blade QTY 1/2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 3*2 3/6 3/9 3/9 3/9
Side Scraper QTY 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bottom Scraper QTY 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Weight(kg) 700 　 1000 1200 1700 2000 3500 6000 7000 8500 10500 11000 16000 18000
