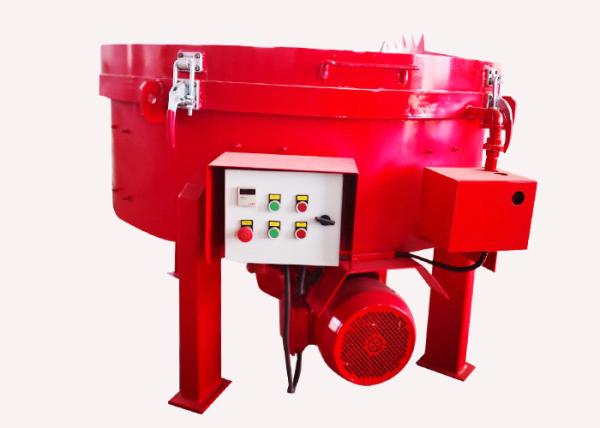

Vertical Shaft Refractory Mixer Machine With 1125L Input Capacity For Dry Concrete
Vertical Shaft Refractory Mixer Machine With 1125L Input Capacity For Dry Concrete
Vertical Shaft Refractory Mixer Machine With 1125L Input Capacity For Dry Concrete
Vertical Shaft Refractory Mixer Machine With 1125L Input Capacity For Dry Concrete
Specifications
Brand Name :
PERMIX
Model Number :
PMC100
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
5-10 units per month
Delivery Time :
5-8 days
Packaging Details :
Export Standard Package
Bottom Scraper QTY :
1
Input capacity :
1125L
Input weight :
180kgs
Weight :
350kgs
Color :
Red
Product name :
Refactory Planetary Mixer
Description

Counter-flowing Current Refractory Mixer Machine Vertical Shaft

Product advantage and description

Concrete mixer consists of feeding mechanism, stirring mechanism, unloading mechanism, water supply system, electric control system and so on. It can mix aggregate, gravel, gravel, dry concrete, plastic concrete, lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed. The pneumatic piston push rod is used to discharge the motor automatically when discharging.

The concrete mixer is the advanced and ideal model at home and abroad. It has the advantages of high automation, good mixing quality, high efficiency, low energy consumption, low noise, convenient operation, fast discharging speed, long service life of lining plate and blade, convenient maintenance and so on. It is suitable for mixing plastic, dry, lightweight aggregate concrete and mortar and mortar.

Maintaining Door

The safety control device ensures that the mixer will not start during maintenance. Large size maintaining door for easy maintenance and cleaning.

Discharging Door

The limited switch installed, can be convenient to set the size of the door according to the need. At most three discharge doors can be opened.

According to the material situation, different device can be selected to make the stirring speed faster, and the stirring is more uniform, without the phenomenon of stacking.

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.

Vertical Shaft Refractory Mixer Machine With 1125L Input Capacity For Dry Concrete

Technical Data
　 PMC50 PMC
100		 PMC
150		 PMC
250		 PMC
330		 PMC
500		 PMC
750		 PMC
1000		 PMC
1500		 PMC
2000		 PMC
2500		 PMC
3000		 PMC
4000		 PMC
4500
Output capacity(L) 50 100 150 250 330 500 750 1000 1500 2000 2500 3000 4000 4500
Input capacity(L) 75 　 225 375 500 750 1125 1500 2250 3000 3750 4500 6000 6750
Input capacity(kg) 120 　 360 600 800 1200 1800 2400 3600 4800 6000 7200 9600 10800
Diameter of Mixing Tank(mm) 　 　 　 1300 1540 1900 2192 2496 2796 3100 3400 3400 　 　
Mixing Power kw 3 7.5 11 15 18.5 22 30 37 55 75 90 110 160 200
Blade QTY 1/2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 3*2 3/6 3/9 3/9 3/9
Side Scraper QTY 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bottom Scraper QTY 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Weight(kg) 700 　 1000 1200 1700 2000 3500 6000 7000 8500 10500 11000 16000 18000
