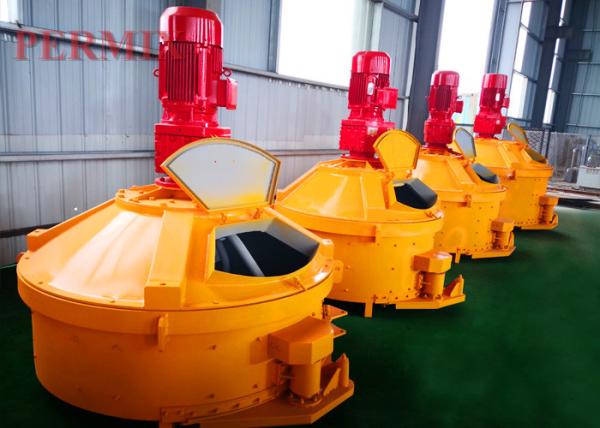

Sleepers Track Slabs Heavy Duty Cement Mixer , Durable Low Wear Orange Refractory Pan Mixer
Sleepers Track Slabs Heavy Duty Cement Mixer , Durable Low Wear Orange Refractory Pan Mixer
Sleepers Track Slabs Heavy Duty Cement Mixer , Durable Low Wear Orange Refractory Pan Mixer
Sleepers Track Slabs Heavy Duty Cement Mixer , Durable Low Wear Orange Refractory Pan Mixer
Specifications
Brand Name :
PERMIX
Model Number :
PMC330
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
5-10 units per month
Delivery Time :
5-8 days
Packaging Details :
Export Standard Package
Output capacity :
750L
Mixing Power :
30kw
Input weight :
180kgs
Blade QTY :
1*3
Color :
Orange/White/Red
Product name :
Refactory Planetary Mixer
Description

1-3 Unloading Doors Refactory Planetary Mixer Durable Tool Low Wear

Performance Characteristics:

1) Flexible Layout, 1-3 unloading doors are optional for different production lines.

2) Compact Structure and Small Space required

3) Short Mixing Time as 1-3min!

4) Simple Structure, Simple and Convenient Maintenance

5) Low Energy Consumption, 30% to 50% reduced comparing same capacity mixers!

6) High Homogenization up to 97-99%!

The Skip Hopper

Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.

Temperature and moisture sensor

To ensure concrete and prefabricated parts quality, sensors of temperature and moisture made in Bikotronic of German can be selected

Hydraulic Coupling

High Pressure Washing System

Technical Data
　 PMC50 PMC
100		 PMC
150		 PMC
250		 PMC
330		 PMC
500		 PMC
750		 PMC
1000		 PMC
1500		 PMC
2000		 PMC
2500		 PMC
3000		 PMC
4000		 PMC
4500
Output capacity(L) 50 100 150 250 330 500 750 1000 1500 2000 2500 3000 4000 4500
Input capacity(L) 75 　 225 375 500 750 1125 1500 2250 3000 3750 4500 6000 6750
Input capacity(kg) 120 　 360 600 800 1200 1800 2400 3600 4800 6000 7200 9600 10800
Diameter of Mixing Tank(mm) 　 　 　 1300 1540 1900 2192 2496 2796 3100 3400 3400 　 　
Mixing Power kw 3 7.5 11 15 18.5 22 30 37 55 75 90 110 160 200
Blade QTY 1/2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 3*2 3/6 3/9 3/9 3/9
Side Scraper QTY 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bottom Scraper QTY 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Weight(kg) 700 　 1000 1200 1700 2000 3500 6000 7000 8500 10500 11000 16000 18000
