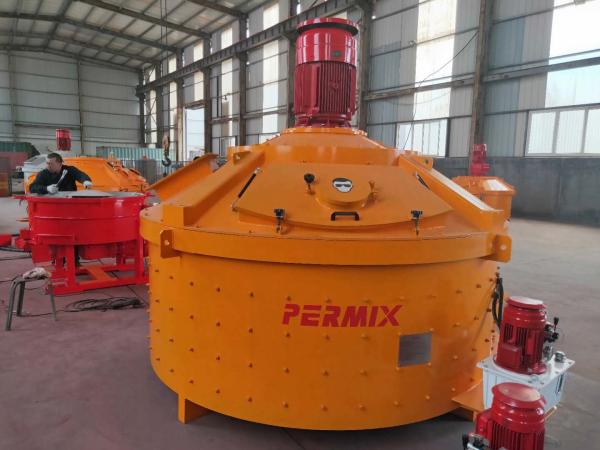

CE Standard Large Capacity Concrete Mixer / PMC1000 Type Cement Mixer Machine
CE Standard Large Capacity Concrete Mixer / PMC1000 Type Cement Mixer Machine
Specifications
Brand Name :
PERMIX
Model Number :
PMC1000
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
15-20 units per month
Delivery Time :
15-18 days
Packaging Details :
Export Standard Package
Input capacity :
1500L
Output capacity :
1000L
Input weight :
2400kgs
Blade QTY :
2*2
Color :
Orange
Product name :
PMC1000type Cement Concrete Mixer
Description

Protection Ag

1. Reasonable design and performance optimization of the whole machine

2. Convenient use and maintenance;

3. Firm and reliable, life factory;

4. Good mixing quality and high efficiency

5. Convenient operation and fast discharging speed

6. Low energy consumption and low noise

The performance characteristics of Mixe

Mixer advantages

The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.

ainst Wear

The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.

(1) wear - resistant alloy plates.

(2) surfacing materials.

(3) high chrome alloy.

(4) stainless steel materials.

(5) ceramic materials

(6) polyurethane material.

(7) high wear resistant rubber and cast stone materials.

Technical Data
　 PMC50 PMC
100		 PMC
150		 PMC
250		 PMC
330		 PMC
500		 PMC
750		 PMC
1000		 PMC
1500		 PMC
2000		 PMC
2500		 PMC
3000		 PMC
4000		 PMC
4500
Output capacity(L) 50 100 150 250 330 500 750 1000 1500 2000 2500 3000 4000 4500
Input capacity(L) 75 　 225 375 500 750 1125 1500 2250 3000 3750 4500 6000 6750
Input capacity(kg) 120 　 360 600 80 1200 1800 2400 3600 4800 6000 7200 9600 10800
Diameter of Mixing Tank(mm) 　 　 　 1300 1540 1900 2192 2496 2796 3100 3400 3400 　 　
Mixing Power kw 3 7.5 11 15 18.5 22 30 37 55 75 90 110 160 200
Blade QTY 1/2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 3*2 3/6 3/9 3/9 3/9
Side Scraper QTY 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bottom Scraper QTY 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Weight(kg) 700 　 1000 1200 1700 2000 3500 6000 7000 8500 10500 11000 16000 18000
