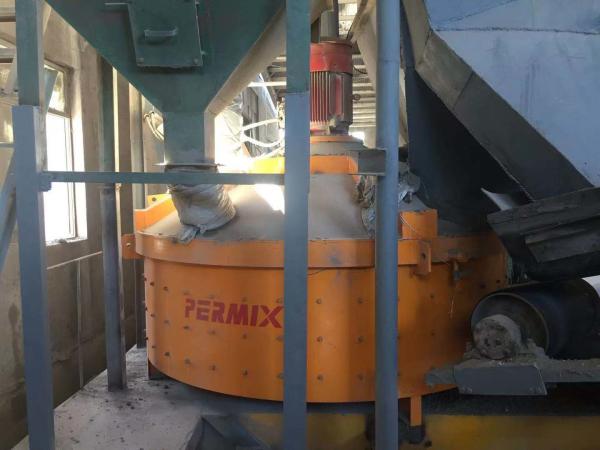

Planetary Concrete Batch Mixer Dry Mortar Precast Ready Mix Ceramic Mixer
Planetary Concrete Batch Mixer Dry Mortar Precast Ready Mix Ceramic Mixer
Specifications
Brand Name :
PERMIX
Model Number :
PMC100
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
5-10 units per month
Delivery Time :
5-8 days
Packaging Details :
Export Standard Package
Material :
Steel
Mixing Power :
30kw
Input weight :
180kgs
Blade QTY :
1*3
Color :
Orange/White/Red
Product Name :
Concrete Block Mixer
Description

High Efficiency Concrete Mixer PMC150 Cement Precast Ready Mix Ceramic Mixer​

Performance Characteristics:

Low Energy Consumption

High Homogenization

Short Mixing Time

Simple Structure, Simple and Convenient Maintenance

APPLICATION INDUSTRIES

1. Concrete

Precast concrete: various block bricks, sleepers, track slabs, metro tunnel segments, PC components, PCCP water pipe,

Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,

High Performance ready-mixed concrete: Self-leveling mortar, etc.

2. Ceramics,

3. Pot Clay,

4. Glass Raw Material,

5. Refractories: Unshaped refractories, refractory bricks,

6. Casting materials: Sand mixing, casting coatings,

Others

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.

Technical Data
　 PMC50

PMC

100

PMC

150

PMC

250

PMC

330

PMC

500

PMC

750

PMC

1000

PMC

1500

PMC

2000

PMC

2500

PMC

3000

PMC

4000

PMC

4500
Output capacity(L) 50 100 150 250 330 500 750 1000 1500 2000 2500 3000 4000 4500
Input capacity(L) 75 　 225 375 500 750 1125 1500 2250 3000 3750 4500 6000 6750
Input capacity(kg) 120 　 360 600 800 1200 1800 2400 3600 4800 6000 7200 9600 10800
Diameter of Mixing Tank(mm) 　 　 　 1300 1540 1900 2192 2496 2796 3100 3400 3400 　 　
Mixing Power kw 3 7.5 11 15 18.5 22 30 37 55 75 90 110 160 200
Blade QTY 1/2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 3*2 3/6 3/9 3/9 3/9
Side Scraper QTY 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bottom Scraper QTY 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Weight(kg) 700 　 1000 1200 1700 2000 3500 6000 7000 8500 10500 11000 16000 18000
