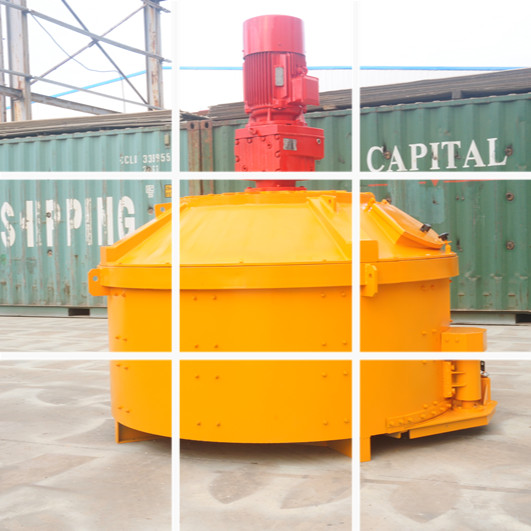

Steel Material Planetary Concrete Mixer PMC500 Tunnel Bridge Mix 30kw Power
Steel Material Planetary Concrete Mixer PMC500 Tunnel Bridge Mix 30kw Power
Specifications
Brand Name :
PERMIX
Model Number :
PMC750
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
5-10 units per month
Delivery Time :
5-8 days
Packaging Details :
Export Standard Package
Material :
Steel
Input capacity :
1125L
Input weight :
180kgs
Mixing Power :
30kw
Blade QTY :
1*3
Color :
Orange/White/Red
Description

Planetary Mixer Mixing Concrete Mixer PMC500 0.5m³ Sleepers Tunnel Bridge Mix

ConcreteOther Construction MaterialRefractory MaterialOthers
Ready-mixed concrete
Precast concrete
Foam concrete
Color concrete
Light concrete
Shotcrete		Dry mortar
Wet mortar
Gypsum
Aggregate mixing
Emulsified asphalt
Cement adhesive		Shaped refractory material
Unshaped refractory material		Glass
Fertilizer
Waste treatment
Mine backfill


Mixer advantages

The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.

Technical Data
　PMC50PMC
100		PMC
150		PMC
250		PMC
330		PMC
500		PMC
750		PMC
1000		PMC
1500		PMC
2000		PMC
2500		PMC
3000		PMC
4000		PMC
4500
Output capacity(L)501001502503305007501000150020002500300040004500
Input capacity(L)75　22537550075011251500225030003750450060006750
Input capacity(kg)120　3606008001200180024003600480060007200960010800
Diameter of Mixing Tank(mm)　　　130015401900219224962796310034003400　　
Mixing Power kw37.5111518.5223037557590110160200
Blade QTY1/21*21*21*21*21*21*32*22*23*23/63/93/93/9
Side Scraper QTY11111111111111
Bottom Scraper QTY11111111112222
Weight(kg)700　1000120017002000350060007000850010500110001600018000


Steel Material Planetary Concrete Mixer PMC500 Tunnel Bridge Mix 30kw Power
