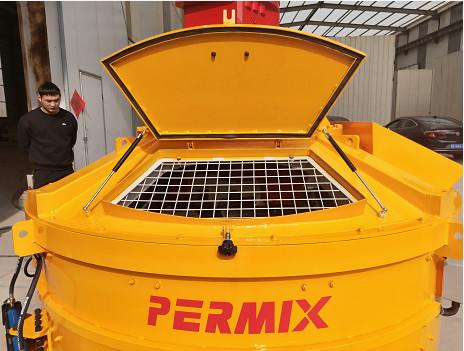

Planetary Mixer 3000L Input Capacity Orange Color Concrete,Cement,Glass,Refractory Mixing

PMC2000 : High Homogenization, 1-3 Unloading Doors,Optional for different production lines.

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track are as follows.

1. Product advantage and description

 Planetary concrete mixer consists of feeding mechanism, mixing mechanism, discharging mechanism, water supply system, electric control system, etc. Plasticity, ductility, briquettability concrete and all kinds of mortar can be mixed.

In this machine, the two horizontal mixing shafts are mixed with the reverse equal-speed rotation, which can be realized the maneuvering discharge through the pneumatic piston push rod.

Our planetary concrete mixer is advanced at home and abroad, It's the ideal model, and has a high degree of automation, mixing of good quality, high efficiency, low energy consumption, low noise, easy operation, fast discharging, long service life of lining and blade, convenient maintenance. Applicable to plasticity, ductility, and lightweight aggregate concrete and various mortar mixing.

2.Features of Planetary mixer

Planetary mixer is a new type of high efficiency, stirring without dead corner equipment;

It has a unique form of stirring. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect.

In addition to the equipment within the knife scraping wall around the cylinder axis rotation, will be stuck on the wall material scraping and then put them into mixing shear, that make no residual material in the mixer and mixing effect is more ideal.

Cylinder with special seal structure and have the pressure or vacuum stirring. Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely.

3. Technical Specification(PMC 2000) :

Feeding Capacity (L): 3000

Output Capacity (L) : 2000

Feeding Weight (KG): 4800

Mixing Power (KW): 75

Discharging Power (KW): 4

Mixing Star* Blade: 3*2

Side Scraper: 1

Discharge Scraper: 2

Weight(KG): 9200

Lifting Power(KW): 18.5

Dimension(L*W*H): 3625*3230*2695
