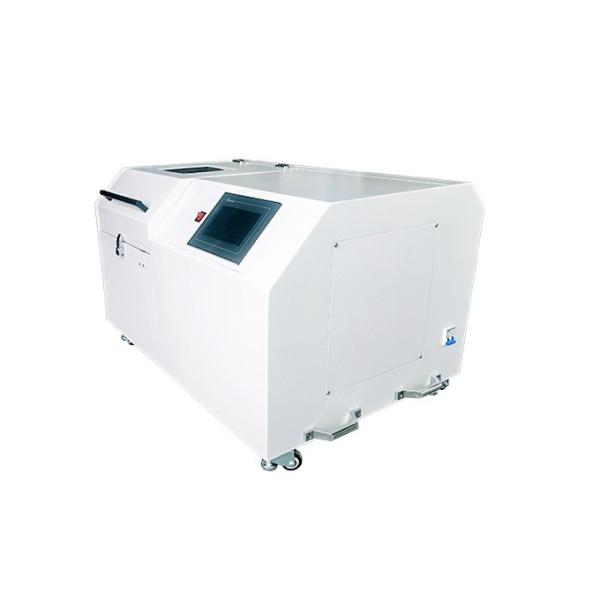

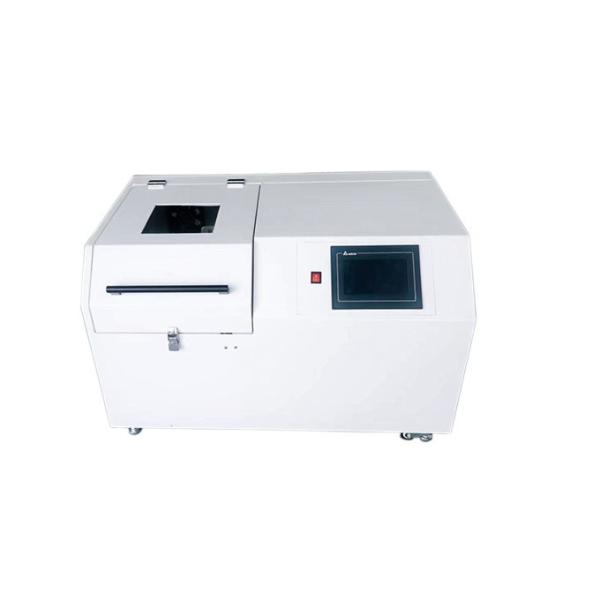

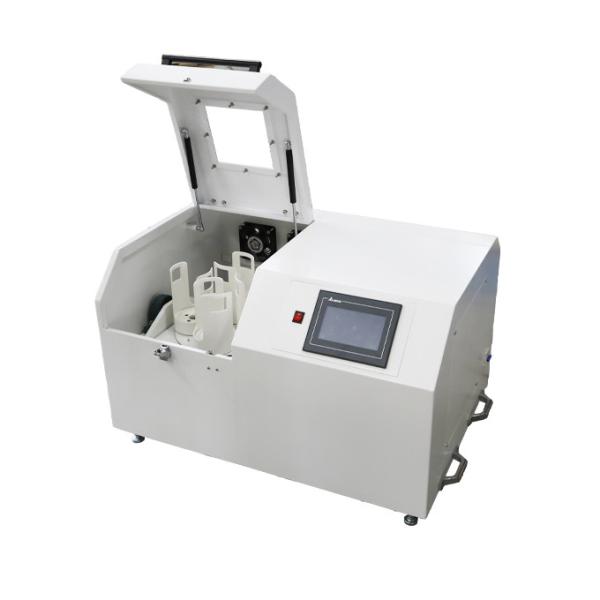

500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment
500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment
500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment
500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment
500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment
500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment
Specifications
Brand Name :
JUSHIEN
Model Number :
PBM-504Q
Certification :
CE Certification
Place of Origin :
China
MOQ :
1
Payment Terms :
30% deposit + 70% T/T before shipping, T/T
Supply Ability :
30 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Carton, pallet, wooden case or according to customer's package requirements
Programmable Control :
Yes
Model :
XQM-4A
Revolution Speed :
0-450rpm
Voltage :
220V/110V, 50/60Hz
Rotation Speed :
0-900rpm
Grinding Jar Material :
Stainless steel, agate, zirconia, alumina, nylon, PTFE
Discharging Size :
0.1um
Grinding Balls Diameter :
3mm-20mm
Grinding Jar Volume :
50ml-1000ml
Grinding Balls Material :
Stainless steel, agate, zirconia, alumina, nylon, PTFE
Max. Feeding Size :
10mm
Max. Loading Capacity :
4L
Safety Features :
Overload protection, interlock protection, emergency stop
Drive Mode :
Gear drive
Description

Product Introduction

PBM-504Q is a 500ml, 4-station planetary omnidirectional ball mill with a unique design structure that adds a spatial rotation mechanism, which can drive the ball mill tank on the transmission plate to perform 360 degree flipping motion. It can be said that the omnidirectional planetary ball mill combines the advantages of planetary vertical and planetary horizontal, making it more suitable for rapid, efficient, and accurate sample development, mixing, and homogenization in laboratories. It is a small volume, low noise A small grinding equipment with strong control, comprehensive functions, fine grinding, and fast grinding.

500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment500ml 4 Station Omnidirectional Planetary Ball Mill Laboratory Equipment

Performance Parameter

apply Fragile, soil, fiber, strong oxidation, corrosive powder pollution-free grinding application area Medicine, medicine, food, chemicals, synthetic materials, electronics, engineering, metallurgy, glass
sample characteristic Soft / hard material, brittle material The principle of crushing Friction force, collision force
Milling method Dry method or wet method cryogrinding customizable
Vacuum grinding yes Conventional crushing time 10-25min
Feed size Crisp material <12mm; remaining material <4mm Finishing particle size 0.1um
Maximum grinding amount of the batch 2L/1L/0.4L Number of grinding platforms 4pcs
ratio of transmission 1:-2 Ball grinding tank speed 580r/min
Speed adjustment range of the space rotating mechanism (8-12)r/min Ball grinding tank type utility-type
noise 60-75 db (depending on the ground ball and sample placed in the ball grinding tank) Ball grinding tank material Stainless steel / nylon / polyurethane / teFE / polypropylene / polyethylene / agate / alumina / zirconia, etc
Ball grinding tank size 500ml/250ml/100ml Grinding ball material Stainless steel / alumina / zirconia / calcium carbide, etc
Grinding ball size 2-30mm operator schema High touch touchscreen (standard)
Touch screen function
Ball grinding tank program running aspects Manual operation: can be forward, reverse, stop, manually setting speed and other routine functions Program operation: 5 period speed of operation can be to run forward (time can be set), reverse running (time can be set), alternating running, intermittent running (time can be set), regular grinding (time), pause, program period and time monitoring, also for customers to write, read call custom formula more human function choice;
Protection function: have program memory, power failure memory, fault code prompt and other auxiliary protection functions to ensure the customer requirements
The program operation aspect of the space rotation mechanism Manual operation: the flipping can be manually started and stopped at any angle
Procedure operation: it can realize the delay start with the ball grinding tank program, and can track the practical functions such as starting, stop, and pause of the ball grinding tank program consistent with each other, so that the mutual integration of the two programs, and truly achieve the static advanced command
Grinding time setting Numbers display, 00:00:01 to 99:59:59 Pause time setting Numbers display, 00:00:01 to 99:59:59
Interval operation time setting Numbers display, 00:00:01 to 99:59:59 drive Frequency converter, three-phase AC motor
driving power 0.75kw driving voltage 220V
Motor frequency 50Hz mains connections uniphase
Body effective size (width * depth * height) 1000*700*595 Maximum body size (width * depth * height) 1092*724*673
net weight About 196kg (no tank and pendant weight) standard CE
