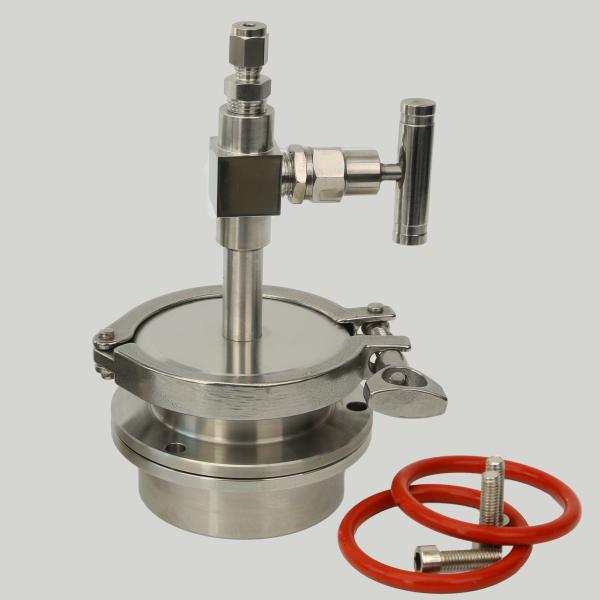

Product Description:

The Tube Furnace Flange is a vital component used in tube furnaces to create a secure connection between the furnace and the process tube. This flange is designed with high-quality materials and precise dimensions to ensure a reliable and leak-free seal for the furnace.

• Flange Thickness: 8 mm
• Flange Material: Stainless Steel
• Flange Inner Diameter: 16 mm
• Temperature Range: Up to 1200°C
• Flange Outer Diameter: 30 mm

The Tube Furnace Flange is made of durable stainless steel, making it resistant to high temperatures and corrosion. Its flange thickness of 8 mm provides a sturdy and stable connection between the furnace and the process tube, ensuring safety and reliability during operation.

The flange inner diameter of 16 mm allows for easy installation and removal of the process tube, while the outer diameter of 30 mm ensures a perfect fit with the furnace. This flange is designed to withstand extreme temperatures of up to 1200°C, making it suitable for a wide range of applications.

In addition, the Tube Furnace Flange is compatible with various types of process tubes, including carbon steel flanges and flanged ductile iron pipes. It can also be used in conjunction with a CF vacuum flange for applications that require a high vacuum environment.

With its precise dimensions, high-quality materials, and versatile compatibility, the Tube Furnace Flange is an essential component for any tube furnace. It provides a secure and leak-free seal, ensuring efficient and safe operation of the furnace.

Features:

• Product Name: Tube Furnace Flange
• Flange Bolt Hole Diameter: 4 mm
• Flange Thickness: 8 mm
• Flange Material: Stainless Steel
• Material: Stainless Steel
• Sealing Method: O-ring
• Carbon Steel Flange
• FRP Pipe Flanges
• CF Vacuum Flange

Technical Parameters:

Applications:

The Tube Furnace Flange, produced by JUSHIEN, is an essential component in any vacuum system. With its high temperature resistance and reliable sealing method, it is widely used in various industries such as research and development, manufacturing, and testing.

JUSHIEN is a leading manufacturer of vacuum equipment and accessories, providing high-quality and durable products for customers worldwide.

The Tube Furnace Flange FL-001 is one of the most popular models in JUSHIEN's product line. It is designed with precision and manufactured with top-grade materials to ensure its excellent performance.

All JUSHIEN products, including the Tube Furnace Flange, are proudly made in China with strict quality control and advanced technology.

The Tube Furnace Flange has obtained CE Certification, ensuring its compliance with European safety standards and regulations.

JUSHIEN provides flexible order quantity options for customers, with a minimum order quantity of 1 for the Tube Furnace Flange.

To protect the Tube Furnace Flange during transportation, JUSHIEN offers various packaging options, including carton, pallet, wooden case, or customized packaging according to customer's requirements.

JUSHIEN accepts various payment methods, including a 30% deposit and 70% T/T before shipping, or 100% T/T payment. Other payment terms can also be negotiated.

The Tube Furnace Flange is available in a standard size of 1/4 inch, suitable for most vacuum system applications.

The O-ring sealing method of the Tube Furnace Flange ensures a tight and reliable seal, preventing any gas or air leakage in the vacuum system.

The NW16 flange size of the Tube Furnace Flange is compatible with other standard flanges, making it easy to install and replace in existing systems.

The Tube Furnace Flange is tested and recommended for use in a vacuum range of 10^-2 Torr, making it suitable for most vacuum processes.

The Tube Furnace Flange can withstand atmospheric pressure, ensuring its stability and durability in different environmental conditions.

The Tube Furnace Flange is widely used in various applications, including:

• Research and development: used in laboratories and universities for experiments and scientific research.
• Manufacturing: used in industries such as semiconductor, electronics, and pharmaceuticals for production processes.
• Testing: used in testing equipment and facilities for quality control and performance evaluation.

The Tube Furnace Flange, produced by JUSHIEN, is a top-quality and reliable product that meets the highest standards in the vacuum industry. With its high temperature resistance, O-ring sealing method, and compatibility with standard flanges, it is an ideal choice for various vacuum system applications.

Customization:

Brand Name: JUSHIEN

Model Number: FL-001

Place of Origin: China

Certification: CE Certification

Minimum Order Quantity: 1

Packaging Details: Carton, pallet, wooden case or according to customer's package requirements

Payment Terms: 30% deposit + 70% T/T before shipping, T/T

Material: Stainless Steel

Flange Size: NW16

Temperature Range: Up To 1200°C

Flange Material: Stainless Steel

Flange Type: KF (Klein Flange)

Customized Services:

• Customized logo and packaging design
• Customized flange size according to customer's requirements
• Customized material options, including carbon steel, cast iron, and FRP pipe flanges
• Customized temperature range up to 1200°C
• Customized flange type, including KF, CF, and ISO flanges
• Customized order quantity with a minimum order of 1

With our customized services, we aim to provide the best solution for your specific needs and requirements. Trust JUSHIEN for high-quality and reliable tube furnace flanges for your industrial applications.
