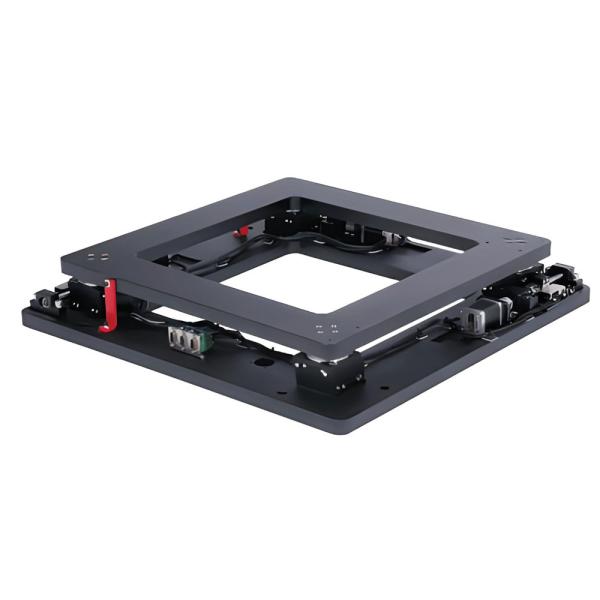

YK-XXY350 XXY UVW XYR High Precision Alignment Plantform for Automation Motion Control

1. Products Overview

The positioning platform can be divided into four types: XYθ positioning platform, UVW positioning platform, XXY positioning platform, and XXYY positioning platform.

XYθ Positioning Platform

It is made of a X direction and a Y direction motion control units, and a rotary mechanism on the top. It can achieve the positioning and angle control of the workpiece on the XY plane while object angle is proper too. Its accuracy is higher than the ordinary positioning platforms.

UVW Positioning Platform:

UVW positioning platform: Consisting of 2 set of motion control modules in the X direction and 1 set of motion control module in the Y direction, plus one rotation control axis on the top. The UVW positioning platform can do rotation based on any point on the working plane, while move horizontally to any direction on the platform. The UVW positioning platform has the advantages of higher accuracy and stronger structural rigidity compared to the XYθ three -axis structure. Very suitable for installation space sensitive application scenarios.

XXY Positioning Platform:

XXY Platform platform: It is composed of two sets of motion control modules in the X direction, one set of motion control modules in the Y -axis direction, and a free axis motion control module. It can generate different rotation angles θ while moving in any XXY direction, and its accuracy is very high.

XXY positioning platform system function

1. Alignment accuracy is fairly high, and the response speed is fast, too.

2. Various goals, including cross marks, central marks, straight line intersections, templates and water drops and so on, can be identified.

3. Flexible installation: both the platform and the camera can be installed downward or upward, and the orthogonal robot/orthogonal module Y arm move the camera.

4. A variety of communication methods: Support serial communication and TCP/IP communication, support standard MODBUS protocol, and other communication methods can be customized.

XXYY Positioning Platform:

XXYY pairing platform: Consisting of two sets of X axis motion control modules and two sets of Y axis motion control modules. It is the most complicated positioning platform with the highest accuracy, speed, and rigidity.

Applications:
As a mechanical execution part in a high -precision positioning system. It is widely used in industrial automation applications, which needs extra high precisions, such as semi conductor, testing equipments, LCD and optical products production machines (optical fiber, optical lens, etc), exposure machines, bonding machines, mask printing machines, WAFER positioning, part installation, PCB drilling machine, LCD lighting feature inspection, cutting machine, sticker Film machines (LCD/FPC), online printing machines, etc.

2. Products Highlights

Automation Control

The control system of the positioning platform usually uses digital control technology, which can realize automation and intelligent control and management, reduce artificial operation intensity, and improve production efficiency and product quality.

High Precision

Using high-precision straight -line guide rails, slide blocks, skating and other components to the platform, it can achieve high-precision positioning and transition to meet various high-precision-level needs.

From ±1 to ±10μm position adjustment precision gaurantees great performance of customer applications.

Fast and Stable

High -precision drives such as servo motors are usually used to the platform, which can achieve fast and stable motion control and improve production efficiency.

High Reliability

High -quality components and materials are adopted to the platform. After rigorous testing and inspection, it has high reliability and stability and can ensure long -term stable operation.

Up to 80000 hours average life time shows great reliability of the platforms in automation aplications

Easy to Use

Simple application interface enables the platforms easy operation and fast integration in customer applications

Long Warrenty

Up to 3 years warrenty enables customer free of services concern.

Flexible Customization

High qualty and Fast flexible customization based on customer needs. The platform can be customized and upgraded according to different application scenarios and process needs to adapt to the counterpart operation of different types of workpieces of workpieces.

2. Naming Rules

3. Main Performance Specifications

3. Mechanical Dimenssions (mm)
