YK-XXY150 XXY UVW High Precision Alignment Plantform for Automation Motion Control

1. Products Overview

The positioning platform can be divided into four types: XYθ positioning platform, UVW positioning platform, XXY positioning platform, and XXYY positioning platform.

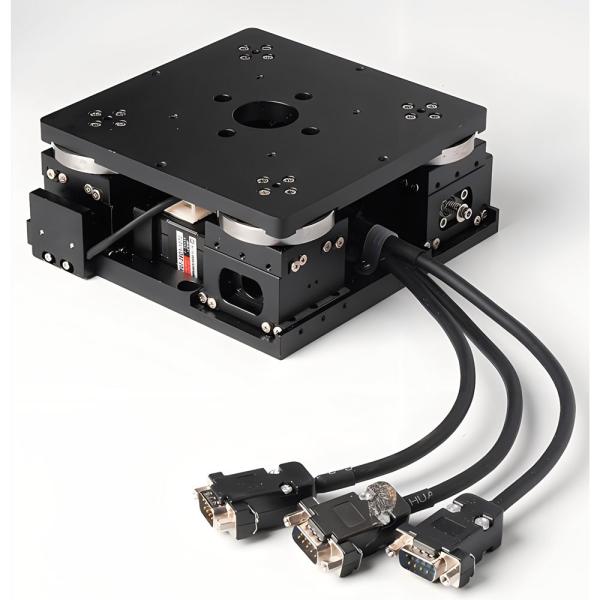

Kaifull XXY high precision fine tunning alignment platforms is composed of two sets of motion control modules in the X direction, one set of motion control modules in the Y -axis direction, and a free axis motion control module. It can generate different rotation angles θ while moving in any XXY direction, and its accuracy is very high.

The platform is an important industrial equipment, which is widely used in various manufacturing and assembly areas, such as semiconductor packaging, electronic manufacturing, and medical equipment manufacturing. The working principle and characteristics of the platform have an important impact on its performance and use effect.

The working principle of the positioning platform is based on precise motion control technology. Through the movement and positioning of the platform to accurately control the position fixed on the platform. The performance is characterized as fast, accurate and stable.

As a mechanical execution part in a high -precision positioning system. It is widely used in industrial automation applications, which needs extra high precisions, such as semi conductor, testing equipments, LCD and optical products production machines (optical fiber, optical lens, etc), exposure machines, bonding machines, mask printing machines, WAFER positioning, part installation, PCB drilling machine, LCD lighting feature inspection, cutting machine, sticker Film machines (LCD/FPC), online printing machines, etc.

2. Products Highlights

High Precision

From ±1 to ±10μm position adjustment precision gaurantees great performance of customer applications

High Reliability

Up to 80000 hours average life time shows great reliability of the platforms in automation aplications

Easy to Use

Simple application interface enables the platforms easy operation and fast integration in customer applications

Long Warrenty

Up to 3years warrenty enables customer free of services concern.

2. Naming Rules

3. Main Performance Specifications

3. Mechanical Dimenssions (mm)
