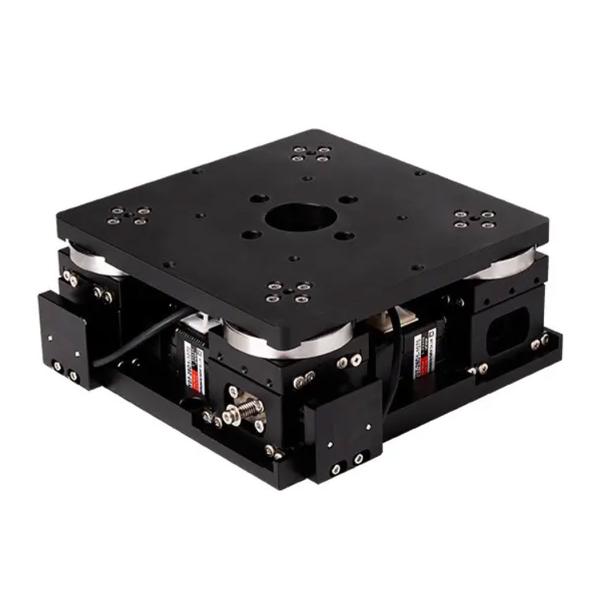

YK-XXY160 XXY UVW XYR High Precision Alignment Plantform for Automation Motion Control

1. Products Overview

The XXY OR UVW Precision positioning platform is an important industrial equipment, which is widely used in various manufacturing and assembly areas, such as semiconductor packaging, electronic manufacturing, and medical equipment manufacturing. The working principle and characteristics of the platform have an important impact on its performance.

The working principle of the positioning platform is based on precise motion control technology. Through the movement and positioning of the platform to accurately control the position fixed on the platform. The performance is characterized as fast, accurate and stable.

Normally, the platform is composed of high-precision linear guide rails, slide blocks, slides, grating ruler and other components, which can realize the movement and positioning of X, Y, and Z. In terms of sports, through the reasonable design of the motion relationship of each axis to ensure the synthesis and decomposition of exercise in space, the fast, accurate and stable positioning operation of the workpiece is realized.

The main characteristics of the high precision positioning platform are as the followings:

High-precision positioning: Using high-precision straight -line guide rails, slide blocks, skating and other components to the platform, it can achieve high-precision positioning and transition to meet various high-precision-level needs.

Fast and stable: High -precision drives such as servo motors are usually used to the platform, which can achieve fast and stable motion control and improve production efficiency.

Automation control: The control system of the positioning platform usually uses digital control technology, which can realize automation and intelligent control and management, reduce artificial operation intensity, and improve production efficiency and product quality.

Strong applicability: The platform can be customized and upgraded according to different application scenarios and process needs to adapt to the counterpart operation of different types of workpieces of workpieces.

High reliability: High -quality components and materials are adopted to the platform. After rigorous testing and inspection, it has high reliability and stability and can ensure long -term stable operation.

Applications:

With the CCD visual system, it can realize the precision fine-tuning of X-Y and φ angle of the objext fixed on the platform. Widely used in the semiconductor industry wafers cutting, packaging detection, exposure, net printing, compression, cutting, etc. in PCB manufacturing, mobile phone manufacturing, LCD/LED panel manufacturing, solar industry, etc.
