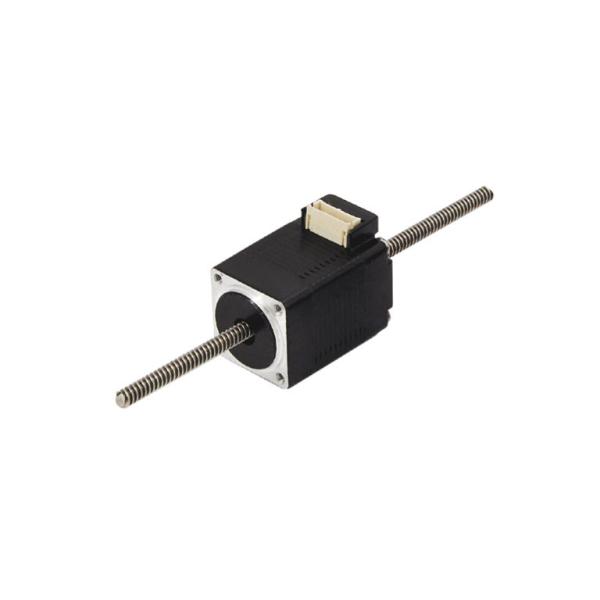

20LHS054N-100 2N Force 2 Phase Nema8 Non Captive Hybrid Linear Stepper Motors Linear Acuators

1. Hybrid Linear Stepper Motors Overview

Hybrid linear stepper motor is a new linear movement executive motion control product, converting the round rotation movement into linear movement.

The product structure is simple and compact, and it can provide a variety of solutions according to customer needs. We provide customized services such as adding brakes, encoders, and hollow shafts according to customer needs, and can provide systemic products for it.

• High accuracy: Because the screw rod is a spiral line, the stepping motor with a drive can make the position accuracy high, usually 0.01 mm.
• Large torque: The torque of the stepping motor with a screw drive is relatively large, which can withstand large loads and inertia.
• Simple structure: The transmission structure of the screw is simple, and there is no need to specialize in a dedicated deceleration mechanism. The cost is low.
• Lack of resistance to interference: Since the stepper motor controls the discrete signal, it has a small impact on environmental interference.
• Convenient control: Step motor with a drive can achieve efficient control by programming and high degree of automation.

The device of the screw motor has the characteristics of high precision, high load capacity and high reliability, so it is widely used in the field of industrial and automation, including telecommunications, testing equipment, industrial automation control, machine tool manufacturing, medical equipment, 3D printing, solar tracking systems, etc. to achieve accurate position and speed control.

• 3D Printer: In a 3D printer, the screw motor is used to control the linear movement of the printed head in different directions, thereby achieving layers of stacking and creating three -dimensional objects.
• Automated Production Line: The screw motor is used in the production line for material handling, assembly and positioning, and provides high -precision positioning and control.
• Medical Equipment: In the medical field, the screw motor is used to control the movement of medical equipment, such as X -ray equipment, CT scanner and surgery robot.
• Textile Equipment: Textile machines need to control the movement of fabrics, such as weaving machines and sewing machines, to achieve precise fabric processing and sewing operations.
• Semiconductor Manufacturing: In the semiconductor industry, the screw motor is used to control the precise exercise of semiconductor equipment, such as printing circuit board manufacturing equipment.
• Electronic Equipment Assembly: During the electronic manufacturing process, the screw motor is used to assemble linear components, such as the LCD panel assembly and the positioning of the printing circuit board.
• Scientific Research Equipment: In laboratory and scientific research fields, screw motors are used to control the linear movement of instruments, such as the focal length adjustment of microscope, and sample movement.

2. Hybrid Stepper Motor Naming Rules and General Technical Specifications

Linear stepper motor naming rules,

General Specifications,

3. 20LHS Series Hybrid Linear Stepper Motor Performance Datasheet

Note: Customization of motor specifications available.

4. Mechanical Dimensions (in mm)

5. Wirings
