Specifications
Brand Name :
YARAK
Model Number :
Y2SA2
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
≥50pcs
Payment Terms :
Company account based T/T
Supply Ability :
10000pcs per Month
Delivery Time :
7-14days for standad version customization 3-4weeks
Packaging Details :
50pcs for each carton
Type :
Open Loop with High Voltage AC Input and Alarm Output
Phase :
2 Phase
Input Voltage :
80 to 265VAC
Output Current :
0.4 to 4.0A
Control Mode :
Plus+Direction, CW & CCW
Alarm Output :
Yes
Control Signal :
5 VDC and 24 VDC Compatible
Special Functions :
Auto Tuning, Self Test, Alarm Output, Micro Step Interpolaon Load Inertia Optimizatin
Idel Current :
25%,50%, 70% or 90% by Setting DIP Switch
Matching Motors :
Nema 8 to 34
Highlights :
Compact Design, Wide Applications Compatibility, Top Performance and Reliability
Customization :
Available with MOQ
Description

Y2SA2 4.0A High Voltage 2Phase Stepper Drive with Alarm Output 80-265AC input for Nema23 to 47 Hybrid Stepper Motors

1. Products Overview

This Y2SA2 has an input voltage range from 80VAC to 265VAC with high reliability, and great speed torque performance.

Step drives are widely used in factory automation, carving machines, electronic product manufacturing, logistics sorting, robots, various special automation equipment, medical equipment, CNC machine tools, laser equipment, printing machinery, material processing, safety system, navigation system, industrial test and measurement etc. There are many fields such as measurement and metering systems.

Principles of step driver selection:

Four factors must be considered to choose a proper stepper driver: motor type, motor voltage, motor phase current, micro stepping or subdivision, maximum input frequency and mechanical size.

The open-loop and closed -loop step motors need different drivers. At the same time, the 2-phase, 3-phase, and the 5-phase step motor need to choose different stepper drivers, too. Based on the load, calculate the torque needed for the stepper motor.

When selecting the step drive, you need to ensure that the drive output current is a larger range. This can test the system at different voltage levels to meet different application needs. The output current of the drive should not be less than 1.4 times the rated current of the motor.

Choose different micro stepping or subdivisions to test the smoothness of motor.

Because the frequency of the input pulse signal determines the speed of the motor, when the high speed is required, it is necessary to specifically confirm whether the drive can receive a high enough control signal frequency. This mainly depends on the performance of the photovoltaic coupling device and whether the performance of the peripheral filter circuit can clearly filter off the high -frequency interference signal.

Finally, you need to consider whether the size of the step drive is matched with the size of the installation position space.

2. Main Technical Specifications

Item Description
Input Voltage 80 to 265VAC
Output Current 0.4 to 4.0A (Peak)
Control Mode

Pulse and Direction,

CW and CCW
Control Signal 5VDC and 24VDC Compatible

Micro Step

Range

16 Types,1-128 Micro Step Settings,

From 200 to 25600 Pules/Round
Idle Current 25%,50%, 70% or 90% by Setting DIP Switch
Special Functions

Auto Tuning, Self Test, Alarm Output, Micro Step Interpolati

Load Inertia Optimization

Input signal

Filtering

150KHz Digital Filtering for Low Micro Step Scenarios

2MHz Digital Filtering for High Micro Step Scenarios
Protection

Metal, High EMC Performance,

Multi-Level Electrical Protection
Matching Motors Adaptive to Stepper Motors of Nema23 to Nema47
Power Suppliers No Need AC/DC Power Supplies or Transformers

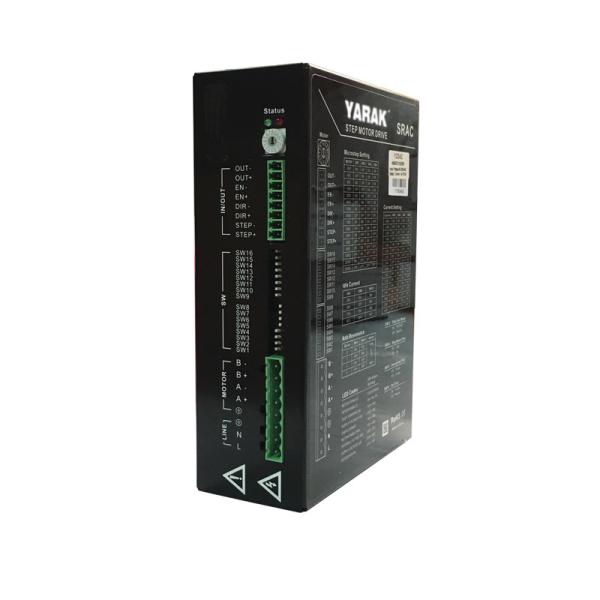

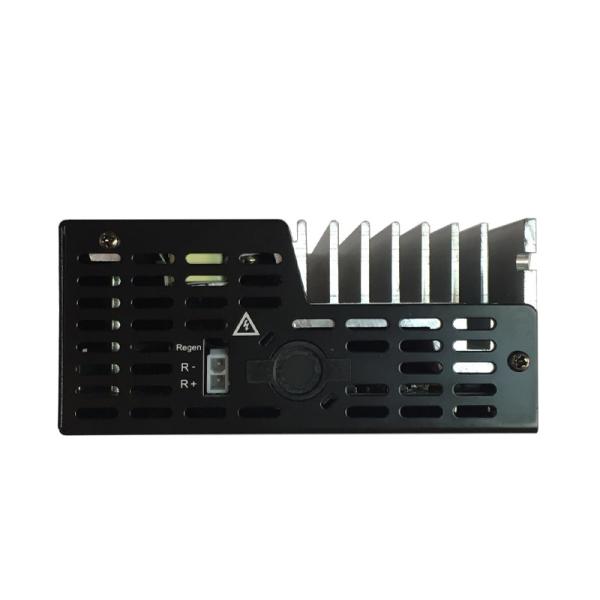

3. Stepper Driver External Interfaces

Y2SA2 4.0A High Voltage Stepper Driver 2 Phase With Alarm Output 80-265AC Input

4. LED Status Indicator Description

Based on LED status indicators, driver working status or abnormal causes can be identified.

Y2SA2 4.0A High Voltage Stepper Driver 2 Phase With Alarm Output 80-265AC Input

5. Output Current Settings

Switch Settings

Y2SA2

SW5

SW6

SW7

SW8

Peak Current/A

Off

Off

Off

Off

4.0

On

Off

Off

Off

3.8

Off

On

Off

Off

3.6

On

On

Off

Off

3.4

Off

Off

On

Off

3.2

On

Off

On

Off

3.0

Off

On

On

Off

2.8

On

On

On

Off

2.6

Off

Off

Off

On

2.4

On

Off

Off

On

2.2

Off

On

Off

On

2.0

On

On

Off

On

1.8

Off

Off

On

On

1.6

On

Off

On

On

1.2

Off

On

On

On

0.8

On

On

On

On

0.4

Idel current settings,

DIP Setting 1 Setting 2 Setting 3 Setting 3
SW9 On 25% Off 50% On 70% Off 90%
SW10 On On Off Off

6. DIP Switch Seetings

Switch Settings Y2SA2
SW1 SW2 SW3 SW4 Micro Step Pulse/Round
Off Off Off Off 125 25000
On Off Off Off 100 20000
Off On Off Off 50 10000
On On Off Off 40 8000
Off Off On Off 25 5000
On Off On Off 20 4000
Off On On Off 10 2000
On On On Off 5 1000
Off Off Off On 128 25600
On Off Off On 64 12800
Off On Off On 32 6400
On On Off On 16 3200
Off Off On On 8 1600
On Off On On 4 800
Off On On On 2 400
On On On On 1 200

7. Other DIP Settings

DIP no. Function Description
SW13

Pulse Mode Selection

On: CW and CCW
Off: Pulse and Direction
SW14

Input Signal

Digital Filtering

On: 150kHz, suitable for low micro step settings Off: 2MHz, suitable for high micro step settings
SW15 Micro Step Interpolation

On: Micro Step Interpolation enabled, suggest to use when micro step is less then 8.
Off: Function disenabled.
SW16

Self Test

 On: motor will rotate at 1rpm/s for 1 round clockwise and 1 round back.
Off: Function disenabled.

8. Control Signals

Input signals descriptions as the followings,

Display Terminal name Function
STEP

Pulse signal

Receive 5-24V/NPN/PNP signal
DIR

Direction signal

Receive 5-24V/NPN/PNP signal
EN

Enable signal

 Receive 5-24V/NPN/PNP signal; EN no input, motor enable

9. Connections

Input connections:

Y2SA2 4.0A High Voltage Stepper Driver 2 Phase With Alarm Output 80-265AC Input

Input connections:

Y2SA2 4.0A High Voltage Stepper Driver 2 Phase With Alarm Output 80-265AC Input

10. Mechcanical Dimenssions


Y2SA2 4.0A High Voltage Stepper Driver 2 Phase With Alarm Output 80-265AC Input
