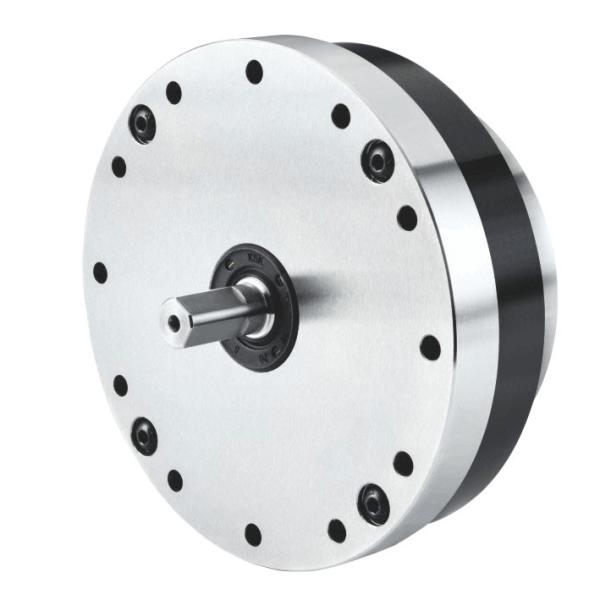

ZLSH32-I RATIO 50/80/100:1 High Precision Harmonic Gearbox For Robotics And Various Industrial Automation Applications

PRMCAS Harmonic Gear Reducers Features and Advantages as the followings,

High precision transmission: Harmonic reducer can provide high -precision transmission and location control. It is suitable for various NC machine tools, processing centers and other equipment, which can achieve precise motion control and improve processing accuracy.

High torque output: Harmonic reducer has high torque density, which can provide stable and reliable torque output during the processing of machine tools to ensure the stability and accuracy of the processing process.

High efficiency transmission: The harmonic reducer uses the principle of flexible gear transmission. It has high transmission efficiency, can reduce energy loss, and improve the energy utilization rate of machine tool equipment.

Compact structural: Harmonic reducer has a compact structural design, which can achieve efficient transmission in a limited space and save the installation space of machine tool equipment.

High speed stability: Harmonious reducer can maintain high stability and stability when running at high speed, and it is suitable for strict occasions such as high -speed cutting and high -speed processing.

Applications

Harmonic reducer is widely used in many automation fields, including but not limited to industrial robots, service robots, robotic arm, carton packaging machinery, medical machinery, measurement and analysis/test machine, large telescope, cable manufacturing equipment, precision packaging Machinery, meteorological equipment, advanced instrumentation, optical manufacturing equipment, semiconductor manufacturing devices, crystal manufacturing equipment, FPD manufacturing devices, communication devices, aerospace machines, CNC machine tools, radar and various satellite ground receiving equipment.

The harmonic reducer has played an important role in improving production efficiency and promoting industrial upgrades with its high -precision, high reliability, small size, light weight, and large loading capacity. Essence With the advancement of technology and the decline in cost, the application field of harmonic reducer is still expanding.

ZLSH32-50-I, reduction ratio 50:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

ZLSH32-80-I, reduction ratio 80:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

ZLSH32-100-I, reduction ratio 100:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

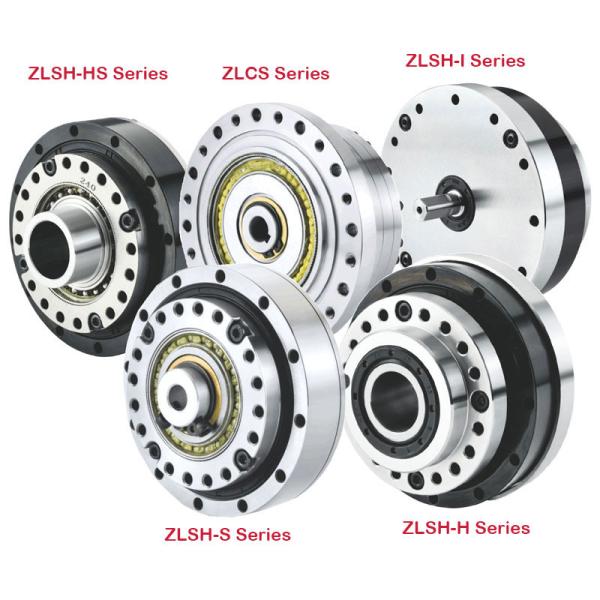

More Types of Harmonic Gearboxes Available

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.

Harmonic reducer is a mechanical transmission device that uses the principle of harmonic transmission. Its internal structure consists of a flexible skeleton and a rigid gear. The working principle of the harmonic reducer is to use the elastic deformation of the flexible skeleton and the meshing of the gear to achieve a high -precision input shaft speed to the deceleration and reverse transmission of the output shaft speed. Harmonic reduction is characterized by high transmission accuracy, low noise, fast response speed, and good reliability.

Harmony reducer plays an important role in the mechanical transmission system, including the following aspects:

Speed reduction: Harmonic reducer can reduce the high input speed rotating into low speed rotation through the principle of harmonic transmission, thereby reducing the speed of mechanical equipment.

Reverse transmission: Harmonic reducer has reverse transmission capabilities, which can achieve reverse transmission of the output shaft torque during the deceleration;

High precision transmission effect: The harmonic reducer uses the combined structure of flexible skeleton and rigid gear, which can achieve the accurate conversion of high precision input shaft speed to the output shaft speed;

Low noise effect: The internal structure of the harmonic reducer is simple and stable, which can effectively reduce noise and vibration.
