ZLSH20-I RATIO 50/100/120:1 High Precision Harmonic Gearbox For Robotics And Various Industrial Automation Applications

Harmonic gearboxes, also called harmonic reducers, are mainly composed of four basic components: wave generator, flexible gear, flexible bearing, and rigid gear. Harmonic transmission reducer is a kind of flexible bearing with a wave generator to produce controllable elastic deformation of the flexible gear and it transforms the force by meshing with rigid teeth.

PRMCAS Harmonic Gear Reducers Features and Advantages as the followings,

The transmission ratio is larger. The ratio of a single-stage harmonic gear transmission rate is 70 ~ 320:1, can reach up to 1,000:1 in certain harmonic reducers, and the multi-stage transmission speed ratio can reach more than 30,000:1.

High carrying capacity. This is because the number of teeth that meshing at the same time in the harmonic gear transmission can be more than 30% of the total number of teeth at the same time, and the soft wheels use high-intensity materials, and the tooth is connected with facial contact.

High transmission accuracy. This is because the number of teeth in the harmonic gear transmission at the same time and, the multi-tooth mesh has a mutual compensation effect on the error, so the transmission accuracy is higher. In the case of the same gear accuracy level, the transmission error is only about 1/4 of ordinary cylindrical gear transmission.

High drive efficiency and stable exercise. Because the soft wheel teeth moved a uniform radial movement during the transmission, even if the input speed is very high, the relative slip speed of the wheel teeth is still extremely low. So the wheel's teeth wear is small, high efficiency (can reach 69%~ 96%). Due to the entry and meshing, both sides of the gear participated in the work, so there was no impact, and the exercise was stable.

Simple structure, small number of parts, and convenient installation. There are only three basic components, and the input and output shaft coaxial rays, so the structure is simple and easy to install.

Small volume and light weight. Compared with the regular reducer, when the output torque is the same, the volume of the harmonic gear reducer can be reduced by 2/3, and the weight can be reduced by 1/2.

Suitable for closed space application. Using the flexible characteristics of soft wheels, this valuable advantage of rotation is incomparable to other transmission.

Applications

Harmonic reducer is widely used in many automation fields, including but not limited to industrial robots, service robots, robotic arm, carton packaging machinery, medical machinery, measurement and analysis/test machine, large telescope, cable manufacturing equipment, precision packaging Machinery, meteorological equipment, advanced instrumentation, optical manufacturing equipment, semiconductor manufacturing devices, crystal manufacturing equipment, FPD manufacturing devices, communication devices, aerospace machines, CNC machine tools, radar and various satellite ground receiving equipment.

The harmonic reducer has played an important role in improving production efficiency and promoting industrial upgrades with its high -precision, high reliability, small size, light weight, and large loading capacity. Essence With the advancement of technology and the decline in cost, the application field of harmonic reducer is still expanding.

ZLSH20-50-I, reduction ratio 50:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

ZLSH20-100-I, reduction ratio 100:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

ZLSH20-120-I, reduction ratio 120:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

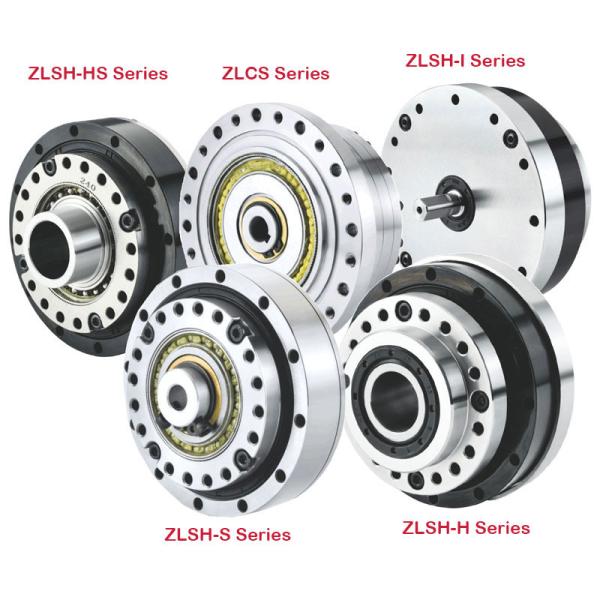

More Types of Harmonic Gearboxes Available
