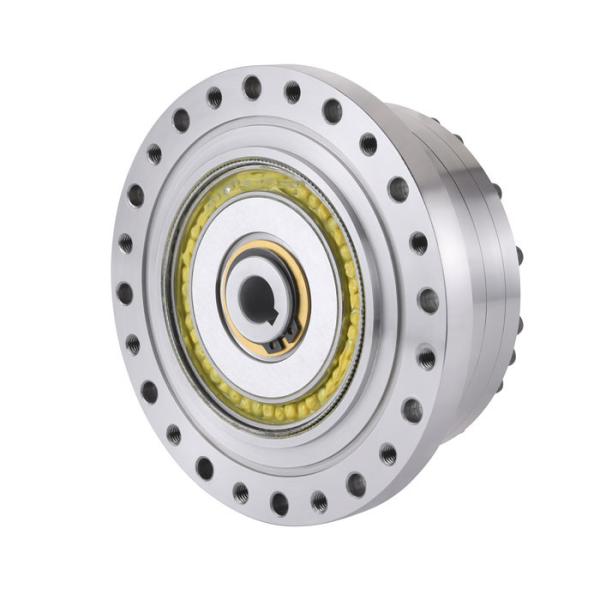

ZLCS32 RATIO 50/80/100:1 High Precision Harmonic Gearbox For Robotics And Various Industrial Automation Applications

Harmonic reducers, or harmonic gearboxes are mainly composed of four basic components: wave generator, flexible gear, flexible bearing, and rigid gear. Harmonic transmission reducer is a kind of flexible bearing with a wave generator to produce controllable elastic deformation of the flexible gear and it transforms the force by meshing with rigid teeth.

Products Advatanges

• High accuracy: Multi-teeth meshing at the same time at two 180 degrees symmetrical positions, so the impact of gear tooth spacing error and accumulation of tooth distance error on rotation accuracy is more average, which can obtain extremely high position accuracy and rotation accuracy.
• Large transmission ratio: The transmission ratio of a single -stage harmonic gear transmission can reach i = 30 ~ 500, and the structure is simple. The three basic parts on the coaxial axis can achieve a high deceleration ratio.
• High carrying capacity: In the harmonic transmission, the meshing of the teeth and the teeth is the face contact, and the number of teeth at the same time is large, so the unit area load is small, and the loading capacity is higher than that of other transmission forms.
• Small volume and light weight: Compared with ordinary gear devices, the volume and weight can be greatly reduced, achieving miniaturization and lightweight.
• High drive efficiency and long life.
• Small noise: For normal operation noise level all less than 60dB and life time no less than 14000 hours.

Industrial Applications

Harmony reducer is a flexible gear transmission device. Because of the advantages of small size, light weight, and large bearing capacity, it is widely used in various automation fields.

• Aerospace. Harmonic reducer plays an important role in the field of aerospace and is used to meet the requirements of high precision and reliability.

• Energy and navigation. Equipment in these areas often requires a large amount of force and torque, and harmonic decelerations are suitable for these applications due to their high carrying capacity.

• Industrial robot and robotic arm. Harmony reducer improves exercise accuracy and control in these fields, especially in the servo system that requires high precision and high dynamic performance.

• Medical and scientific instruments. These areas have strict requirements on the accuracy and reliability of equipment, and harmonic reducer can provide stable and accurate motion control.

• Semiconductor and electronic equipment manufacturing. These areas have high requirements for the accuracy and micro-operation of the equipment, and the harmonic reducer can provide high transmission accuracy and delicate control.

• Petrochemical, textile, agricultural machinery and other fields. Equipment in these areas usually requires complex motion and force, and the flexibility and strength of harmonic reducer is very applicable.

In general, the application of harmonic reducers is very wide. They play a key role.

ZLCS32-50, reduction ratio 50:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

ZLCS32-80, reduction ratio 80:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

ZLCS32-100, reduction ratio 100:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

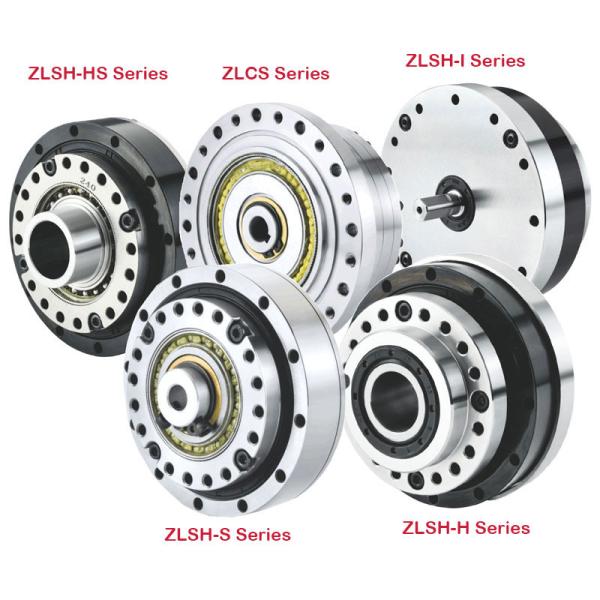

More Types of Harmonic Gearboxes Available

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.
