ZLCS14 RATIO 50:1 High Precision Harmonic Gearbox For Robotics And Various Industrial Automation Applications

Harmonic reducers, or harmonic gearboxes are mainly composed of four basic components: wave generator, flexible gear, flexible bearing, and rigid gear. Harmonic transmission reducer is a kind of flexible bearing with a wave generator to produce controllable elastic deformation of the flexible gear and it transforms the force by meshing with rigid teeth.

PRMCAS Harmonic Gear Reducers are characterized as the followings,

• High accuracy: Multi-teeth meshing at the same time at two 180 degrees symmetrical positions, so the impact of gear tooth spacing error and accumulation of tooth distance error on rotation accuracy is more average, which can obtain extremely high position accuracy and rotation accuracy.
• Large transmission ratio: The transmission ratio of a single -stage harmonic gear transmission can reach i = 30 ~ 500, and the structure is simple. The three basic parts on the coaxial axis can achieve a high deceleration ratio.
• High carrying capacity: In the harmonic transmission, the meshing of the teeth and the teeth is the face contact, and the number of teeth at the same time is large, so the unit area load is small, and the loading capacity is higher than that of other transmission forms.
• Small volume and lightweight: Compared with ordinary gear devices, the volume and weight can be greatly reduced, achieving miniaturization and lightweight.
• High drive efficiency and long life.
• Small noise: For normal operation noise level all less than 60dB and life time no less than 14000 hours.

Applications:
Industrial robot. Harmonic reducer is used to connect motors and execution agencies to provide high -precision and stable motion control.
Service robot. In the fields of medical care, care and logistics, harmonic reducer is used to improve the exercise accuracy and reliability of robots.
Robotic arm. Harmonic reducer is used for end actuators to achieve fine operation.
Precision processing field. Harmonic reducer is used to control speed and provide large torque to ensure the stability of the equipment and high -precision processing molding.
The field of aerospace. Harmonic reducer is used to ensure the accuracy and maneuverability of satellite transition, as well as the movement of the landing gear and the steering gear.
The field of medical device. The harmonic reducer is used to improve the stability and accuracy of the arm movement of the surgical robot, as well as the fields of blood transport equipment, monitoring and medical machinery. The harmonic reducer plays an important role in modern industry and automation systems with its high -precision, high torque, small volume and low noise systems with its high -precision, high torque, small volume and low noise.
Others, such as carton packaging machinery, medical machinery, measurement/analysis/test machine, large telescope, meteorological equipment, advanced instrumentation, optical manufacturing equipment, semiconductor manufacturing devices, crystal manufacturing equipment, FPD manufacturing devices, communication devices, aerospace machines, aerospace machines , CNC machine tools, radar and other precision transmission systems such as satellite ground receiving equipment.

ZLCS14-50, reduction ratio 50:1 harmonic gear reducer mechanical drawings and main technical specifications as bellow,

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

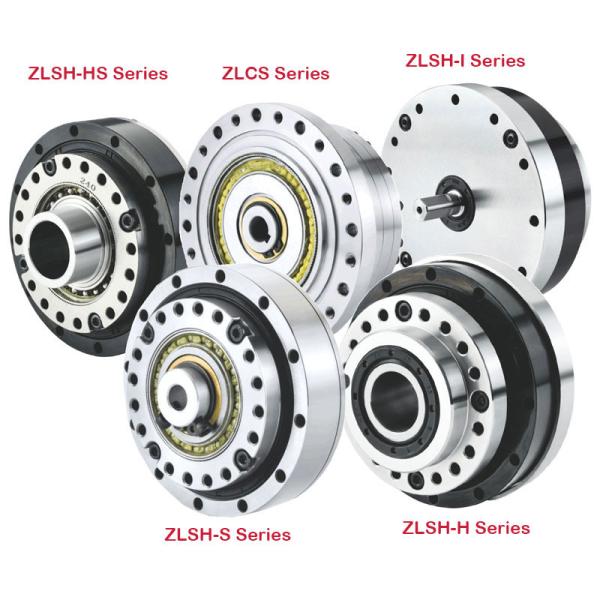

More Types of Harmonic Gearboxes Available
